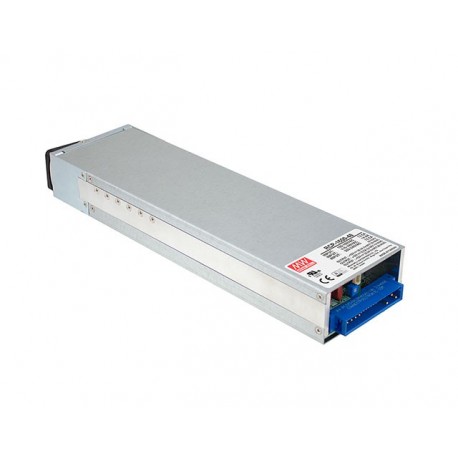

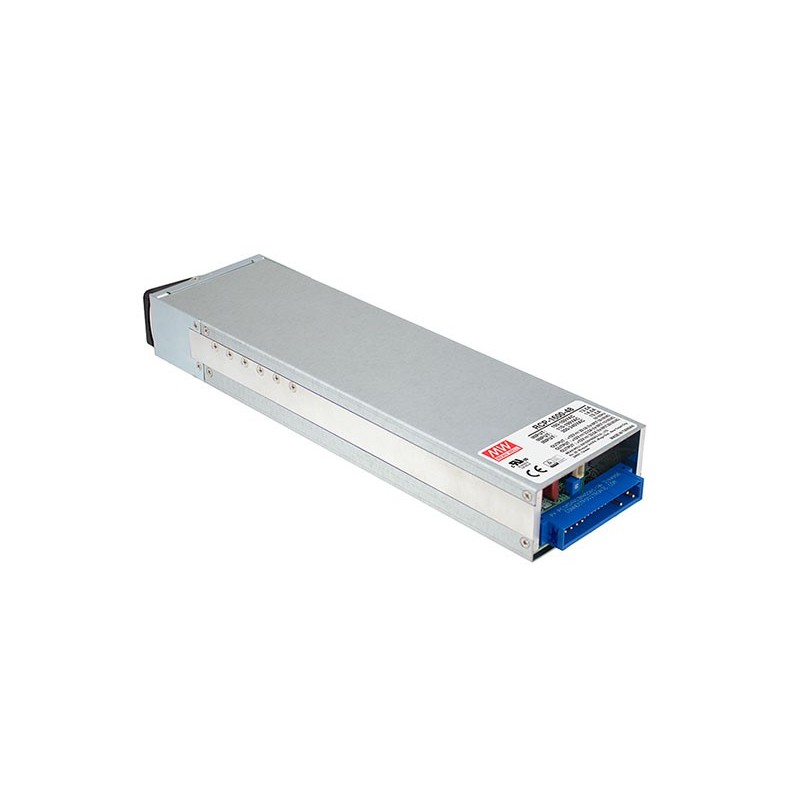

RCP-1600-12
MEANWELL
1
Available Ship on today
AC-DC 19 inch rack power supply with PFC, Output 12VDC / 125A, 1U profile, Current sharing up to 8KW, Hot-swap, PMBus protocol
RACK > RCP
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | CPR-1600-12 |
---|---|
Long Description | Power supply for 19" Rack programmable via ITwoC and PMBus. FormatRack 19". Range of universal input90-264vac.47-63Hz. Output voltage12vdc.Adjustable by potentiometer (to 11.5-15vdc), or by using external resistance from 40% to 125% or configurable by protocol ITwoC. Output intensity125A. Range of output current 0-125A according to demand load. Efficiency typical:88.5 per cent. Paralelizable up to 3 units with sharing of active current and diode mosfet protection in the Rack RHP-1U. Hot Swap. Change in hot. Factor corrector, power>0,97to 230vac at full load. Remote on / off. Auxiliary output and 5V 0.3 A. 3-color LED charging status indicator. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:300 x 85 x 41. 5 years of warranty. Manufacturer: MEAN WELL. The power supplies of the series PCR are designed to install in the Rack RHP-1U supports up to 3 sources RCP-1600. These sources allow you to configure the output current through RTwoC and PMBus, and optionally via CANBus. Can be connected in parallel up to 3 sources protected by a diode Mosfet for the protection of the current investment. They have a wide range of temperature from -30ºC up to +70ºC. The tension can also be adjusted via a potentiometer. Have a high efficiency and auxiliary output of 5V. The function Hot-Swap or hot-swap allows us to replace any damaged equipment without having to stop the system, or to increase the power at any time. |
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | 19"Rack |
Subformato | 1U |
Applications | Industrial, Telecommunications |
Series | CPR-1600 |
State | Recommended Model |
Warranty (Years) | 5,00 |
Height (mm) | Forty one |
Width (mm) | Eighty five |
Long/Background | Three hundred |
Type of Entry CA | Single-phase |
AC input Min | 90,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Pin |
Output voltage | 12,00 |
Power (W) | 1.500,00 |
Peak Power (W) | One thousand five hundred |
Output connector | Screw-Type |
Fan | Yes |
Alarms | Over Temperature, mains Failure, Output OK |
Interface | I2C, PMBus |
Isolation (V) | 3.000,00 |
Approvals | CE, UL |
