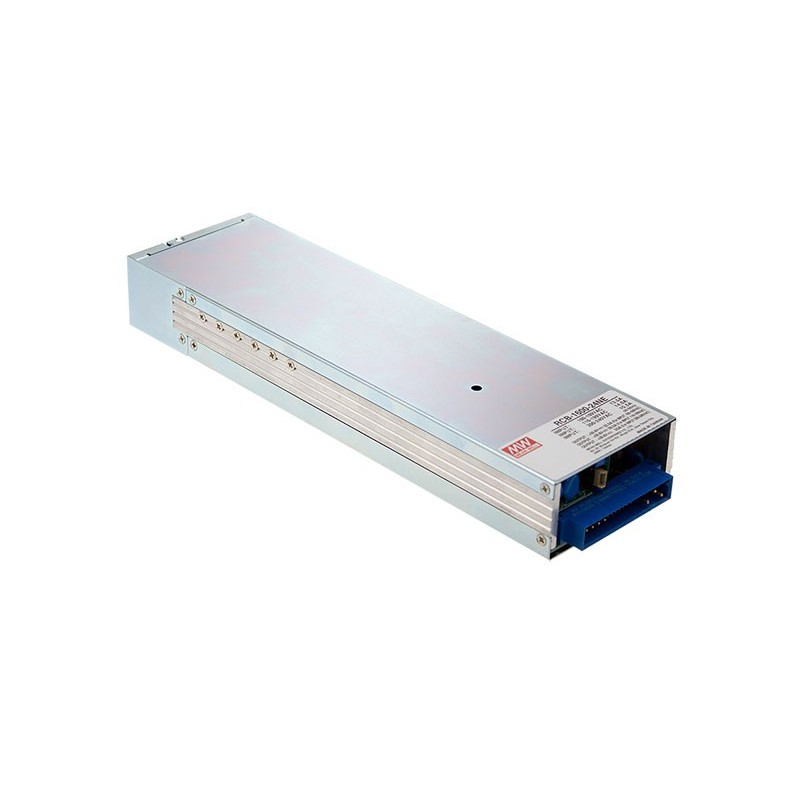

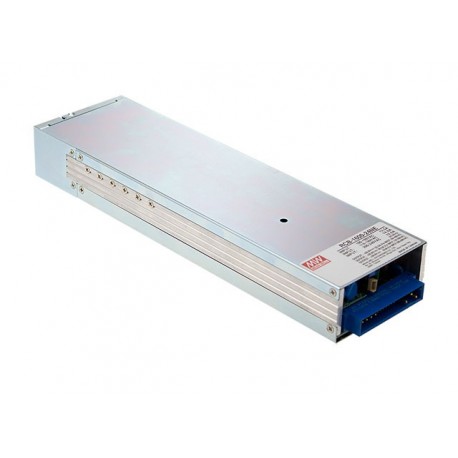

RCB-1600-48 MEANWELL 1600W Rack Mountable Front End Battery Charger, 48V / 27.5A, PMBus protocol
RCB-1600-48
MEANWELL
1600W Rack Mountable Front End Battery Charger, 48V / 27.5A, PMBus protocol
CHARGERS
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | RCB-1600-48 |
|---|---|
| Long Description | Battery charger for 19" Rack programmable via ITwoC and PMBus. Load in 3 stages. FormatRack 19". Range of universal input90-264vac. 47-63Hz. Absorption voltage57,6 Vdc. Float voltage55,2 Vdc. Adjustable by potentiometer (47,5-58,8 Vcc). ProgrammableITwoC and PMBusfrom 75% to 125%. Intensity of load27,5 To. ProgrammableITwoC and PMBusfrom 20% to 100%. Power:1584W. Type of batteries:Gel, AGM, wet, Lithium-Iron and Lithium-Magnesium. Battery capacity:90-270Ah. Efficiency typical:93%. Paralelizable up to 5 units with sharing of active current and diode mosfet protection in the Rack RHP-1U. Hot Swapt. Change in hot. Factor corrector, power>0,97to 230vac at full load. Remote on / off. Auxiliary output and 5V 0.3 A. 3-color LED charging status indicator. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:300 x 85 x 41. 5 years of warranty. Manufacturer: MEAN WELL. The chargers of the series RCB-1600 are designed to install in the Rack RHP-1U supports up to 5 chargers CPR-1600. These chargers allow you to charge lead acid batteries, Gel, AGM, wet, Lithium-Iron and Lithium-Manganese with possibility to configure the load curves by using ITwoC and PMBus, and optionally via CANBus. We can schedule the tensions of absorption, charge current and float voltage to suit to our batteries. Can be connected in parallel up to 5 chargers protected between them using a diode, Mosfet protection of the current investment. They have a wide range of temperature from -30ºC up to +70ºC. The tension can also be adjusted via a potentiometer. Have a high efficiency and auxiliary output of 5V. Hot Swapt or hot-swap allows us to replace any damaged equipment without having to stop the system, or to increase the power at any time. The chargers of the series RCB-1600 offers the maximum flexibility to adapt to any type of batteries. |
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | Chargers |
| Format | 19"Rack |
| Subformato | 1U |
| Applications | Industrial, Telecommunications |
| Series | RCB-1600 |
| State | Recommended Model |
| Warranty (Years) | 5,00 |
| Height (mm) | 41.00 |
| Width (mm) | 85.00 |
| Long/Background | 300.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Quick Connector |
| Output 1 | +48 |
| Power (W) | 1.584,00 |
| Battery type | AGM, Wet, Li-ion |
| Oh | 90, 100, 105, 110, 120, 125, 130, 135, 140, 150, 160, 170, 175, 180, 190, 200, 210, 240, 250, 270 |
| Charge stages | Three |
| Output connector | Quick Connector |
| Fan | Yes |
| Alarms | Over Temperature, mains Failure, Output OK |
| Interface | I2C, PMBus |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
