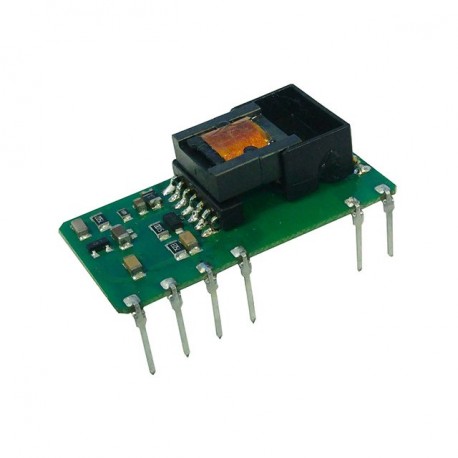

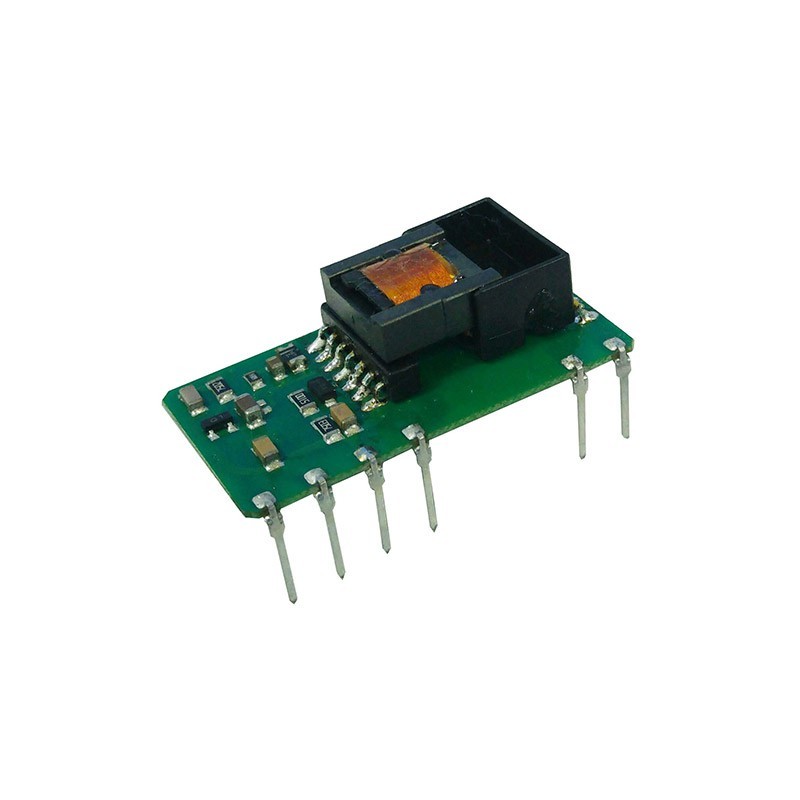

LS03-16B09SS-F MEANWELL AC-DC Switching power supply for PCB, Input: 90-528VCA, Output: 9VCC, 0,33A.Power: 3W
LS03-16B09SS-F
MEANWELL
AC-DC Switching power supply for PCB, Input: 90-528VCA, Output: 9VCC, 0,33A.Power: 3W
Home > MEANWELL
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | LS03-16B09SS-F |
|---|---|
| Long Description | Switching Power supply for Printed Circuit board. Range of Universal Input90-528Vca47-63Hz. Output voltage9Vcc. Output intensity0,33 A.Range of output current 0-0,33 according To the demand load. Power:3W. Isolation input-output 4000Vca. Efficiency: 70%. Working temperature: from-40up+85 ° C. See the curve of drift according to the temperature in the technical data sheet. Dimensions (Length x Width x Height) [mm]:44,5 x 13 x 24. 3 years warranty. Manufacturer: MORNSUN. Certificates CE,UL and RoHS. The series LS03-16BxxSS(-F) are sources of compact size to integrate on-board by soldering its pins into the holes of the PCB. It has a compact size, range, universal input, low consumption without load, high efficiency and reliability. It has protection against over loads, short circuits and over-voltage output. It is necessary to add external components as recommended in the technical data sheet to comply with the requirements of electromagnetic compatibility. We also need to connect a capacitor C1 between pins 7 and 10 for the font to work correctly. Please see the datasheet in the section "ATTACHMENTS". |
| Country of Origin | China |
| Manufacturer | MORNSUN |
| Product type | Power supply AC/DC |
| Format | For Printed Circuit |
| Subformato | SIP |
| Applications | Industrial, Instrumentation, Telecommunications |
| Series | LS03-16BxxSS (-F) |
| State | New |
| Warranty (Years) | 3,00 |
| Height (mm) | Twenty four |
| Width (mm) | Thirteen |
| Long/Background | 44.5 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 528,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Pin |
| Output voltage | 12,00 |
| Power (W) | 3,00 |
| Peak Power (W) | Three |
| Output connector | Pin |
| Isolation (V) | 4.000,00 |
| Approvals | CE, UL |
