MEANWELLLRS-150-24OL-CERT MEANWELL AC-DC Single output enclosed power supply, Input: 85-132Vca/170-264VCA, Output: 2..

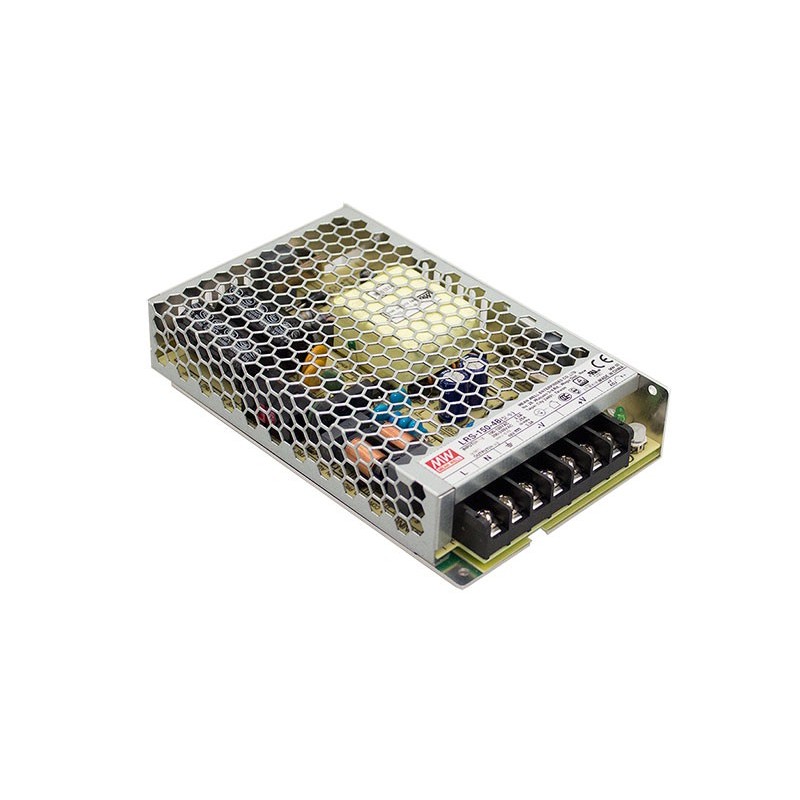

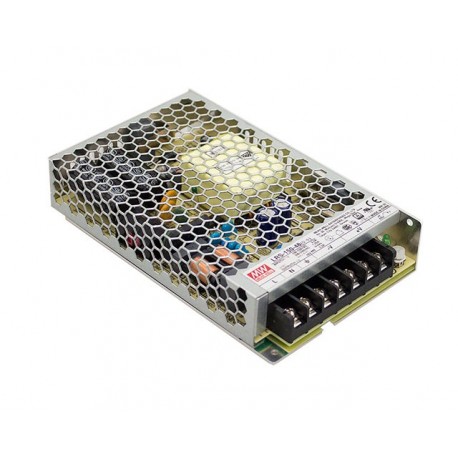

MEANWELL LRS-150-24OL-CERT - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LRS-150-24OL-CERT MEANWELL AC-DC Single output enclosed power supply, Input: 85-132Vca/170-264VCA, Output: 2..

Code: LRS-150-24OL-CERT

Manufacturer: MEANWELL

Description:

AC-DC Single output enclosed power supply, Input: 85-132Vca/170-264VCA, Output: 24VDC, 6,5A. 156W

Categories:

  • MEANWELL

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 19,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1-2 Days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Name LRS-150-24OL-CERT
Long Description

Switch mode power supply.

Format in box grid.

Input range selectable by switch,85-132Vca/170-264vac. 47-63Hz.

Output voltage24vdc. Adjustable by potentiometer (21,6-28,8 Vdc).

Output intensity6.5 To. Range of output current 0-6,5 according To the demand load.

Power:156W.

Dimensions (Length x Width x Height) [mm]:159 x 97 x 30.

3 years warranty.

Manufacturer: MEAN WELL.

EXACT EQUIVALENT OF THE MODEL LRS-150-24. Includes certificates TR-CU (Russia), BIS (India-pending), RCM Australia and KCC (Korea).
Country of Origin China
Stock Yes
Manufacturer MEAN WELL
Product type Power supply AC/DC
Format Box
Subformato Grid
Applications Appliances, Industrial, Telecommunication
Series LRS-150-24
State Recommended Model
Warranty (Years) 3,00
Height (mm) 30.00
Width (mm) 97.00
Long/Background 159.00
Type of Entry CA Single-phase
AC input Min 85,00
AC input Max 264,00
Input frequency 50 Hz, 60 Hz
Input connector Screw-Type
Output voltage 24,00
Power (W) 156,00
Peak Power (W) One hundred fifty six
Output connector Screw-Type
Isolation (V) 3.750,00
Approvals CCC, CE, KCC, RCM, TUV, UL
