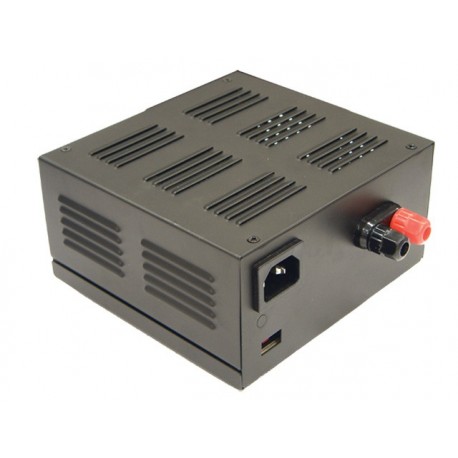

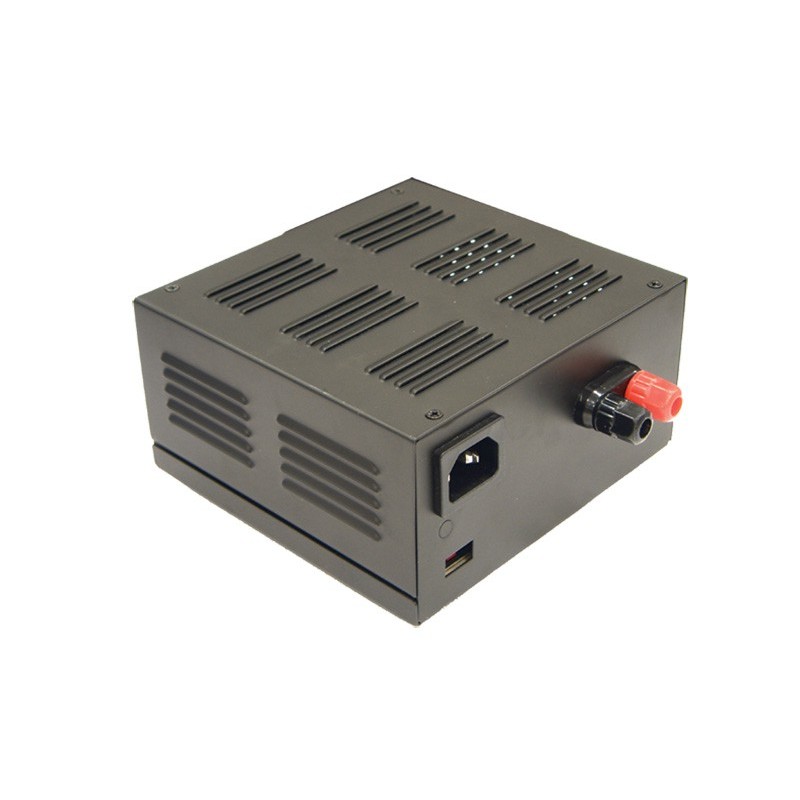

ESC-120-54 MEANWELL AC-DC Desktop type charger with 3 pin IEC320-C14 input socket, Output 54VDC / 2A with ba..
ESC-120-54
MEANWELL
AC-DC Desktop type charger with 3 pin IEC320-C14 input socket, Output 54VDC / 2A with banana plug, Under/Over voltage and polarity protection, Cooling by built-in DC fan
CHARGERS > ESC
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | ESC-120-54 |
|---|---|
| Long Description | Battery charger for Gel, AGM and wet. Load in 2 stages. Format metal box. Input range selectable by switch,88-132Vca/176-264vac. 47-63Hz. Absorption voltage and float54Vcc. Adjustable by potentiometer(48-56Vcc) . Intensity of load2A. Power:108W. Type of batteries:Gel, AGM and wet. Battery capacity:30-80Ah. Efficiency typical: 84%. 3 colors LED Indicator of correct operation. Working temperature: from-10up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:150 x 140 x 86. 2 years of warranty. Manufacturer: MEAN WELL. The chargers of the series ESC are chargers of lead-acid battery, Gel, AGM and wet with load in two stages. They have a system of connection of output cables quickly to be able to connect the batteries quickly.
|
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | Chargers |
| Format | Desktop |
| Subformato | Grid |
| Applications | Industrial, Solar, Telecommunications |
| Series | ESC-120-C |
| State | Do not Use for New Designs |
| Warranty (Years) | 2,00 |
| Height (mm) | 86.00 |
| Width (mm) | 140.00 |
| Long/Background | 150.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 88,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | IEC 320-C14 |
| Output 1 | +48 |
| Power (W) | 108,00 |
| Battery type | Lead, AGM, Wet |
| Charge stages | Two |
| Output connector | Quick Connector |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
