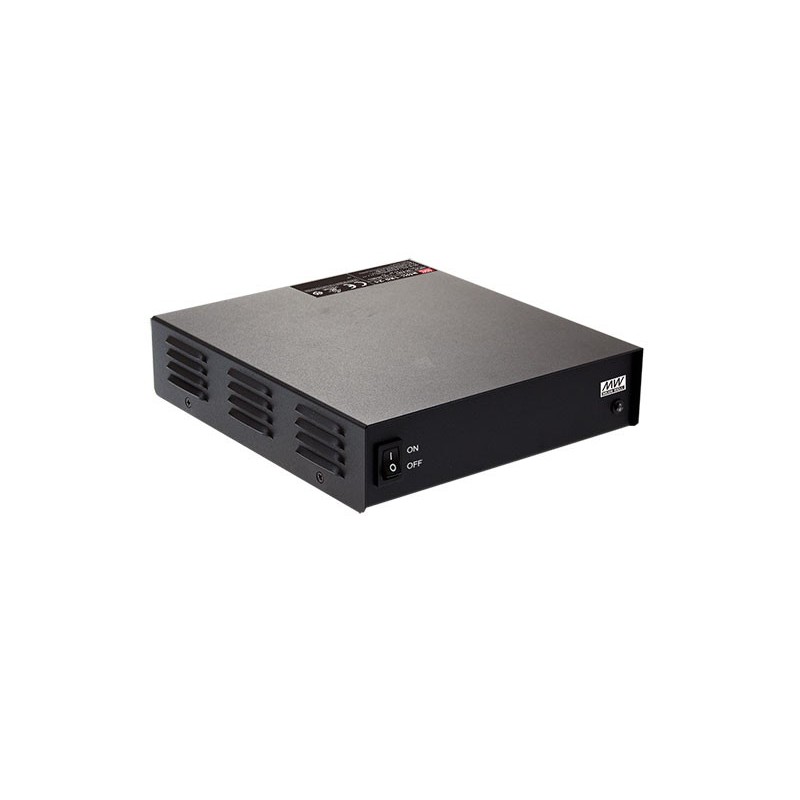

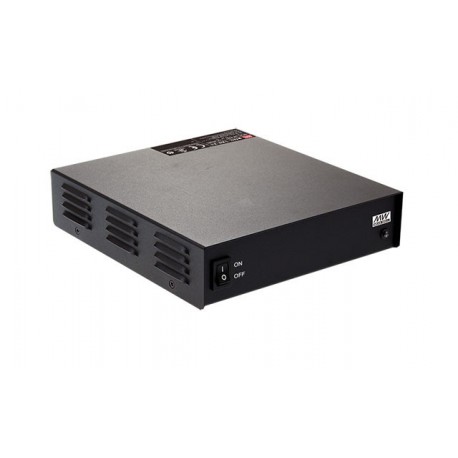

ENC-120-48 MEANWELL AC-DC Single output battery charger with PFC, 3 stage charging, Universal AC input, Outp..

Battery charger for Gel, AGM and wet with load curves programmable.

Load in 3 stages.

Format metal box.

Range of universal input90-264vac. 47-63Hz.

Absorption voltage57,6 Vdc. Programmable with the SBP-001.

Float voltage55,2 Vdc. Programmable with the SBP-001.

Intensity of load2A. Programmable with the SBP-001.

Power:115,2 W.

Type of batteries:Gel, AGM, wet and Lithium-Iron and Lithium-Manganese.

Battery capacity:10-20Ah.

Efficiency typical:Total of 90.5%.

The voltages and current load as well as the temperature compensation can be programmed with the SBP-001.

3 Curves of load presets for GEL, AGM and wet and a load curve configurable. Selectable by micro-switch.

Factor corrector, power>0,95to 230vac at full load.

2-colour LED charging status indicator.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:192 x 178 x 45.5.

3 years of warranty.

Manufacturer: MEAN WELL.

The chargers of the series ENC are chargers of lead-acid battery, Gel, AGM, wet, Lithium-Iron and Lithium-Manganese with possibility to configure the load curves by using the controller SBP-001. You can select 4 curves for different loads by a micro-switch (dip-switch) having predefined load curves for Gel batteries, AGM and wet, and a curve configurable. Also allow you to compensate for the load according to the temperature of the batteries. We can schedule the tensions of absorption, charge current and float voltage as well as temperature compensation to match our batteries. They have a wide range of temperature from -30ºC up to +70ºC. Designed according to the standard for vehicles allow easy integration into flat spaces but can also be used for any other type of application.
