ESP-120-27
MEANWELL
1
Available Ship on today

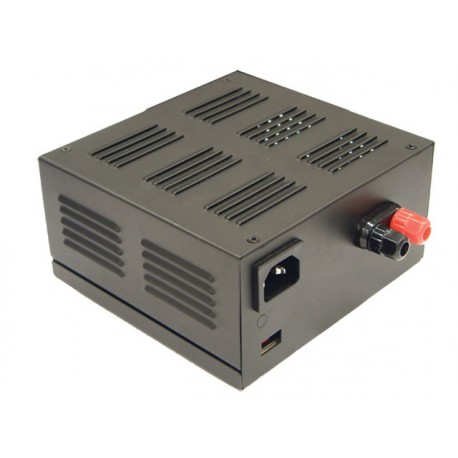

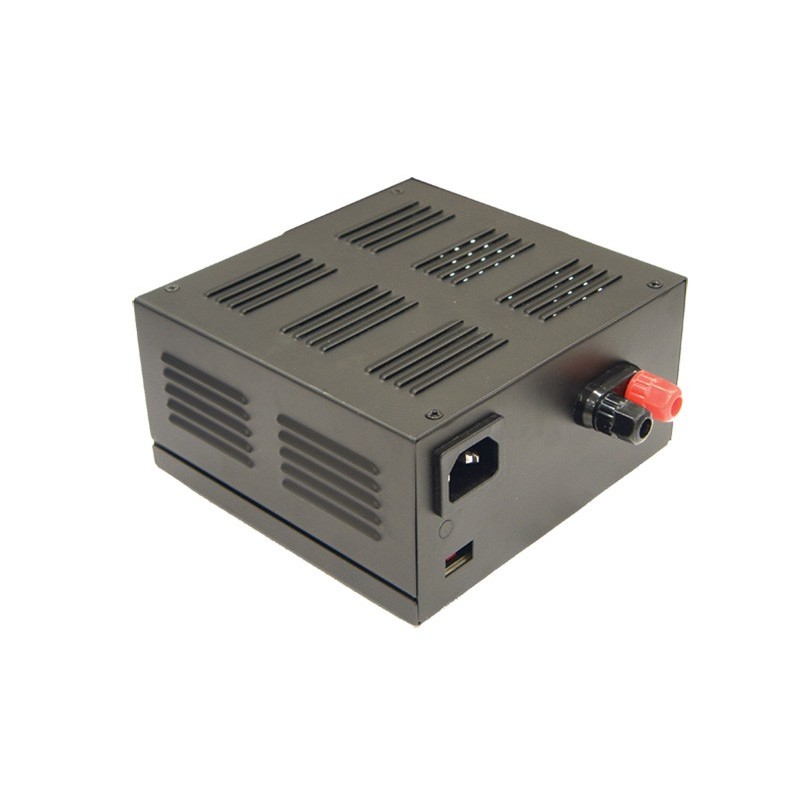

AC-DC Desktop type power supply with 3 pin IEC320-C14 input socket, Output 27VDC / 4A with banana plug, Cooling by built-in DC fan
CHARGERS > ESP
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | ESP-120-27 |
---|---|
Long Description | Power supply formatdesktop. Format plastic box. Range of universal input88-264vac47-63Hz. Output voltage27Vcc.Range of voltage output 24-30V according to demand load. Output intensity4A. Range of output current 0-4A according to demand load. Power:108W. Efficiency typical: 83%. 3 colors LED Indicator of correct operation. Working temperature: from-10up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:150 x 140 x 86. 2 years of warranty. Manufacturer: MEAN WELL. The ESP series are some of the sources switched in format desktop with input connector europeanIEC320-C14and output connector screw.
|
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Desktop |
Subformato | Grid |
Applications | Industrial, Telecommunications |
Series | ESP-120-C |
State | Do not Use for New Designs |
Warranty (Years) | 2,00 |
Height (mm) | 86.00 |
Width (mm) | 140.00 |
Long/Background | 150.00 |
Type of Entry CA | Single-phase |
AC input Min | 88,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | IEC 320-C14 |
Output voltage | 27,00 |
Power (W) | 108,00 |
Peak Power (W) | One hundred eight |
Output connector | Screw-Type |
Isolation (V) | 3.000,00 |
Approvals | CE, UL |
