MEANWELLCHARGERSENP-120-24 MEANWELL AC-DC Single output power supply with PFC, 3 stage charging, Universal AC input, Output ..

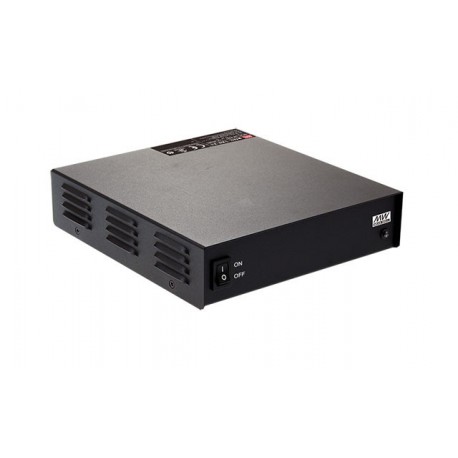

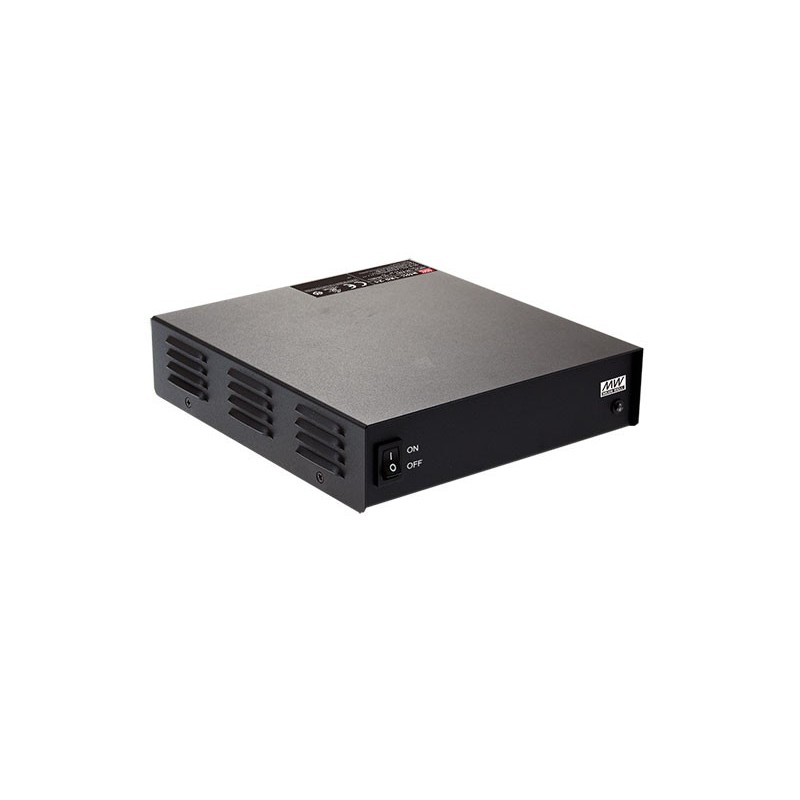

MEANWELL ENP-120-24 ENP-120-24 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ENP-120-24 MEANWELL AC-DC Single output power supply with PFC, 3 stage charging, Universal AC input, Output ..

Reference: ENP-120-24

Manufacturer: MEANWELL

Description:

AC-DC Single output power supply with PFC, 3 stage charging, Universal AC input, Output 27.6VDC / 5.4A

Categories:

  • MEANWELL > CHARGERS

Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 62,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

NameENP-120-24
Long Description

Power supply format desktop with PFC function.

Format plastic box.

Range of universal input90-264vac47-63Hz.

Output voltage27,6 Vdc.Range of voltage output of 23,5-30V according to demand load.

Output intensity4.3 To. Range of output current 0-4,3 according To the demands of the load.

Power:119W.

Efficiency typical:91%.(Level Vl).

Factor corrector of a power >0,98 at 230vac full load.

Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:192 x 178 x 45.5.

3 years of warranty.

Manufacturer: MEAN WELL.

The series ENP are sources switched in format desktop with input connector europeanIEC320-C14and output connector screw.

Country of OriginChina
ManufacturerMEAN WELL
Product typePower supply AC/DC
FormatDesktop
ApplicationsIndustrial, Telecommunications
SeriesENP-120
Warranty (Years)3,00
Height (mm)45.5
Width (mm)One hundred seventy eight
Long/BackgroundOne hundred ninety two
Type of Entry CASingle-phase
AC input Min90,00
AC input Max264,00
Input frequency50 Hz, 60 Hz
Input connectorIEC 320-C14
Output voltage27,60
Power (W)119,00
Peak Power (W)148.5
Output connectorScrew-Type
FanYes
Isolation (V)3.000,00
ApprovalsCE, UL
