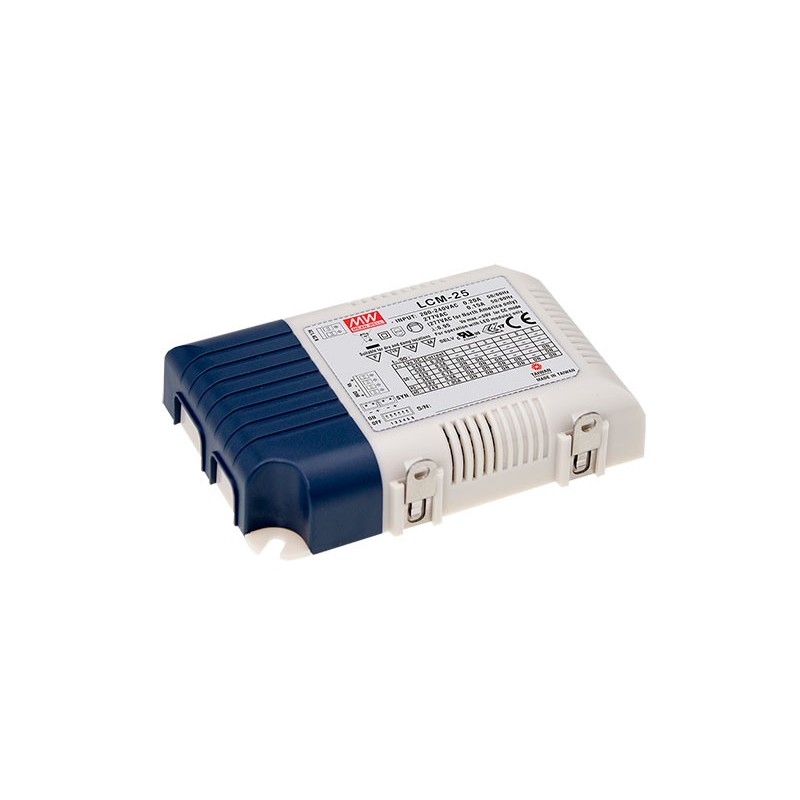

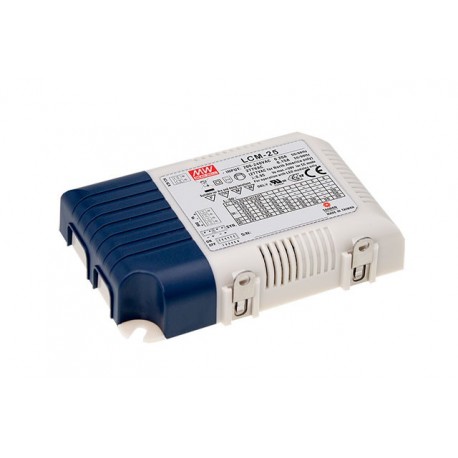

LCM-25 MEANWELL AC-DC Multi-Stage Output LED driver Active PFC, Output 0.35A/0.6A/0.7A/0.9A/1.05A, Dimming 0..

LED driver dimmable.

Specially designed for powering LEDs directly in a steady stream.

Format in plastic boxIP20.

Input range180-277Vca47-63Hz.

Current output selectable by micro-switch350, 500, 600, 700, 900 or 1050mA.

Efficiency typical:86%.

Regulation0% to 100% of the output intensity with a slider0-10V or 1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V, do not shut down the output.

Synchronization: we can sync up10 unitsvia the wires LCM-xxx-SYNC25 in such a way that by regulating a source other do the same regulation without the need to be connected to the regulator 1-10/0-10V.

Input class II without grounding.

Factor corrector, power>0.94to 230vac at full load.

Consumption without load <0.5 W.

Operating temperature range of caseTcfrom-30ºCup+85ºC.

Dimensions (Length x Width x Height):105 x 68 x 23mm.

3 years of warranty.

Manufacturer: MEAN WELL.

This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.

This source works on a Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.Be sure to adjust the output current desired using the selector current. For more information please see the datasheet in the section attachments.

With plastic housing, designed for applications of LED lighting and architectural. Suitable for indoor lighting, offices, LED panels.Low ripple current, no flicker (flicker-free).

Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output.

Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:

MEAN WELL DAP-04S01 (compatible with any push button normally open).

SIMON: 75317

BJC: 5TC8 425

LEGRAND: 0784 04

ABB- "NIESSEN": N2260.9

SIEMENS: 5TC8424

EFAPEL: Model 21210

LED BOX: Model LD1160188

OSRAM: Model DIM MCU

JUNG: Model 240-10

We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver.
