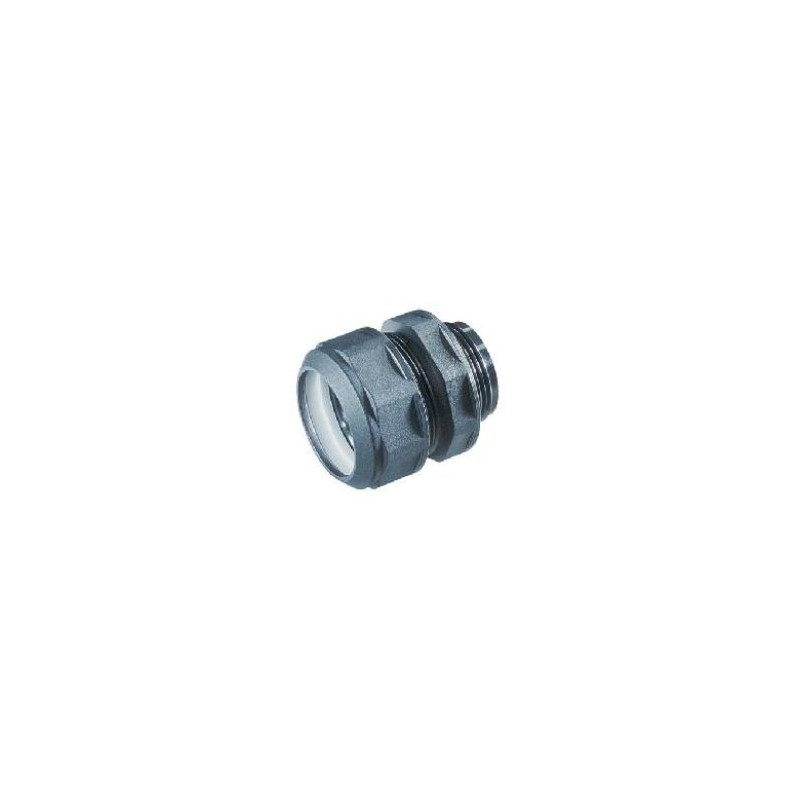

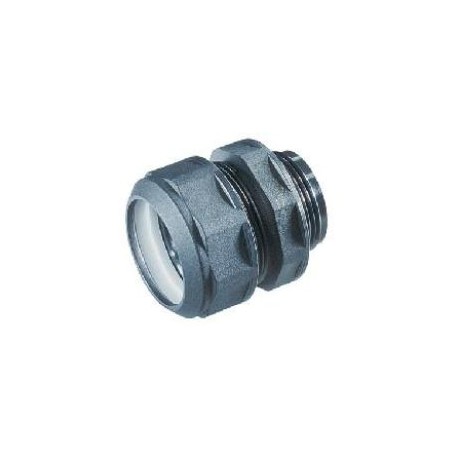

83541220 MURRPLASTIK Conduits and fitting systems Type EH/S Metric plastic thread

Name: 83541220 MURRPLASTIK Conduits and fitting systems Type EH/S Metric plastic thread
Brand: MURRPLASTIK
SKU: MUR83541220
Price: 113.27 USD
Availability: OutOfStock

0/5 - 0 Opiniones

Reference: 83541220

Manufacturer: MURRPLASTIK

Units per package:: 50

Description:

Conduits and fitting systems Type EH/S Metric plastic thread

EH/S M20X1,5/16 m-tec, gr

Type EH/S

More details

Categories:

Corrugated pipes and fittings

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Guarantee, repair and return.

Total: $4,376.80

Unit price: $87.54

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers. Login or register and prices will be updated.

Calculate price by quantity

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products

Best sellers

▲

More info

▲

The EH/S conduit fittings are made of specially modified polyamide and polyoxymethylene. The materials are halogen, phosphor and cadmium-free.

The EH/S conduit fittings feature the following advantages:

No parts can get lost, delivered completely assembled

Cost-effective solution

Integrated clamping ring ensures high tear-out strength

Fitting suitable for the EVK, EL and ELS cable protection conduit.

Halogen-free

-40°C – 110°C, short term 140°C

acc. to UL94 V0

IP 65

EU railway approval

	Type	Order No.	Colour	Connecting thread	Suitable for Murrflex EL	Suitable for Murrflex ELS	Suitable for Murrflex EVK	EH mm	GL mm	SW 1 mm	MOQ qty.
Metric plastic thread
	EH/S M12X1.5/9	83541252	Black	M12x1,5	09	09	07/E	26	13	19	50
	EH/S M12X1.5/11	83541256	Black	M12x1,5	11	11	09/E	26	13	22	50
	EH/S M16X1.5/9	83541254	Black	M16x1,5	09	09	07/E	26	13	19	50
	EH/S M16X1.5/11	83541258	Black	M16x1,5	11	11	09/E	26	13	22	50
	EH/S M20X1.5/13	83541259	Black	M20x1,5	13	13	11	26	14	27	50
	EH/S M20X1.5/16	83541260	Black	M20x1,5	16	16	11	26	14	27	50
	EH/S M25X1.5/21	83541262	Black	M25x1,5	21	21	21/E	33	10	37	50
	EH/S M32X1.5/29	83541264	Black	M32x1,5	29	29	29/E	33	10	45	25
	EH/S M40X1.5/36	83541266	Black	M40x1,5	36	36	36/E	44	15	55	25
	EH/S M50X1.5/48	83541268	Black	M50x1,5	48	48	42	50	17	65	10
	EH/S M12X1.5/9	83541212	Grey	M12x1,5	09	09	07/E	26	13	19	50
	EH/S M12X1.5/11	83541216	Grey	M12x1,5	11	11	09/E	26	13	22	50
	EH/S M16X1.5/9	83541214	Grey	M16x1,5	09	09	07/E	26	13	19	50
	EH/S M16X1.5/11	83541218	Grey	M16x1,5	11	11	09/E	26	13	22	50
	EH/S M20X1.5/13	83541219	Grey	M20x1,5	13	13	11	26	14	27	50
	EH/S M20X1.5/16	83541220	Grey	M20x1,5	16	16	11	26	14	27	50
	EH/S M25X1.5/21	83541222	Grey	M25x1,5	21	21	21/E	33	10	37	50
	EH/S M32X1.5/29	83541224	Grey	M32x1,5	29	29	29/E	33	10	45	25
	EH/S M40X1.5/36	83541226	Grey	M40x1,5	36	36	36/E	44	15	55	25
	EH/S M50X1.5/48	83541228	Grey	M50x1,5	48	48	42	50	17	65	10
Pg plastic threading
	EH/S PG 07	83541050	Black	Pg 07		07		26	8	19	50
	EH/S PG 07/09	83541068	Black	Pg 07	09	09		26	8	19	50
	EH/S PG 09	83541052	Black	Pg 09	09	09	07/E	26	8	19	50
	EH/S PG 09/11	83541070	Black	Pg 09	11	11	09/E	26	8	22	50
	EH/S PG 09/13	83541072	Black	Pg 09	13	13	11/E	26	8	27	50
	EH/S PG 09/16	83541074	Black	Pg 09	16	16	13/E	26	8	27	50
	EH/S PG 11/09	83541076	Black	Pg 11	09	09	07/E	26	8	19	50
	EH/S PG 11	83541054	Black	Pg 11	11	11	09/E	26	8	22	50
	EH/S PG 11/13	83541078	Black	Pg 11	13	13	11/E	26	8	27	50
	EH/S PG 11/16	83541080	Black	Pg 11	16	16	13/E	26	8	27	50
	EH/S PG 13.5	83541056	Black	Pg 13.5	13	13	11/E	26	8	27	50
	EH/S PG 13/16	83541082	Black	Pg 13	16	16	13/E	26	8	27	50
	EH/S PG 16/13	83541084	Black	Pg 16	13	13	11/E	26	8	27	50
	EH/S PG 16	83541058	Black	Pg 16	16	16	13/E	26	8	27	50
	EH/S PG 21	83541060	Black	Pg 21	21	21	16/E	34	10	38	50
	EH/S PG 29	83541062	Black	Pg 29	29	29	21/E	34	10	46	25
	EH/S PG 36	83541064	Black	Pg 36	36	36	29/E	44	15	55	25
	EH/S PG 48	83541066	Black	Pg 48	48	48	42	50	15	65	10
	EH/S PG 07	83541010	Grey	Pg 07		07		26	8	19	50
	EH/S PG 07/09	83541028	Grey	Pg 07	09	09		26	8	19	50
	EH/S PG 09	83541012	Grey	Pg 09	09	09	07/E	26	8	19	50
	EH/S PG 09/11	83541030	Grey	Pg 09	11	11	09/E	26	8	22	50
	EH/S PG 09/13	83541032	Grey	Pg 09	13	13	11/E	26	8	27	50
	EH/S PG 09/16	83541034	Grey	Pg 09	16	16	13/E	26	8	27	50
	EH/S PG 11/09	83541040	Grey	Pg 11	09	09	07/E	26	8	19	50
	EH/S PG 11	83541014	Grey	Pg 11	11	11	09/E	26	8	22	50
	EH/S PG 11/13	83541036	Grey	Pg 11	13	13	11/E	26	8	27	50
	EH/S PG 11/16	83541038	Grey	Pg 11	16	16	13/E	26	8	27	50
	EH/S PG 13.5	83541016	Grey	Pg 13.5	13	13	11/E	26	8	27	50
	EH/S PG 13/16	83541042	Grey	Pg 13	16	16	13/E	26	8	27	50
	EH/S PG 16/13	83541044	Grey	Pg 16	13	13	11/E	26	8	27	50
	EH/S PG 16	83541018	Grey	Pg 16	16	16	13/E	26	8	27	50
	EH/S PG 21	83541020	Grey	Pg 21	21	21	16/E	34	10	38	50
	EH/S PG 29	83541022	Grey	Pg 29	29	29	21/E	34	10	46	25
	EH/S PG 36	83541024	Grey	Pg 36	36	36	29/E	44	15	55	25
	EH/S PG 48	83541026	Grey	Pg 48	48	48	42	50	15	65	10

Datasheet - PDF

▲

Title:	Size:	Type:
PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf	11 Mbytes
83541220 83541220 EN_83541220.pdf	957 Kbytes
