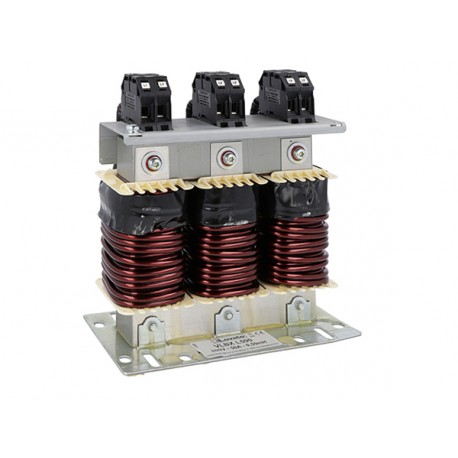

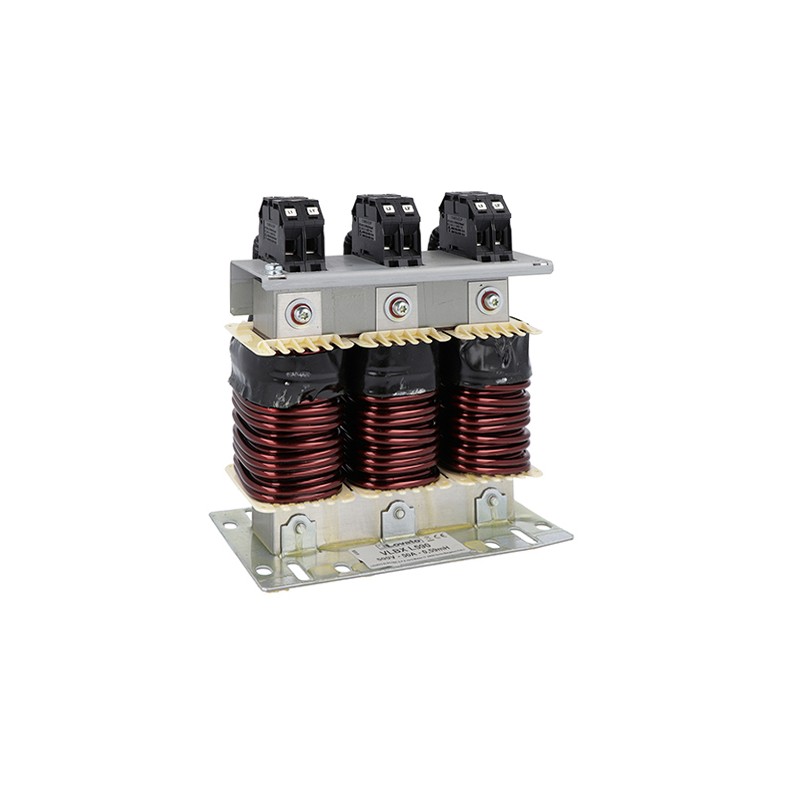

VLBXL190 LOVATO Inductance three-phase 160A To converter 75KW
VLBXL190
LOVATO ELECTRIC
Inductance three-phase 160A To converter 75KW
LINE INDUCTANCE 160A - VLB3 75KW
Three-phase mains choke for variable speed drives VLB3... series, 75kW
Low-voltage switchgear and control gear > Filter circuit coil for low-voltage
AC motor drives - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲VLBXL190
Three-phase mains choke for variable speed drives VLB3... series, 75kW
Technical specifications
- Type of product:
- Accessories
- Rated output current [A]:
- 160
- Rated output power [kW]:
- 75
- Type of accessories:
- Mains chokes
- Accessories for:
- VLB3…
| Order code | VLBXL190 |
|---|---|
| Weight [g] | 26000 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | |
| Volume [cm³] | 0 |
| Bar code [EAN13] | 8013975228418 |
| HS Code | 85045000 |
| Feature Name | Feature Value |
|---|---|
| Rated current AC (EF007500) | 50 A |
| Rated operating frequency (EF007024) | 50 Hz |
| Number of poles, primary side (EF007403) | 3 |
| Max. rated current (Ith) at rated voltage AC (EF007358) | 160 A |
| Max. rated operation voltage Ue (EF007357) | 480 V |
