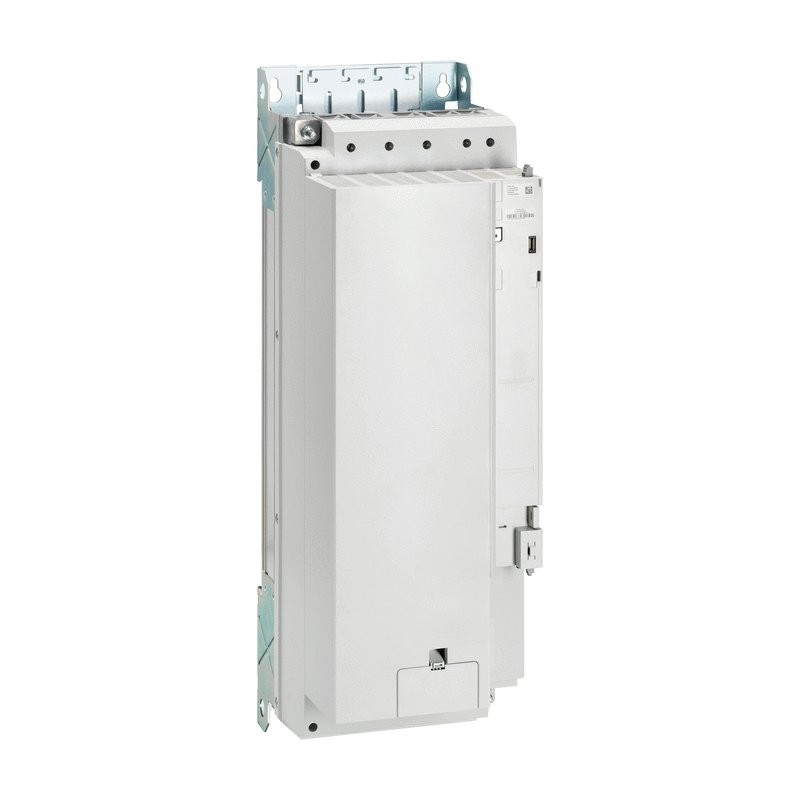

VLB31100A480XX LOVATO POWER UNIT, VLB3 TYPE, THREE-PHASE SUPPLY 400-480VAC 50/60HZ. EMC SUPPRESSOR BUILT-IN ..
VLB31100A480XX
LOVATO ELECTRIC
POWER UNIT, VLB3 TYPE, THREE-PHASE SUPPLY 400-480VAC 50/60HZ. EMC SUPPRESSOR BUILT-IN CAT. C2, 110KW
3PH POWER UNIT 110KW 400V FOR VLB3
Power unit, VLB3... type, three-phase supply 400-480VAC 50/60Hz. EMC suppressor built-in, Cat. C2, 110kW
Low-voltage industrial components > Frequency converter less than 1 kV
AC motor drives - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲VLB31100A480XX
Power unit, VLB3... type, three-phase supply 400-480VAC 50/60Hz. EMC suppressor built-in, Cat. C2, 110kW
Technical specifications
- Type of product:
- Variable speed drives
- Type of input:
- Three-phase
- Rated supply voltage:
- 400…480VAC 50/60Hz
- Rated output current [A]:
- 212
- Rated output power [kW]:
- 110
- Housing:
- Book housing
| Order code | VLB31100A480XX |
|---|---|
| Weight [g] | 34980 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 780X260X310 |
| Volume [cm³] | 62868 |
| Bar code [EAN13] | 8013975232521 |
| HS Code | 85044095 |
| Feature Name | Feature Value |
|---|---|
| Number of phases input (EF007117) | 3 |
| Number of phases output (EF006998) | 3 |
| Type of converter (EF006978) | U converter |
| Mains frequency (EF006783) | 50/60 Hz |
| Degree of protection (IP) (EF005474) | IP20 |
| Mains voltage (EF006780) | 400 V |
| Supporting protocol for BACnet (EF011944) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFINET IO (EF007525) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Application in domestic- and commercial area permitted (EF007295) | No |
| Application in industrial area permitted (EF007294) | Yes |
| Integrated breaking resistance (EF007293) | No |
| 4-quadrant operation possible (EF006803) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| With PC connection (EF006107) | Yes |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for PROFIBUS (EF003052) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| With optical interface (EF003028) | No |
| Supporting protocol for LON (EF003017) | No |
| With control element (EF001538) | Yes |
| Nominal output current I2N (EF009561) | 212 A |
| Max. output voltage (EF009560) | 480 V |
| Relative symmetric net frequency tolerance (EF007454) | 10 % |
| Relative symmetric net voltage tolerance (EF007453) | 10 % |
| Max. output at quadratic load at rated output voltage (EF007366) | 110 kW |
| Max. output at linear load at rated output voltage (EF007364) | 110 kW |
| Max. output frequency (EF007350) | 599 Hz |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces USB (EF003025) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of analogue outputs (EF001995) | 1 |
| Number of analogue inputs (EF001994) | 2 |
| Number of digital outputs (EF001993) | 2 |
| Number of digital inputs (EF001992) | 5 |
| Depth (EF000049) | 304 mm |
| Height (EF000040) | 755 mm |
| Width (EF000008) | 258 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| VLB31100A480XX VLB31100A480XX 06-Variable-speed-drives-06-January-2018_EN.pdf | 1 Mbytes |
|
