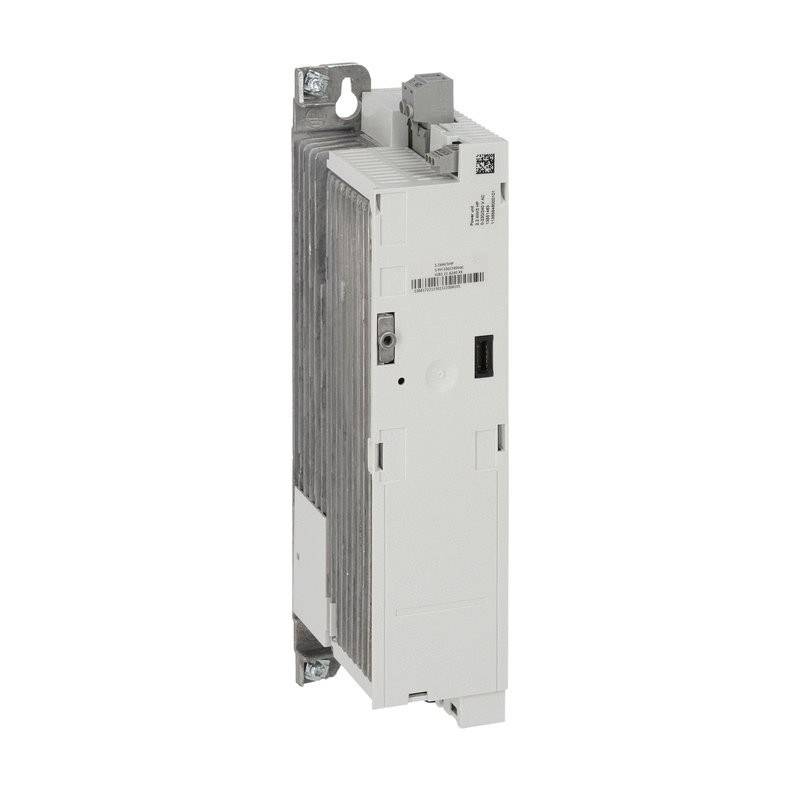

VLB122A240XX LOVATO 1PH 2.2KW 240V POWER UNIT FOR VLB
VLB122A240XX
LOVATO ELECTRIC
1PH 2.2KW 240V POWER UNIT FOR VLB
Power unit, VLB1... type, single-phase supply 200-240VAC 50/60Hz. EMC suppressor built-in, 2.2kW
Low-voltage industrial components > Frequency converter less than 1 kV
AC motor drives - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲VLB122A240XX
Power unit, VLB1... type, single-phase supply 200-240VAC 50/60Hz. EMC suppressor built-in, 2.2kW
Technical specifications
- Type of product:
- Variable speed drives
- Type of input:
- Single-phase
- Rated supply voltage:
- 200…240VAC 50/60Hz
- Rated output current [A]:
- 9.6
- Rated output power [kW]:
- 2.2
- Housing:
- Book housing
| Order code | VLB122A240XX |
|---|---|
| Weight [g] | 1350 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 285X160X075 |
| Volume [cm³] | 3420 |
| Bar code [EAN13] | 8013975319079 |
| HS Code | 85044095 |
| Feature Name | Feature Value |
|---|---|
| Mains voltage (EF006780) | 200 V |
| Nominal output current I2N (EF009561) | 9.6 A |
| Max. output voltage (EF009560) | 240 V |
| Relative symmetric net frequency tolerance (EF007454) | 10 % |
| Relative symmetric net voltage tolerance (EF007453) | 10 % |
| Max. output at quadratic load at rated output voltage (EF007366) | 2.2 kW |
| Max. output at linear load at rated output voltage (EF007364) | 2.2 kW |
| Max. output frequency (EF007350) | 599 Hz |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of analogue outputs (EF001995) | 1 |
| Number of analogue inputs (EF001994) | 2 |
| Number of digital outputs (EF001993) | 2 |
| Number of digital inputs (EF001992) | 5 |
| Depth (EF000049) | 130 mm |
| Height (EF000040) | 278 mm |
| Width (EF000008) | 60 mm |
| Supporting protocol for BACnet (EF011944) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFINET IO (EF007525) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Application in domestic- and commercial area permitted (EF007295) | Yes |
| Application in industrial area permitted (EF007294) | Yes |
| Integrated breaking resistance (EF007293) | Yes |
| 4-quadrant operation possible (EF006803) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| With PC connection (EF006107) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for CAN (EF003053) | Yes |
| Supporting protocol for PROFIBUS (EF003052) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| With optical interface (EF003028) | No |
| Supporting protocol for LON (EF003017) | No |
| Number of phases input (EF007117) | 1 |
| Number of phases output (EF006998) | 3 |
| Type of converter (EF006978) | Other |
| Mains frequency (EF006783) | 50/60 Hz |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| VLB122A240XX EN_VLB122A240XX.pdf | 343 Kbytes |
|
