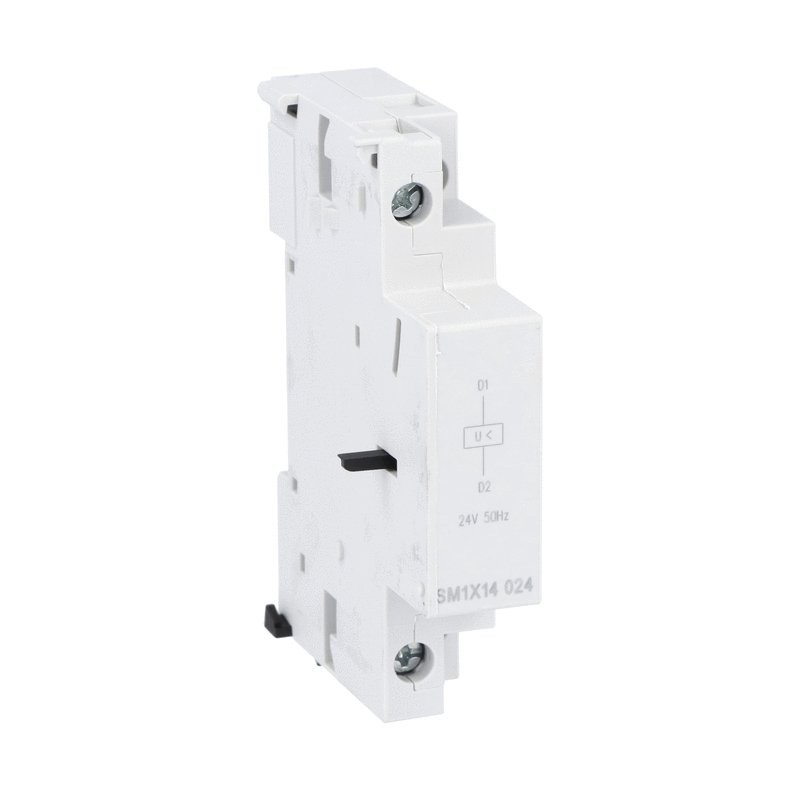

SM1X1457560 LOVATO U.V.TRIP FOR SM1P/R 575V 60HZ
SM1X1457560
LOVATO ELECTRIC
U.V.TRIP FOR SM1P/R 575V 60HZ
UNDERVOLTAGE TRIP RELEASE. 575VAC 60HZ
Motor protection circuit breakers - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
More info
▲| Order code | SM1X1457560 |
| Weight [g] | 124 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 084X027X107 |
| Volume [cm³] | 242.676 |
| Bar code [EAN13] | 8013975230879 |
| HS Code | 85362010 |
Dimensions
Wiring diagram
Certifications:
cULus
EAC
cULus
EAC
Compliance:
IEC/EN 60947-1
IEC/EN 60947-5-1
UL508
CSA C22.2 n° 14
IEC/EN 60947-1
IEC/EN 60947-5-1
UL508
CSA C22.2 n° 14
| Product designation | Undervoltage trip releases with early-make contacts | |||
| Product type designation | SM1X | |||
| Description | Undervoltage trip releases | |||
| Accessories for | SM1P..., SM1R… | |||
| Auxiliary contact characteristics | ||||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| Operational characteristics | ||||
| Rated supply voltage AC | VAC | 575 | ||
| Rated frequency | Hz | 60 | ||
| In-rush consumption | VA | 12 | ||
| Holding consumption | VA | 3.5 | ||
| Release voltage | Us | 35…70 | ||
| Operating voltage | US | 85…110 | ||
| Mechanical features | ||||
| Tightening torque for terminals | ||||
| min | Nm | 1 | ||
| max | Nm | 1 | ||
| min | Ibin | 9 | ||
| max | Ibin | 9 | ||
| Conductor section | ||||
| AWG/Kcmil | ||||
| min | 18 | |||
| max | 14 | |||
| Flexible w/o lug conductor section | ||||
| min | mm² | 0.75 | ||
| max | mm² | 2.5 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 0.75 | ||
| max | mm² | 2.5 | ||
| Operating position | ||||
| normal | Vertical | |||
| allowable | Any | |||
| Terminals | ||||
| type | Screw | |||
| screw | M3.5 | |||
| width | mm | 7.2 | ||
| tool | Ph4 | |||
| Weight | g | 130 | ||
| Operations | ||||
| Mechanical life | cycles | 100000 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +60 | ||
| Storage temperature | ||||
| min | °C | -50 | ||
| max | °C | +80 | ||
| Max altitude | m | 3000 | ||
| IEC degree of protection | IP20 | |||
