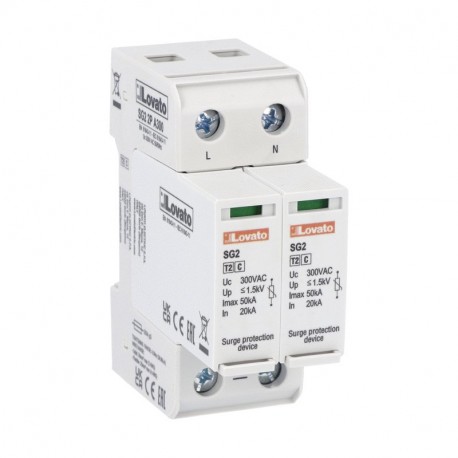

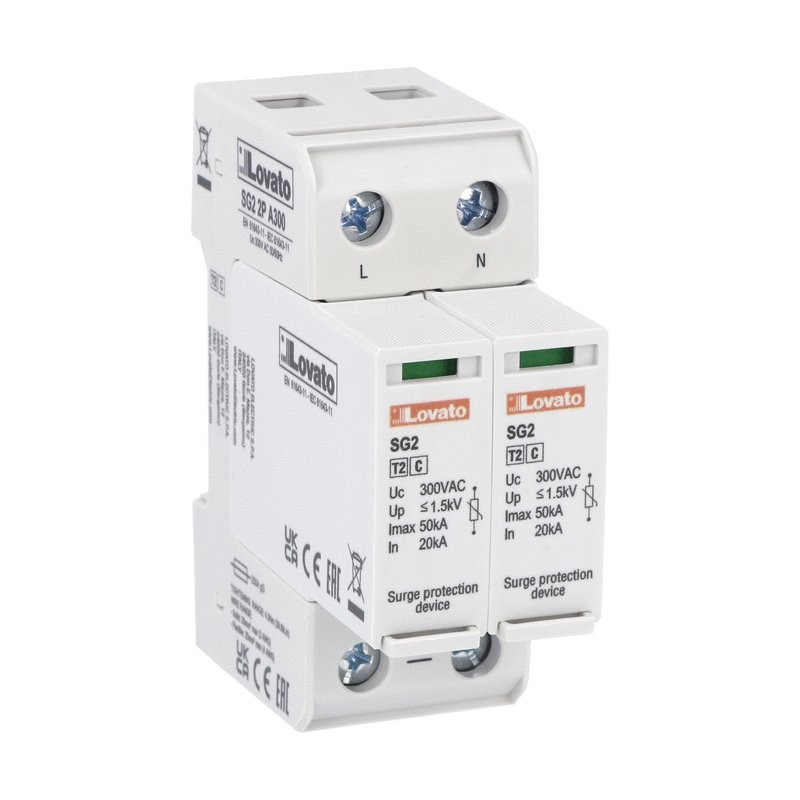

SG22PA300 LOVATO SURGE PROTECTION DEVICE TYPE 2 WITH PLUG-IN CARTRIDGE, RATED DISCHARGE CURRENT IN (8/20MS) ..
SG22PA300
LOVATO ELECTRIC
SURGE PROTECTION DEVICE TYPE 2 WITH PLUG-IN CARTRIDGE, RATED DISCHARGE CURRENT IN (8/20MS) 20KA PER POLE, 2P
SURGE PROTECTION DEVICE TYPE 2 2P
Surge protection device type 2 with plug-in cartridge, rated discharge current In (8/20μs) 20kA per pole, 2P
Earthing, lightning and surge protection > Surge protection device for power supply systems
Surge protection devices - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲SG22PA300
Surge protection device type 2 with plug-in cartridge, rated discharge current In (8/20μs) 20kA per pole, 2P
Technical specifications
- Type of product:
- SPD
- Type of system:
- 230/400VAC
- Type / Class:
- 2
- Number of poles:
- 2P
- In [kA]:
- 20
- Type of mounting:
- Din rail
- For photovoltaic application:
- Yes
| Order code | SG22PA300 |
|---|---|
| Weight [g] | 274.2 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 110X100X045 |
| Volume [cm³] | 495 |
| Bar code [EAN13] | 8013975232743 |
| HS Code | 85365080 |
116.88 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Signalling at the device (EF004241) | Optic |
| Construction size (EF002566) | 2 modular spacing |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Leakage-current free (EF016002) | No |
| Integrated short-circuit protection (EF016000) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration other (EF009932) | No |
| System configuration TT (EF009931) | No |
| System configuration TN-S (EF009930) | Yes |
| System configuration TN-C (EF009929) | No |
| System configuration TN (EF009928) | No |
| System configuration IT (EF009927) | No |
| System configuration DC (EF009926) | No |
| Integrated backup fuse (EF008797) | No |
| Category type 2 (EF004230) | Yes |
| With remote signalling contact (EF000422) | No |
| Integrated short-circuit protection selective to fuse gG (EF016001) | 50000 A |
| Max. overcurrent protection device, series connection (fuse) (EF015963) | 50 A |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 50 A |
| Short-circuit breaking capacity (Isccr) (EF012627) | 50 kA |
| Max. discharge surge current (8/20) (EF012274) | 50 kA |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Voltage protection level L-N (EF004236) | 1500 kV |
| Nominal voltage AC (EF004220) | 240 V |
| Nominal discharge surge current (8/20) (EF004214) | 20 kA |
| Max. continuous voltage AC (EF004198) | 300 V |
| Voltage protection level (EF003525) | 1500 kV |
| Number of conductors (without earthing) (EF001148) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| SG22PA300 SG22PA300 14-Surge-protection-devices-14-January-2018_EN.pdf | 776 Kbytes |
|
