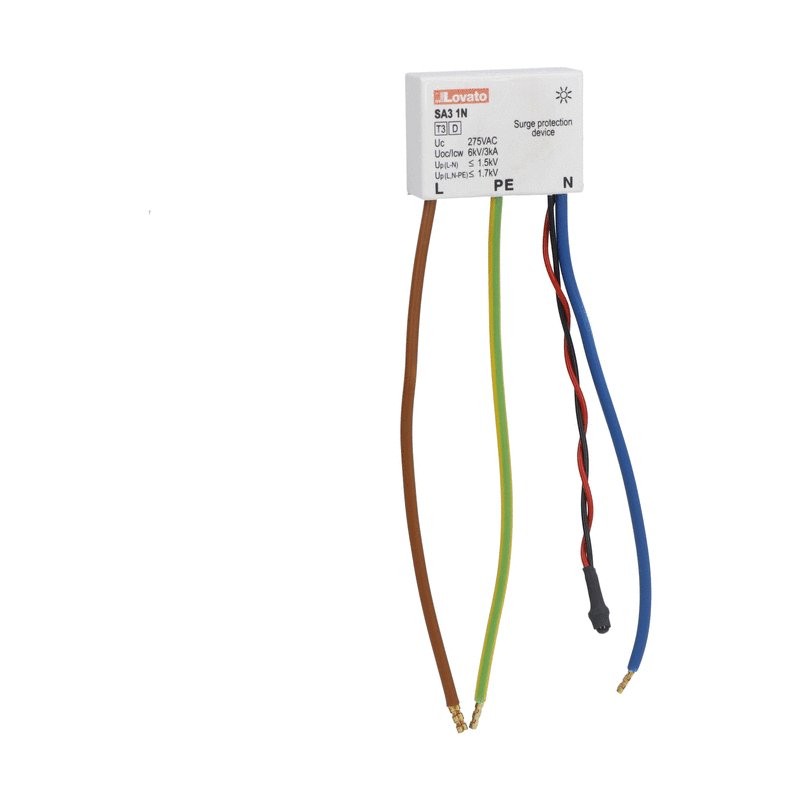

SA31NA275ML LOVATO SURGE PROTECTION DEVICE TYPE 3, COMPACT VERSION, COMBINATION WAVE Uoc/Icw (1.2/50 μs, 8/2..
SA31NA275ML
LOVATO ELECTRIC
SURGE PROTECTION DEVICE TYPE 3, COMPACT VERSION, COMBINATION WAVE Uoc/Icw (1.2/50 μs, 8/20μs) 6kV/3kA, 1P+N, WITH LED SIGNALING
SURGE PROTECTION DEVICE MINI TYPE 3 1P+N
Surge protection device type 3, compact version, combination wave Uoc/Icw (1.2/50 μs, 8/20μs) 6kV/3kA, 1P+N, with LED signaling
Earthing, lightning and surge protection > Surge protection device for terminal equipment
Surge protection devices - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲SA31NA275ML
Surge protection device type 3, compact version, combination wave Uoc/Icw (1.2/50 μs, 8/20μs) 6kV/3kA, 1P+N, with LED signaling
Technical specifications
- Type of product:
- SPD
- Type of system:
- 230/400VAC
- Type / Class:
- 3
- Number of poles:
- 1P+N
- Intervention signaling:
- Optical
- Type of mounting:
- Parallel on socket
| Order code | SA31NA275ML |
|---|---|
| Weight [g] | 40 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 110X075X025 |
| Volume [cm³] | 206.25 |
| Bar code [EAN13] | 8013975231050 |
| HS Code | 85365080 |
63.47 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Signalling at the device (EF004241) | Optic |
| Mounting method (EF000003) | Wall socket |
| With interference suppressor filter (EF006025) | No |
| Category type 3 (EF004231) | Yes |
| With remote signalling contact (EF000422) | No |
| Max. overcurrent protection device, series connection (fuse) (EF015963) | 1 A |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 1 A |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 1 mm² |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 1 mm² |
| Voltage protection level L-PE/N-PE (EF004237) | 1700 kV |
| Voltage protection level L-N (EF004236) | 1500 kV |
| Nominal voltage AC (EF004220) | 230 V |
| Max. continuous voltage AC (EF004198) | 275 V |
| Voltage protection level (EF003525) | 1500 kV |
| Number of poles (EF001391) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| SA31NA275ML SA31NA275ML 14-Surge-protection-devices-14-January-2018_EN.pdf | 776 Kbytes |
|
