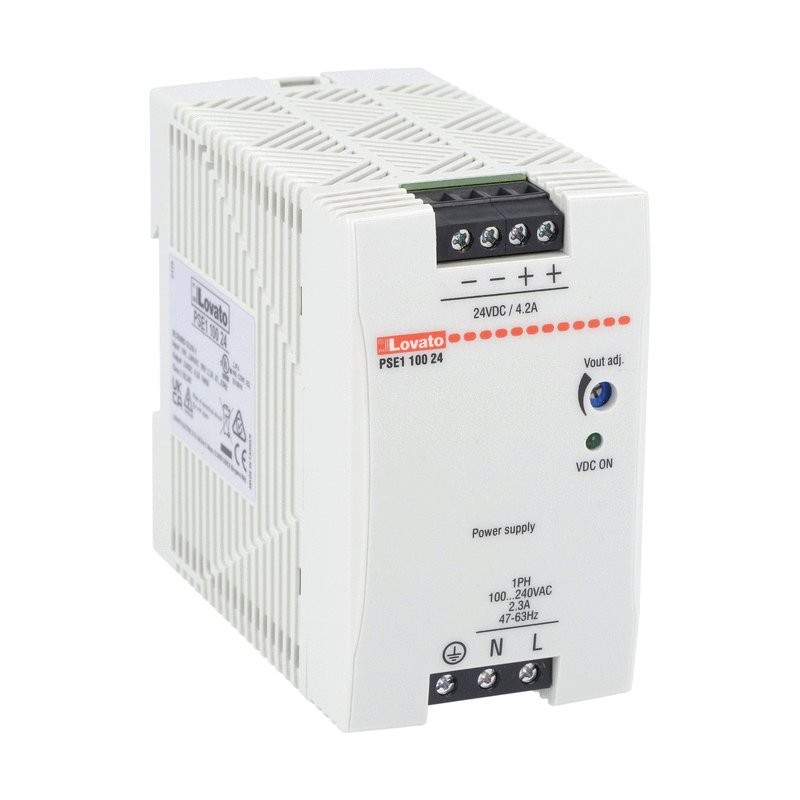

PSE110024 LOVATO DIN 1PH POWER SUPPLY 100W 100-240VAC 24V
PSE110024
LOVATO ELECTRIC
DIN 1PH POWER SUPPLY 100W 100-240VAC 24V
Compact DIN rail switching power supply, single-phase. 24VDC, 4.2A/100W
SWITCHING POWER SUPPLY, DIN RAIL MOUNTING, SINGLE-PHASE. 24VDC, 100W
Low-voltage industrial components > DC-power supply
Switching power supplies - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲PSE110024
Compact DIN rail switching power supply, single-phase. 24VDC, 4.2A/100W
Technical specifications
- Type of product:
- Switching power supplies
- Rated output voltage DC [VDC]:
- 24
- Rated output current [A]:
- 4.2
- Rated output power [W]:
- 100
- Type of input:
- Single-phase
- Rated supply voltage AC [VAC]:
- Multivoltage 100...240
- Type of installation:
- DIN rail mounting
| Order code | PSE110024 |
|---|---|
| Weight [g] | 406.9 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 125X140X065 |
| Volume [cm³] | 1137.5 |
| Bar code [EAN13] | 8013975268421 |
| HS Code | 8504318090 |
119.9 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Rated supply voltage DC (EF007078) | 120 V |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| 1st secondary output voltage (EF006792) | 24 V |
| Short-circuit-proof (EF007332) | Yes |
| Secondary voltage adjustable (EF007002) | Yes |
| Direct mounting possible (EF005689) | No |
| Stabilized (EF005302) | Yes |
| Wall mounting possible (EF003973) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Suitable for safety functions (EF001597) | No |
| Nominal value output current 1 (EF009396) | 4.2 A |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Max. output current 1 (EF008284) | 4.2 A |
| Power output (EF003034) | 100 W |
| Depth (EF000049) | 100 mm |
| Height (EF000040) | 90 mm |
| Width (EF000008) | 54 mm |
