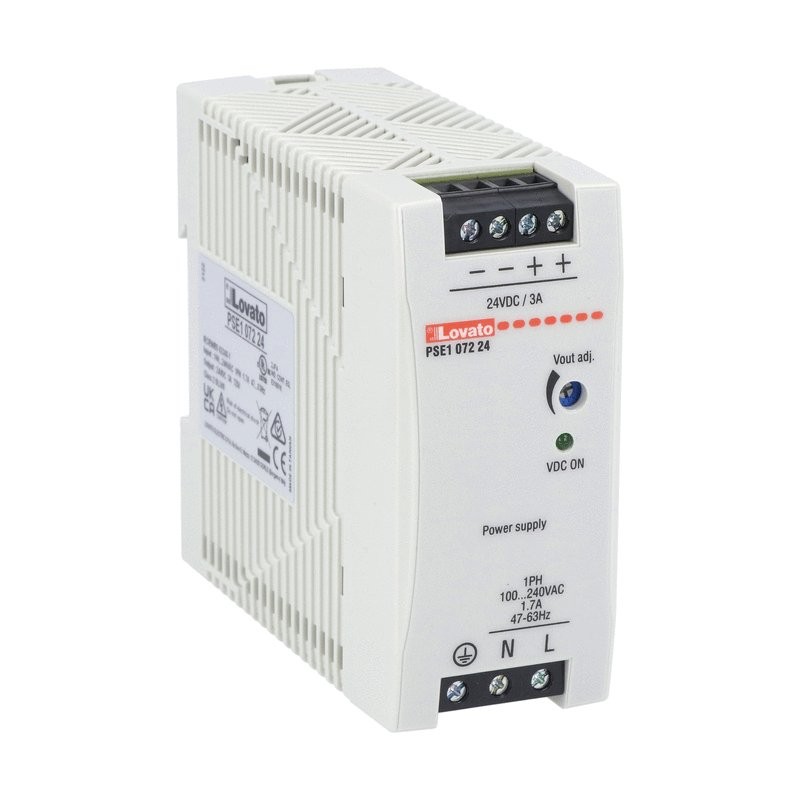

PSE107224 LOVATO DIN 1PH POWER SUPPLY 72W 100-240VAC 24VD
PSE107224
LOVATO ELECTRIC
DIN 1PH POWER SUPPLY 72W 100-240VAC 24VD
Compact DIN rail switching power supply, single-phase. 24VDC, 3A/72W
Switching power supplies - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
More info
▲| Order code | PSE107224 |
| Weight [g] | 250 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 125X140X055 |
| Volume [cm³] | 962.5 |
| Bar code [EAN13] | 8013975268414 |
| HS Code | 8504318090 |
Dimensions
Wiring diagram
Certifications:
cULus
EAC
RCM
cULus
EAC
RCM
Compliance:
IEC/EN/BS 62368-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-3
UL 508
CSA C22.2 n° 107.1.
IEC/EN/BS 62368-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-3
UL 508
CSA C22.2 n° 107.1.
| Product designation | Switching power supplies | |||
| Product type designation | PSE1 | |||
| Input characteristics | ||||
| Input type | Single-phase | |||
| Rated supply voltage AC | VAC | Multivoltage 100...240 | ||
| Operating range | ||||
| AC | ||||
| min | VAC | 85 | ||
| Max | VAC | 264 | ||
| DC | ||||
| min | VDC | 120 | ||
| Max | VDC | 375 | ||
| Rated frequency | Hz | 50/60 | ||
| Operational frequency | ||||
| min | Hz | 47 | ||
| max | Hz | 63 | ||
| Current consumption Max | mA | 1700 | ||
| Power dissipation | W | 10.5 | ||
| Insulation voltage Input/Output | ||||
| AC | VAC | 3000 | ||
| DC | VAC | 4242 | ||
| Internal fuse (250VAC) | T3.15A 250VAC | |||
| Output characteristics | ||||
| Rated output voltage DC | VDC | 24 | ||
| Voltage trimming (potentiometer) DC | ||||
| min | VDC | 22.5 | ||
| Max | VDC | 28.5 | ||
| Rated output current | A | 3 | ||
| Rated output power | W | 72 | ||
| Temperature coefficient | %/°C | ±0.03 | ||
| Line adjustment | % | ±1 | ||
| Load adjustment | % | ±1 | ||
| Efficency | % | 89 | ||
| Overload protection | 1.4 | |||
| Overvoltage protection | min 28.8V / max 32.4V | |||
| Short-circuit protection | Hiccup | |||
| Ripple & noise | mV | 100 | ||
| Parallel connection | Nr. | No | ||
| Indications | ||||
| LED indicator for power on | Yes | |||
| LED indicator for low voltage | No | |||
| Power Rdy (Ready - minimum limit) | No | |||
| Connections | ||||
| Terminals type | Screw | |||
| Tightening torque for terminals | ||||
| max | Nm | 0.5 | ||
| max | Ibin | 5 | ||
| Conductor cross section | ||||
| AWG/Kcmil | ||||
| min | AWG | 26 | ||
| Max | AWG | 12 | ||
| IEC | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| Cable stripping lenght | mm | 4-5 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +71 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| Derating | %/°C | 2.5%/°C above 50°C | ||
| Relative humidity | % | <95% | ||
| Maximum Pollution degree | 2 | |||
| Max altitude | m | 5000 | ||
| Housing | ||||
| Material | Plastic | |||
| IEC degree of protection | IP20 | |||
| Dimensions (W x H x D) | mm | 40.5 x 90 x 100 | ||
| Weight | g | 250 | ||
| Installations | ||||
| Mounting | On 35mm DIN rail | |||
| Installation position | Vertical (other directions with derating) | |||
| Cooling System | Free air convection | |||
| ETIM classification | ||||
| ETIM 8.0 | EC002540 - DC-power supply | |||
