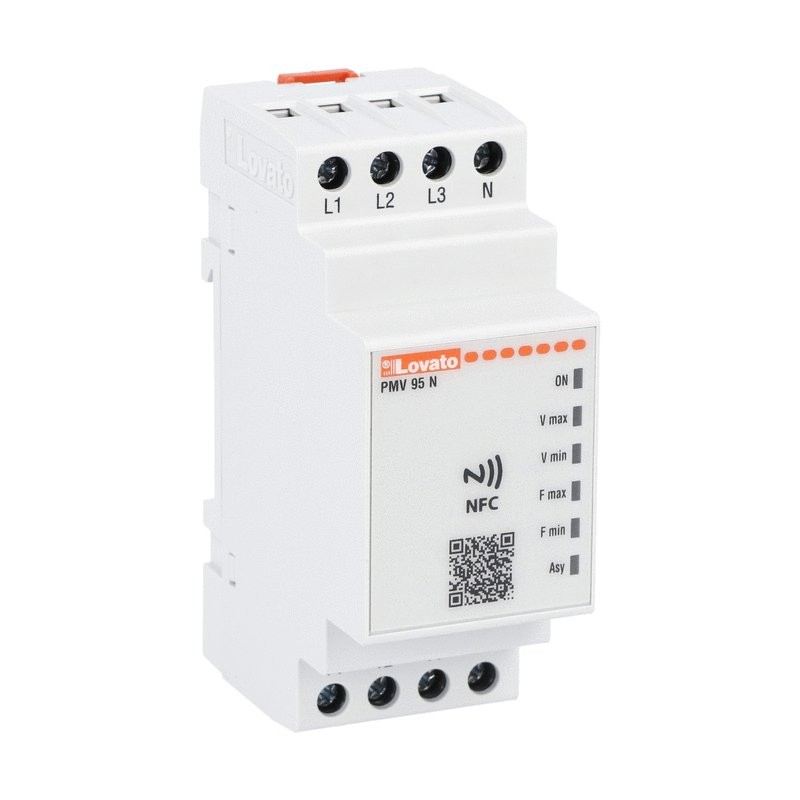

PMV95NA575NFC LOVATO Protection relay Multifuncion, voltimétrico and frequency three-phase with or without n..
PMV95NA575NFC
LOVATO ELECTRIC
Protection relay Multifuncion, voltimétrico and frequency three-phase with or without neutral NFC and APP 380 - 575V AC
PROT. RELAY 3PH+N 380/575V MULTIFUN. NFC
Multifunction voltage and frequency monitoring relay for three-phase systems with or without neutral with NFC technology and App. 380...575VAC 50/60Hz
Relays > Voltage monitoring relay
Protection relays - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲PMV95NA575NFC
Multifunction voltage and frequency monitoring relay for three-phase systems with or without neutral with NFC technology and App. 380...575VAC 50/60Hz
Technical specifications
- Type of product:
- Voltage monitoring relays
- Type of system:
- Three-phase with/without neutral
- Number of relay outputs:
- 1
- Rated supply voltage:
- Self powered
- Programming mode:
- NFC
| Order code | PMV95NA575NFC |
|---|---|
| Weight [g] | 123.3 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 095X040X075 |
| Volume [cm³] | 285 |
| Bar code [EAN13] | 8013975237342 |
| HS Code | 85364900 |
245.04 £
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Type of voltage measuring range (EF003399) | AC |
| Voltage measuring range 1 (EF006134) | 266 V |
| Contains function DC-voltage hysteresis (EF003398) | No |
| Contains function DC-over voltage (EF003397) | No |
| Contains function DC-under voltage (EF003396) | No |
| Three-phase hysteresis possible (EF003395) | Yes |
| Single-phase hysteresis possible (EF003394) | No |
| Three-phase over voltage possible (EF003393) | Yes |
| Single-phase over voltage possible (EF003392) | No |
| Three-phase under voltage possible (EF003391) | Yes |
| Single-phase under voltage possible (EF003390) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Min. adjustable off-delay time (EF008192) | 0.1 s |
| Max. permitted off-delay time (EF008191) | 30 s |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Depth (EF000049) | 64.9 mm |
| Height (EF000040) | 104.7 mm |
| Width (EF000008) | 35.8 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
