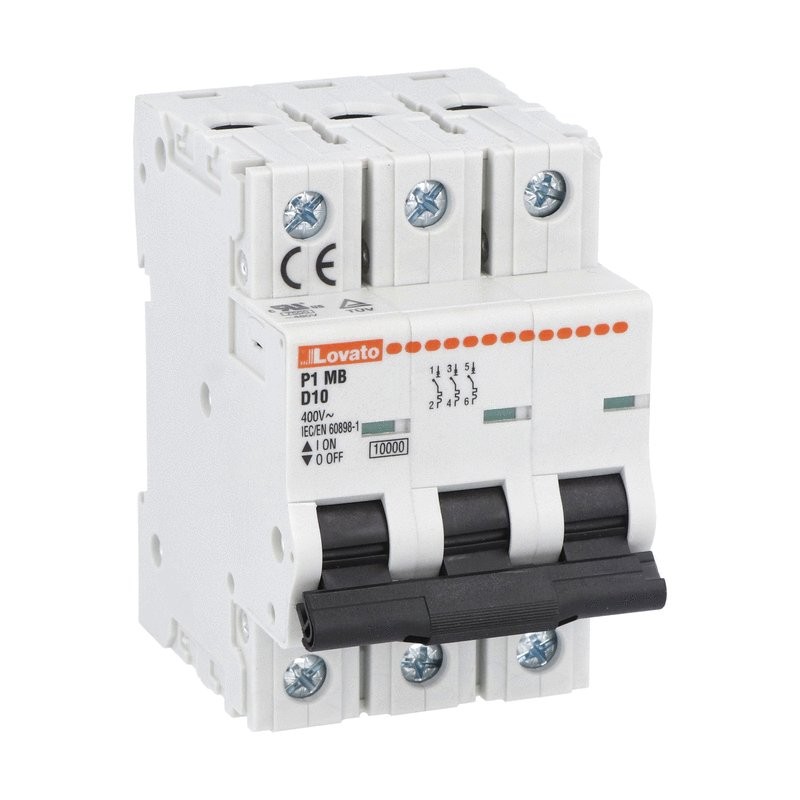

P1MB3PD03 LOVATO MINIATURE CIRCUIT BREAKER 3P D 3A 10KA
P1MB3PD03
LOVATO ELECTRIC
MINIATURE CIRCUIT BREAKER 3P D 3A 10KA
MINIATURE CIRCUIT BREAKER, 3P - 10KA. 3 MODULES, CHARACTERISTIC D, 3A
Miniature and residual circuit breakers
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | P1MB3PD03 |
| Weight [g] | 345 |
| Qty. per package | 4 |
| Multiple qty. of packs per order | 4 |
| Package dimensions [mm] | 250X100X080 |
| Volume [cm³] | 500 |
| Bar code [EAN13] | 8013975237618 |
| HS Code | 85362010 |
Dimensions
Certifications:
TÜV-Rheinland
cURus
EAC
TÜV-Rheinland
cURus
EAC
Compliance:
IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
CSA C22.2 n°235. UR “UL Recognized” per Canada e USA.
IEC/EN 60898-1
IEC/EN 60947-2
UL 1077
CSA C22.2 n°235. UR “UL Recognized” per Canada e USA.
| Product designation | Miniature circuit breaker (MCB) | |||
| Product type designation | P1 MB | |||
| Number of poles | 3 | |||
| Number of DIN modules | 3 | |||
| Compliance | IEC / UL1077 | |||
| Electrical features | ||||
| Rated insulation voltage Ui IEC/EN | V | 440 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| Rated operational voltage AC (IEC) | VAC | 230/400 | ||
| Rated operational voltage DC | VDC | 80 | ||
| Rated frequency | Hz | 50/60 | ||
| Rated current (In) | A | 3 | ||
| Tripping curve | D | |||
| Short circuit rating (IEC) | kA | 10 | ||
| Power dissipation per pole max | W | 0.96 | ||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Max altitude | m | 2000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| Fixing | 35mm DIN rail | |||
| Tightening torque for terminals | ||||
| min | Nm | 1.8 | ||
| max | Nm | 2 | ||
| min | Ibin | 16 | ||
| max | Ibin | 17.7 | ||
| Terminals tool | Pz 2 | |||
| Conductor section | ||||
| IEC | ||||
| min | mm² | 1 | ||
| max | mm² | 35 | ||
| AWG/Kcmil | ||||
| min | 14 | |||
| max | 6 | |||
| Weight | g | 345 | ||
| Frontal IP degree | IP20 | |||
| Pollution degree | 2 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000042 - Miniature circuit breaker (MCB) | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
