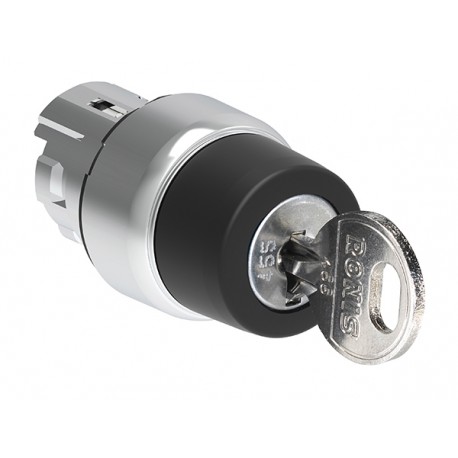

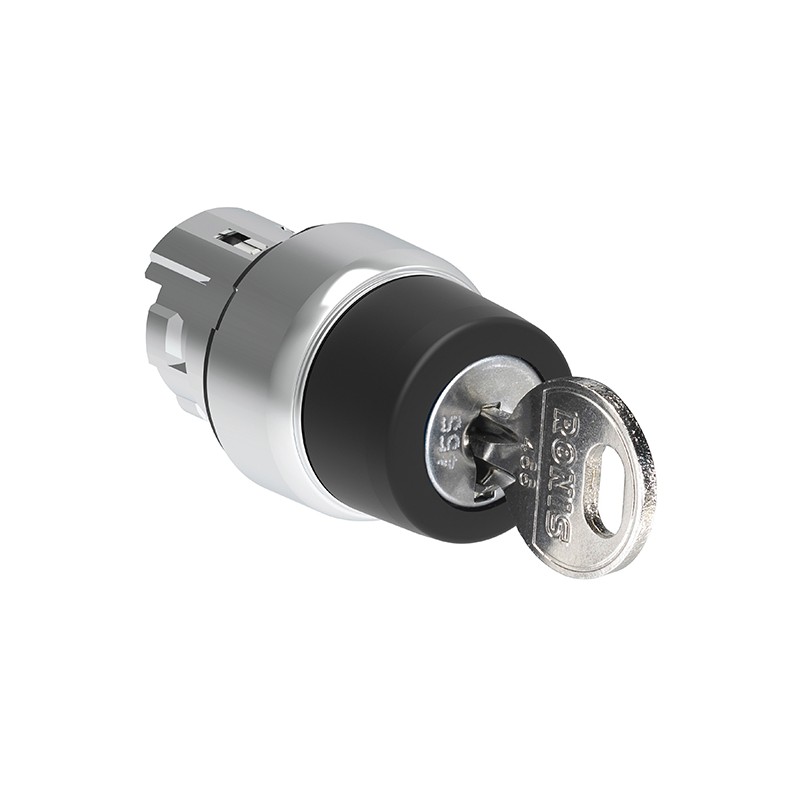

LPSS320R458A LOVATO Metal Selector With key 2 positions "0-1" Fixed Removable key pos. "0" R458A
LPSS320R458A
LOVATO ELECTRIC
Metal Selector With key 2 positions "0-1" Fixed Removable key pos. "0" R458A
Selector switch actuator key Ø22mm Platinum series metal, 2 position, 0 - 1 with different key code
Low-voltage industrial components > Control switch
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPSS320R458A
Selector switch actuator key Ø22mm Platinum series metal, 2 position, 0 - 1 with different key code
Technical specifications
- Type of product:
- Pushbuttons and selector switches
- Type of actuator:
- 0 - 1, key extraction in 0
- Series:
- Platinum metal Ø22mm
- Colour:
- Black
- Illuminated element:
- No
- Type of lever for selector switches:
- Key
- Type of positions for selector switches:
- 2
| Order code | LPSS320R458A |
|---|---|
| Weight [g] | 65 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 100X132X006 |
| Volume [cm³] | 80.584 |
| Bar code [EAN13] | 8013975271940 |
| HS Code | 85365080 |
48.17 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Device construction (EF008240) | Surface mounted device |
| Front shield size (EF007176) | Other |
| Type of control element (EF006976) | Key |
| Type of switch (EF003496) | On/Off switch |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Complete device in housing (EF007317) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 0 |
| Number of switch positions (EF000231) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
