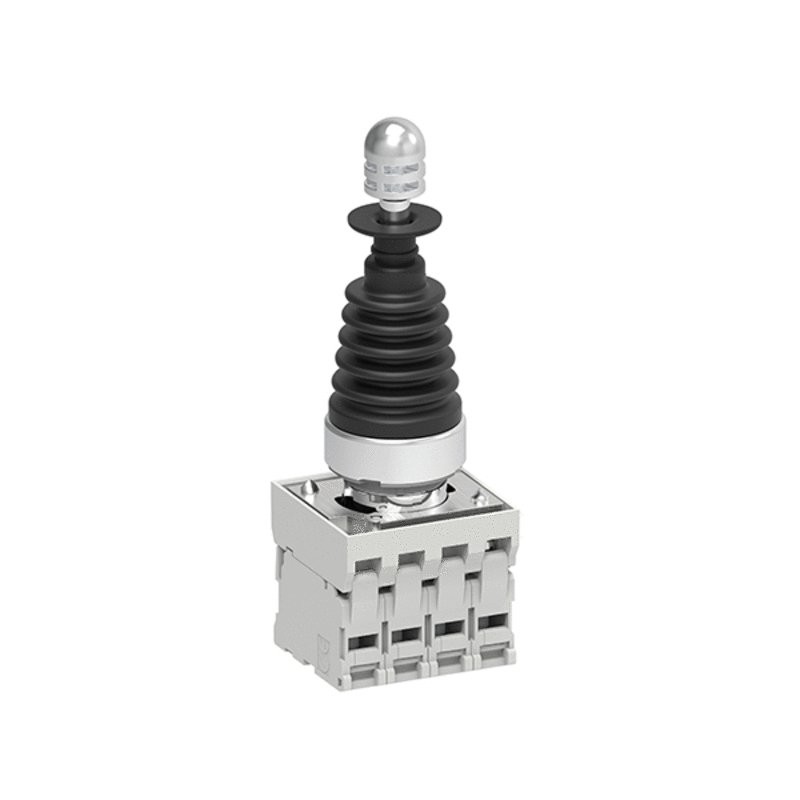

LPSJ410 LOVATO Joysticks With mechanical interlocking in the central position 4 Positions With return 4 NA
LPSJ410
LOVATO ELECTRIC
Joysticks With mechanical interlocking in the central position 4 Positions With return 4 NA
Joystick, Ø22mm Platinum series metal, with mechanical interlock. Complete with auxiliary contact, instable, 4NO auxiliary contacts
Low-voltage industrial components > Control switch, Joystick
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPSJ410
Joystick, Ø22mm Platinum series metal, with mechanical interlock. Complete with auxiliary contact, instable, 4NO auxiliary contacts
Technical specifications
- Type of product:
- Joystick
- Series:
- Platinum metal Ø22mm
- Illuminated element:
- No
- N° of directions for joystick:
- 4
- Mechanical interlock for joystick:
- Yes
- Type of positions for selector switches:
- 4 instable
| Order code | LPSJ410 |
|---|---|
| Weight [g] | 108.84 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X171X012 |
| Volume [cm³] | 322.335 |
| Bar code [EAN13] | 8013975297667 |
| HS Code | 85365080 |
101.09 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | 4X |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP) (EF005474) | IP66 |
| Locking in 0-position (EF006283) | Yes |
| With front ring (EF006014) | Yes |
| Coder (EF005666) | No |
| Analogue output signal configurable (EF003236) | No |
| With retraction in 0-position (EF002428) | No |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Joy stick length (EF006524) | 77.8 mm |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of actuation directions (EF002425) | 4 |
| Centre mounting, hole diameter (EF002424) | 22 mm |
| Number of switch positions (EF000231) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
