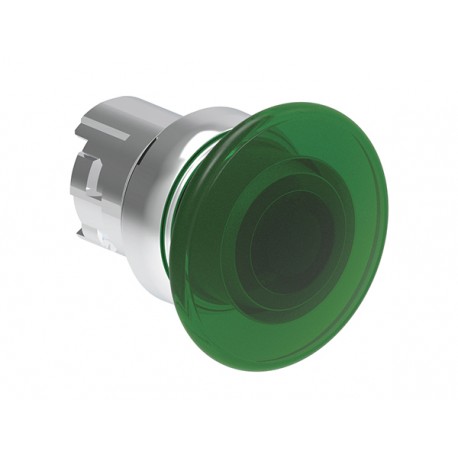

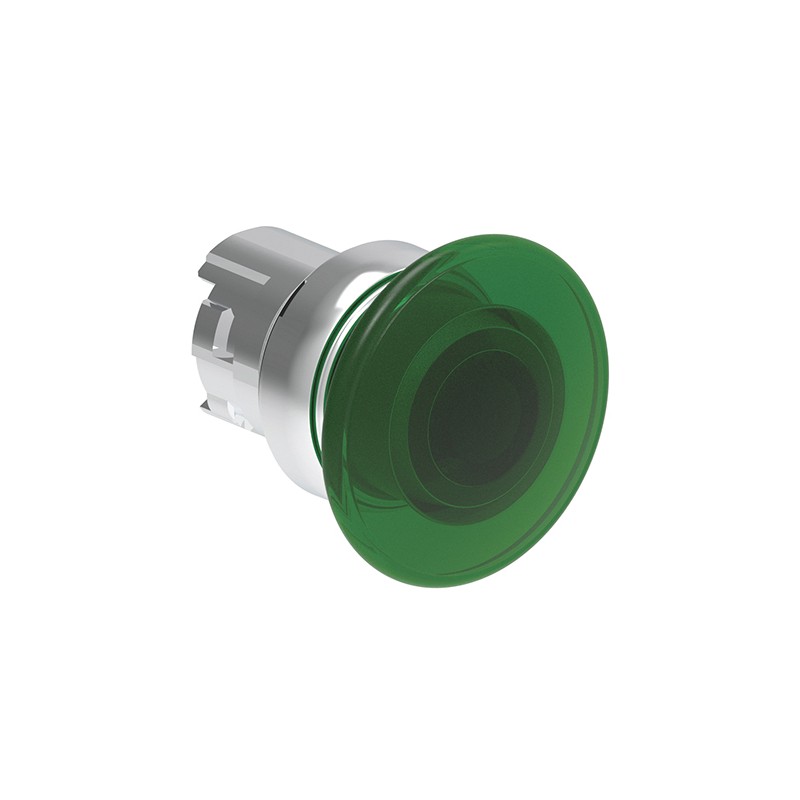

LPSBL6143 LOVATO Pulse metal light mushroom Ø 40mm green
LPSBL6143
LOVATO ELECTRIC
Pulse metal light mushroom Ø 40mm green
Illuminated mushroom head button actuator Ø22mm Platinum series metal, spring return, Ø40mm. Green
Low-voltage industrial components > Front element for mushroom push-button
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲LPSBL6143
Illuminated mushroom head button actuator Ø22mm Platinum series metal, spring return, Ø40mm. Green
Technical specifications
- Type of product:
- Pushbuttons
- Type of actuator:
- Mushroom head
- Series:
- Platinum metal Ø22mm
- Colour:
- Green
- Illuminated element:
- Yes
- Symbol:
- No
- Latching mechanism:
- Spring return
- Type of stopping for mushroom head:
- Normal
- Head diameter [mm]:
- 40
| Order code | LPSBL6143 |
|---|---|
| Weight [g] | 40 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 160X171X003 |
| Volume [cm³] | 80.584 |
| Bar code [EAN13] | 8013975268193 |
| HS Code | 85365080 |
24.01 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Unlocking method (EF001403) | Other |
| Colour button (EF000190) | Green |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| With lighting (EF003829) | No |
| Suitable for emergency stop (EF001433) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | Yes |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Diameter cap (EF001423) | 40 mm |
| Hole diameter (EF000079) | 22 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
