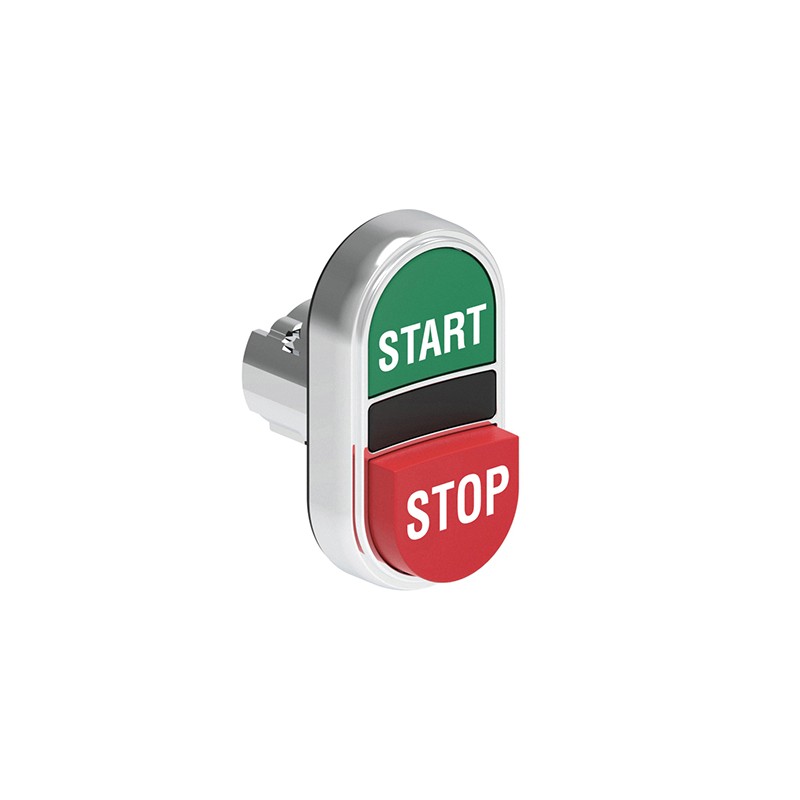

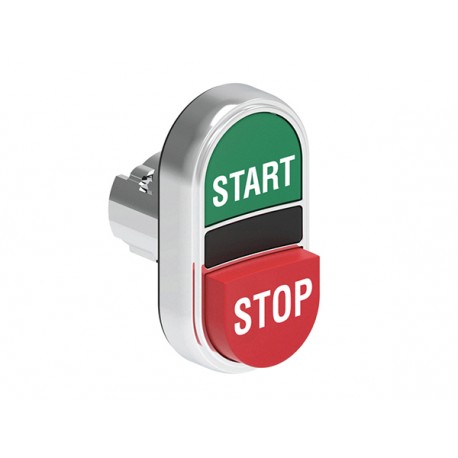

LPSB7233 LOVATO Double Metal Pushbutton with 1 protruding button and 1 grade button with STAR/STOP Green/Red..
LPSB7233
LOVATO ELECTRIC
Double Metal Pushbutton with 1 protruding button and 1 grade button with STAR/STOP Green/Red symbol
Double-touch actuator, spring return Ø22mm Platinum series metal, 1 extended and 1 flush pushbuttons. Both spring return, Green - Red/START - STOP
Domestic switching devices > Push-switch button
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | LPSB7233 |
| Weight [g] | 35 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 390X285X145 |
| Volume [cm³] | 80.584 |
| Bar code [EAN13] | 8013975294543 |
| HS Code | 85365080 |
cULus
IEC/EN/BS 60947-1
IEC/EN/BS 60947-5-1
UL508
CSA C22.2 n° 14
| Product designation | Double-touch actuators, spring return - One extended and one flush pushbuttons | |||
| Product type designation | LPSB72 | |||
| General characteristics | ||||
| Colour | Green/Red | |||
| Type of positions | Start / Stop | |||
| Material | Aluminium and zinc alloy for metal parts and polyamide for plastic parts | |||
| IEC degree of protection | IP66, IP67 and IP69K | |||
| Mechanical features | ||||
| Fixing | Without mounting adapter | |||
| Mounting adapter | LPXAU120M | |||
| UL technical data | ||||
| UL degree of protection | Type1, 2, 3R, 4, 4X, 12, 12K | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +85 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000029 - Push-switch button | |||
| Feature Name | Feature Value |
|---|---|
| Suitable for degree of protection (IP) (EF006755) | Other |
| Surface finishing (EF006569) | Matt |
| Impact strength (EF004293) | IK05 |
| Type of fastening (EF002442) | Engage (snap) |
| Material (EF002169) | Metal |
| Material quality (EF001257) | Aluminium |
| Surface protection (EF000139) | Other |
| Imprint (EF000131) | Letters |
| Connection type (EF000124) | Other |
| Model (EF000010) | Group push button |
| Colour (EF000007) | Other |
| Method of operation (EF000006) | Push button |
| Assembly arrangement (EF000005) | Basic unit |
| Mounting method (EF000003) | Surface mounted |
| Anti-bacterial treatment (EF023790) | No |
| Contactless type (EF015811) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| IFTTT support available (EF011072) | No |
| Transparent (EF006243) | No |
| With light source (EF005905) | No |
| With lighting (EF003829) | No |
| Feedback-signal contact (EF001181) | No |
| Label space/information surface (EF001035) | No |
| With signal lamp (EF000198) | No |
| Halogen free (EF000025) | Yes |
| Number of revolving contacts (EF015810) | 0 |
| Min. depth of built-in installation box (EF012278) | 0 mm |
| Number of modules (module system) (EF009573) | 0 |
| Device depth (EF008810) | 15.3 mm |
| Device height (EF008809) | 53.5 mm |
| Device width (EF008808) | 29.5 mm |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of rockers (EF003816) | 0 |
| Number of poles (EF001391) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
