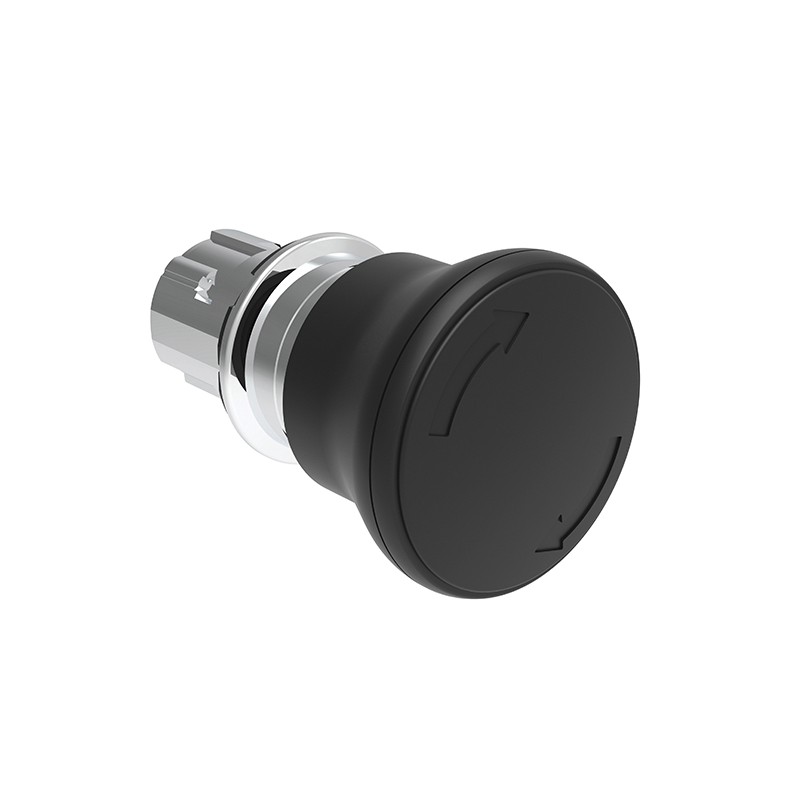

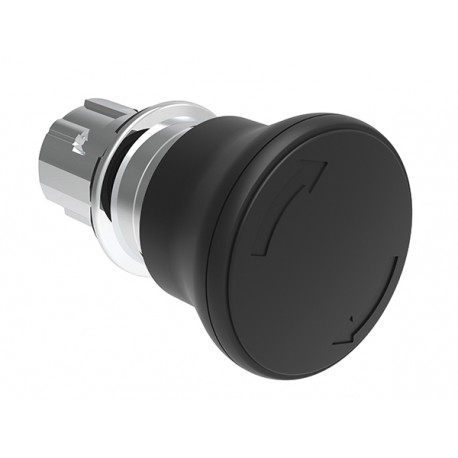

LPSB6642 LOVATO Metal Locking Mushroom, rotational unlock Ø 40mm Black
LPSB6642
LOVATO ELECTRIC
Metal Locking Mushroom, rotational unlock Ø 40mm Black
Mushroom head pushbutton actuator Ø22mm Platinum series metal, latch, turn to release, Ø40mm. For normal stopping. Black
Low-voltage industrial components > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲LPSB6642
Mushroom head pushbutton actuator Ø22mm Platinum series metal, latch, turn to release, Ø40mm. For normal stopping. Black
Technical specifications
- Type of product:
- Pushbuttons
- Type of actuator:
- Mushroom head
- Series:
- Platinum metal Ø22mm
- Colour:
- Black
- Illuminated element:
- No
- Symbol:
- No
- Latching mechanism:
- Turn to release
- Type of stopping for mushroom head:
- Normal
- Head diameter [mm]:
- 40
| Order code | LPSB6642 |
|---|---|
| Weight [g] | 53.42 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 160X171X006 |
| Volume [cm³] | 161.168 |
| Bar code [EAN13] | 8013975295236 |
| HS Code | 85365080 |
30.94 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Type of button (EF001546) | Other |
| Colour button (EF000190) | Black |
| Switching function latching (EF007447) | Yes |
| With front ring (EF006014) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 1 |
| Hole diameter (EF000079) | 22 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
