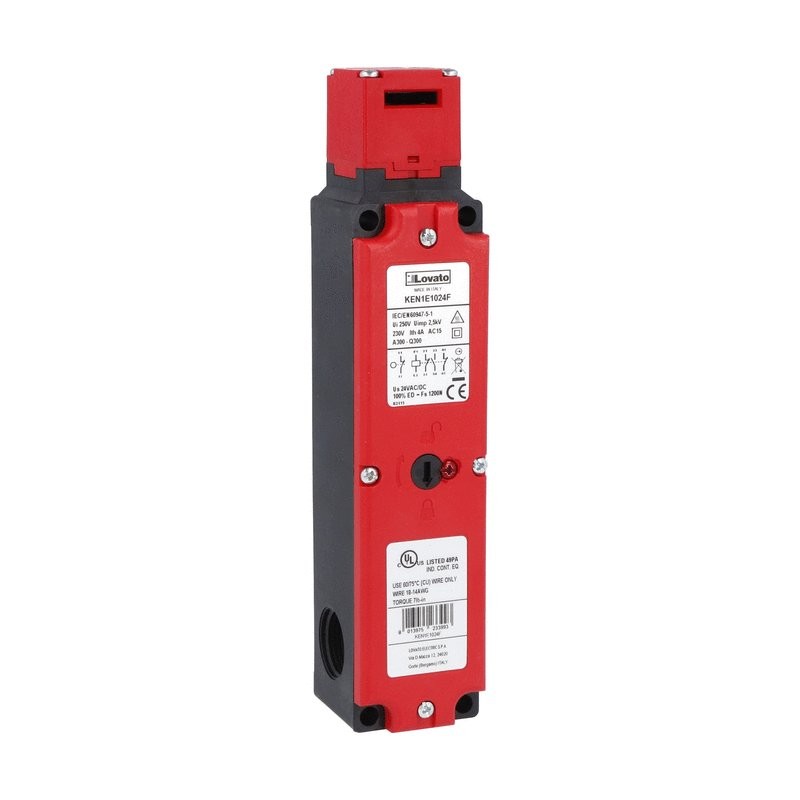

KEN1E1024F LOVATO SAFETY SWITCH WITH SOLENOID. KEY CONTACTS 1NC. SOLENOID CONTACTS 2NC+1NO. SOLENOID SUPPLY ..
KEN1E1024F
LOVATO ELECTRIC
SAFETY SWITCH WITH SOLENOID. KEY CONTACTS 1NC. SOLENOID CONTACTS 2NC+1NO. SOLENOID SUPPLY 24VAC/DC
SAFETY SWITCH LOCK ENERGISED 24V
Safety switch with solenoid. Key contacts 1NC. Solenoid contacts 2NC+1NO. Solenoid supply 24VAC/DC
Sensors > End switch
Home > LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲KEN1E1024F
Safety switch with solenoid. Key contacts 1NC. Solenoid contacts 2NC+1NO. Solenoid supply 24VAC/DC
Technical specifications
- Type of product:
- Safety limit switches
- Product characteristics:
- Safety switches with solenoid
- Housing material:
- Polymer thermoplastic
- Cable entry:
- 3 x M20
- Type of solenoid:
- Energised
- Solenoid voltage supply:
- 24VAC/DC
- Type of contacts:
- 1NC (Key), 2NC+1NO (Solenoid)
| Order code | KEN1E1024F |
|---|---|
| Weight [g] | 447.8 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 200X045X045 |
| Volume [cm³] | 405 |
| Bar code [EAN13] | 8013975233993 |
| HS Code | 85365080 |
300.9 £
| Feature Name | Feature Value |
|---|---|
| Alignment of the control element (EF008793) | Other |
| Type of interface (EF006977) | None |
| Type of control element (EF006976) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| Construction type housing (EF004008) | Cuboid |
| Explosion safety category for dust (EF003998) | None |
| Explosion safety category for gas (EF003997) | None |
| Type of electric connection (EF003961) | Cable entry metrical |
| Type of interface for safety communication (EF003956) | None |
| Coating housing (EF001601) | Other |
| Housing material (EF001596) | Plastic |
| Switching function (EF000189) | Other |
| Ambient temperature during operating (EF007515) | -25 °C |
| Switching function latching (EF007447) | No |
| Output electronic (EF006987) | No |
| Forced opening (EF006694) | No |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 3 |
| Length of sensor (EF007334) | 42 mm |
| Height of sensor (EF007283) | 190 mm |
| Width sensor (EF007094) | 40 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| KEN1E1024F KEN1E1024F 09-Limit-micro-and-foot-switches-09-January-2018_EN.pdf | 2 Mbytes |
|
