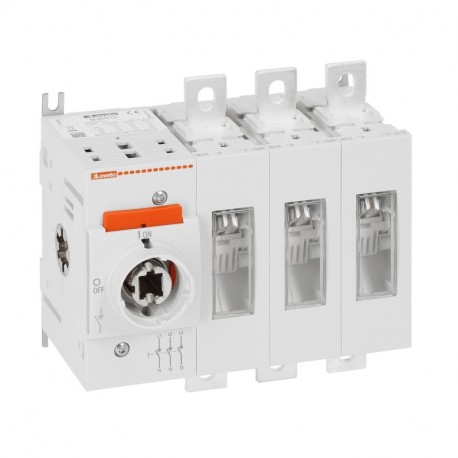

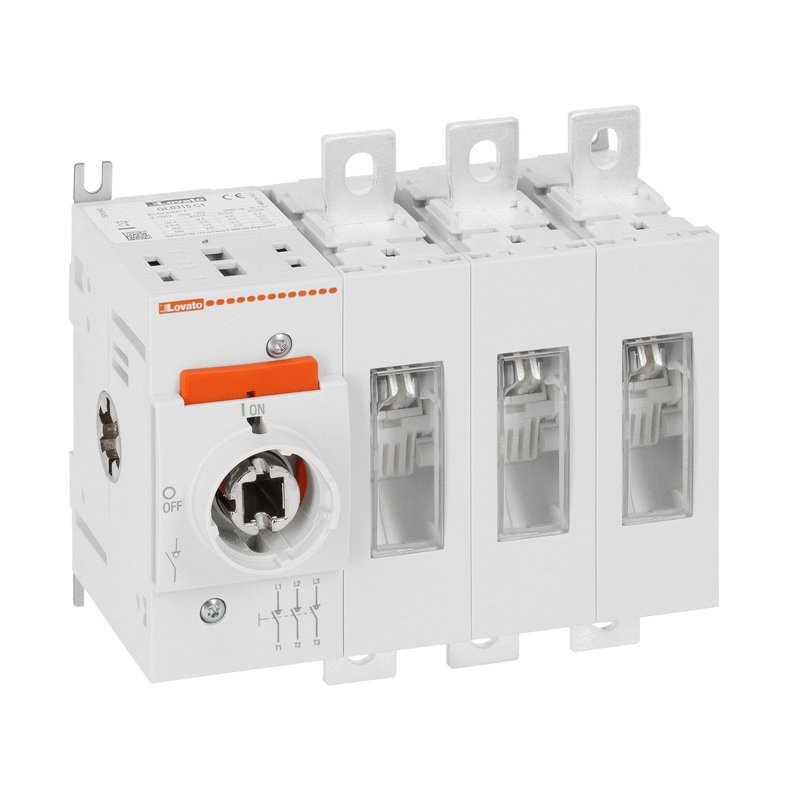

GL0250C1 LOVATO Disconnector three-pole bottom cabinet 250A AC21A C1
GL0250C1
LOVATO ELECTRIC
Disconnector three-pole bottom cabinet 250A AC21A C1
3P SWITCH DISCONNECTOR 250A AC21A C1
Three-pole switch disconnector, IEC/EN, 250A
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲| Order code | GL0250C1 |
| Weight [g] | 1740 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 160X168X105 |
| Volume [cm³] | 2822.4 |
| Bar code [EAN13] | 8013975228623 |
| HS Code | 85365080 |
Dimensions
Wiring diagram
Certifications:
EAC
EAC
Compliance:
IEC/EN 60947-3
IEC/EN 60947-1
IEC/EN 60947-3
IEC/EN 60947-1
| Product designation | Switch disconnector | |||
| Product type designation | GL | |||
| Number of poles | Nr. | 3 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 250 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 12 | ||
| Operating current Ie | ||||
| AC21A | ||||
| 400V | A | 250 | ||
| 500V | A | 250 | ||
| 690V | A | 250 | ||
| AC22A | ||||
| 400V | A | 250 | ||
| 500V | A | 250 | ||
| 690V | A | 250 | ||
| AC23A | ||||
| 400V | A | 250 | ||
| 500V | A | 250 | ||
| 690V | A | 250 | ||
| Power dissipation per pole max | W | 6.5 | ||
| Rated operational power AC23A | ||||
| 400V | kW | 140 | ||
| 690V | kW | 250 | ||
| Reactive power for control of capacitors at | ||||
| 400V | kvar | 115 | ||
| Rated short time current (1s) Icw (rms) | kA | 8 | ||
| Conditional short-circuit current (rms) | kA | 100 | ||
| Short-circuit protection with fuse | Class/A | gG/250 | ||
| Making capacity AC23A 400V | A | 2500 | ||
| Breaking capacity AC23A 400V | A | 2000 | ||
| Mechanical life | cycles | 20000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | Screw / DIN rail 35mm | |||
| Terminals | ||||
| type | M8 x 25 | |||
| Tightening torque for terminals | ||||
| min | Nm | 15 | ||
| max | Nm | 22 | ||
| min | Ibin | 132 | ||
| max | Ibin | 194 | ||
| Conductor section | ||||
| IEC min | mm² | 70 | ||
| IEC max | mm² | 185 | ||
| AWG/kcmil min | 00 | |||
| AWG/kcmil max | 400 | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Max altitude | m | 3000 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
