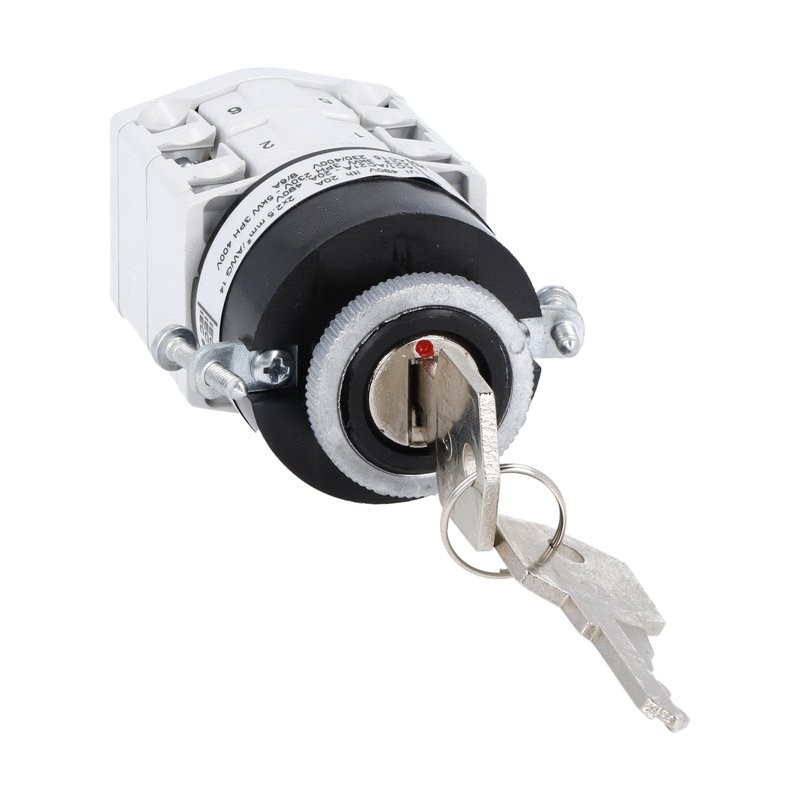

GF2010U12 LOVATO ON-OFF 3P 20A W KEY OPER. W/O PLATE D.22
GF2010U12
LOVATO ELECTRIC
ON-OFF 3P 20A W KEY OPER. W/O PLATE D.22
Rotary cam switch GF series, ON-OFF switch 3 poles 20A, for front mounting without front plate with key operation for hole Ø22mm fixing
ROTARY CAM SWITCH GF SERIES, ON-OFF SWITCH 3 POLES 20A, FOR FRONT MOUNTING WITHOUT FRONT PLATE WITH KEY OPERATION FOR HOLE DIAM. 22MM FIXING
Low-voltage industrial components > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲GF2010U12
Rotary cam switch GF series, ON-OFF switch 3 poles 20A, for front mounting without front plate with key operation for hole Ø22mm fixing
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 10 - ON/OFF switch 3 poles
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
- Series:
- GF - compact series
| Order code | GF2010U12 |
|---|---|
| Weight [g] | 130.5 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | |
| Volume [cm³] | 0 |
| Bar code [EAN13] | 3850144079236 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Key |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | On/Off switch |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 4 |
| Rated permanent current Iu (EF001389) | 20 A |
| Rated operation power at AC-3, 400 V (EF001364) | 5 kW |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
