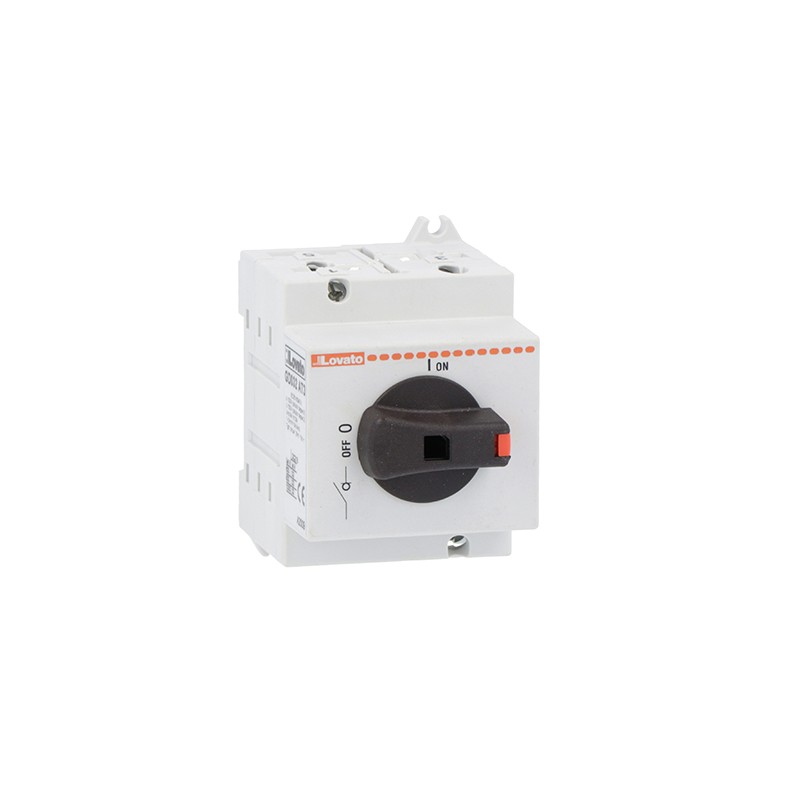

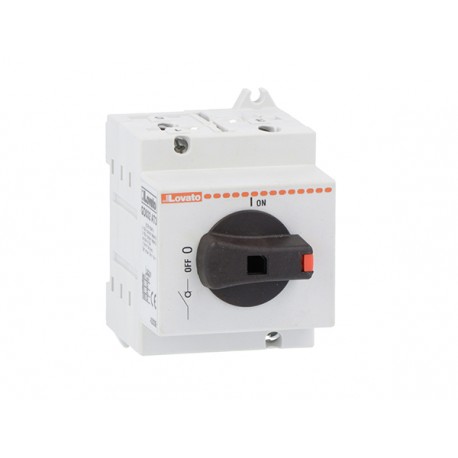

GD040AT3 LOVATO Tripolar disconnector for Photovoltaic applications 40A
GD040AT3
LOVATO ELECTRIC
Tripolar disconnector for Photovoltaic applications 40A
Switch disconnector, for photovoltaic applications, direct operating version, complete with black handle, 40A 800VDC - 32A 1000VDC
Low-voltage industrial components > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲GD040AT3
Switch disconnector, for photovoltaic applications, direct operating version, complete with black handle, 40A 800VDC - 32A 1000VDC
Technical specifications
- Type of product:
- Switch disconnectors
- Number of poles:
- 2
- Type of operating voltage:
- DC
- IEC Conventional free air thermal current Ith [A]:
- 40
- Type of installation:
- Screw on plate or 35mm DIN rail
- For photovoltaic application:
- Yes
| Order code | GD040AT3 |
|---|---|
| Weight [g] | 190 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 083X060X094 |
| Volume [cm³] | 468.12 |
| Bar code [EAN13] | 3850144156456 |
| HS Code | 85365080 |
229.68 £
| Feature Name | Feature Value |
|---|---|
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Rated operating voltage (EF001435) | 800 V |
| Version as reversing switch (EF009408) | No |
| Voltage release optional (EF007491) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting 4-hole (EF007247) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as main switch (EF006981) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Interlockable (EF006281) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of poles (EF001391) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
