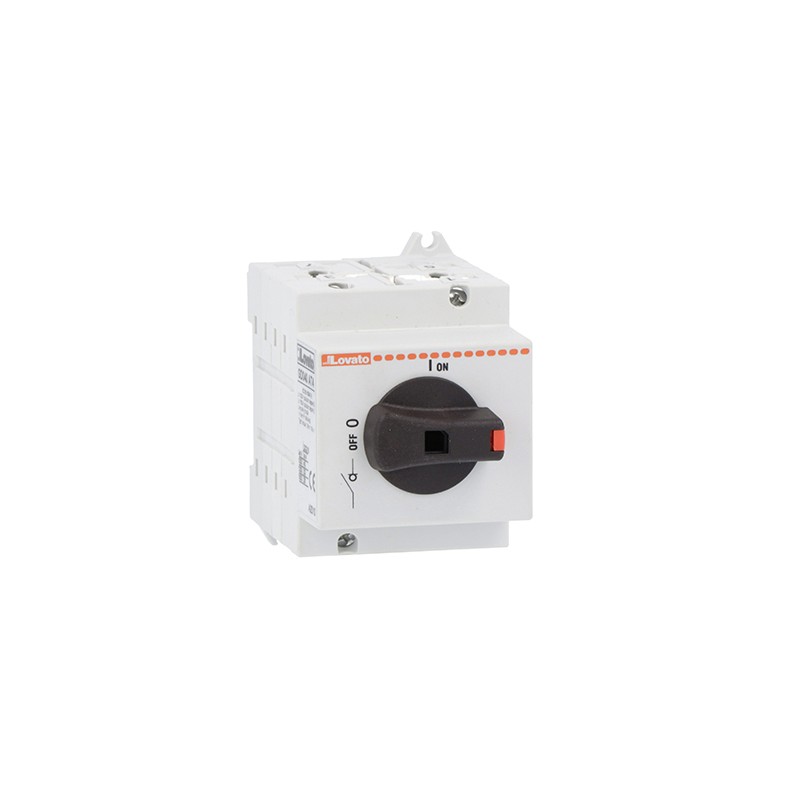

GD032AT4 LOVATO Tripolar disconnector for Photovoltaic applications 32A
GD032AT4
LOVATO ELECTRIC
Tripolar disconnector for Photovoltaic applications 32A
Switch disconnector, for photovoltaic applications, direct operating version, complete with black handle, 25A 1200VDC - 20A 1500VDC
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | GD032AT4 |
| Weight [g] | 240 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 083X060X094 |
| Volume [cm³] | 468.12 |
| Bar code [EAN13] | 3850144156470 |
| HS Code | 85365080 |
EAC
IEC/EN 60947-3
IEC/EN 60947-1
| Product designation | Switch disconnector | |||
| Product type designation | GD | |||
| Number of poles | Nr. | 4 | ||
| Operating voltage type | DC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 32 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operating current Ie | ||||
| DC21A | ||||
| 600V | A | 32 | ||
| 800V | A | 32 | ||
| 1000V | A | 32 | ||
| 1200V | A | 25 | ||
| 1500V | A | 20 | ||
| Power dissipation per pole max | W | 1,2 | ||
| Mechanical life | cycles | 10000 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Fixing | Screw / DIN rail 35mm | |||
| Terminals | ||||
| type | Screw with washer | |||
| tool | Phillips 1 | |||
| Tightening torque for terminals | ||||
| min | Nm | 1.2 | ||
| max | Nm | 1.6 | ||
| min | Ibin | 1.3 | ||
| max | Ibin | 1.2 | ||
| Conductor section | ||||
| IEC min | mm² | 1 | ||
| IEC max | mm² | 10 | ||
| AWG/kcmil min | 18 | |||
| AWG/kcmil max | 8 | |||
| UL technical data | ||||
| UL Standard | UL60947-4-1 | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Frontal IP degree | IP20 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
