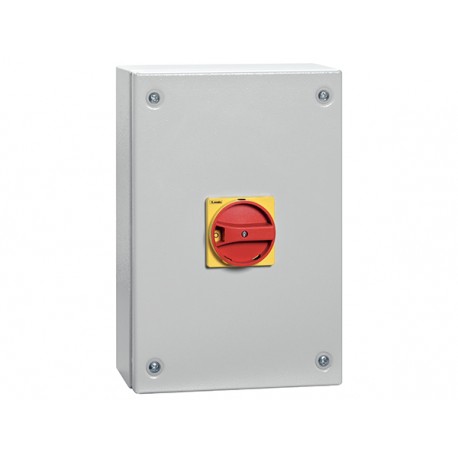

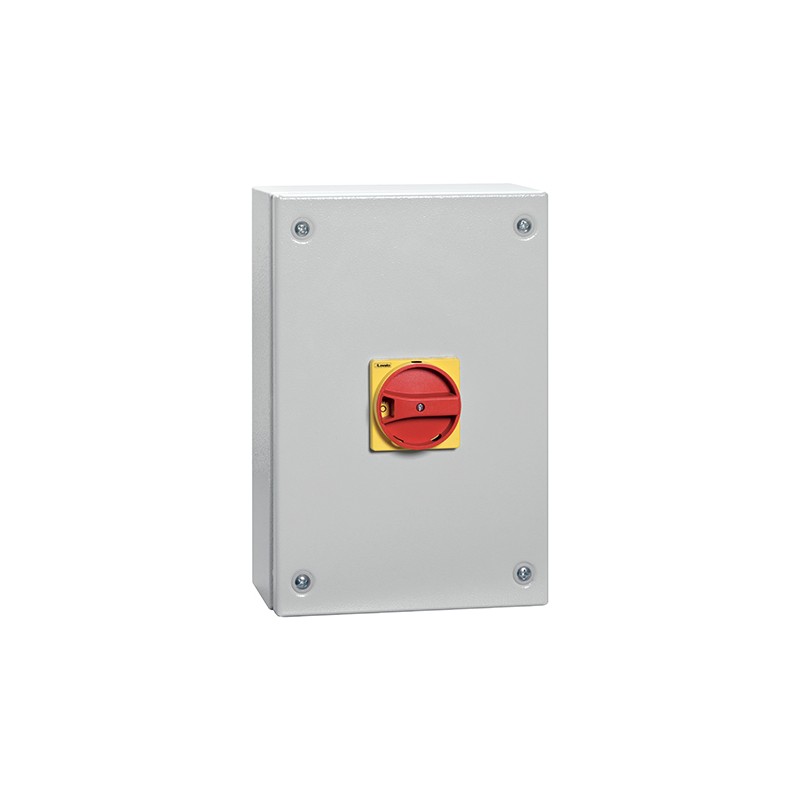

GAZM160T4 LOVATO 4P SWITCH 160A GA-MET ENCL-R/Y HANDLE
GAZM160T4
LOVATO ELECTRIC
4P SWITCH 160A GA-MET ENCL-R/Y HANDLE
IEC/EN type IP65 metal enclosure switch disconnector, four-pole. With rotating red/yellow handle, 160A
Switch disconnectors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | GAZM160T4 |
| Weight [g] | 2360 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 210X170X170 |
| Volume [cm³] | 6069 |
| Bar code [EAN13] | 8013975235324 |
| HS Code | 85365080 |
Dimensions
Wiring diagram
Certifications:
Compliance:
IEC/EN 60947-3
IEC/EN 60947-1
IEC/EN 60947-3
IEC/EN 60947-1
| Product designation | Enclosed switch disconnector | |||
| Product type designation | GAZM | |||
| Number of poles | Nr. | 4 | ||
| Operating voltage type | AC | |||
| Contact characteristics | ||||
| IEC Conventional free air thermal current Ith | A | 160 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operating current Ie | ||||
| AC21A | ||||
| 400V | A | 160 | ||
| 500V | A | 160 | ||
| 690V | A | 160 | ||
| AC22A | ||||
| 400V | A | 160 | ||
| 500V | A | 125 | ||
| 690V | A | 125 | ||
| AC23A | ||||
| 400V | A | 125 | ||
| 500V | A | 100 | ||
| 690V | A | 47 | ||
| Power dissipation per pole max | W | 12 | ||
| Rated operational power AC23A | ||||
| 400V | kW | 55 | ||
| 690V | kW | 45 | ||
| Conditional short-circuit current (rms) | kA | 50 | ||
| Short-circuit protection with fuse | Class/A | gG160 | ||
| Making capacity AC23A 400V | A | 1250 | ||
| Breaking capacity AC23A 400V | A | 1000 | ||
| Mechanical life | cycles | 30000 | ||
| Electrical life AC21A | cycles | 1500 | ||
| Mechanical features | ||||
| Operating position | ||||
| normal | Vertical plan | |||
| allowable | Any | |||
| Terminals | ||||
| type | Pillar | |||
| width | mm | 12.4 | ||
| height | mm | 10.4 | ||
| screw | M8 | |||
| tool | Metric Allen key 4 | |||
| Tightening torque for terminals | ||||
| min | Nm | 5 | ||
| max | Nm | 6 | ||
| min | Ibin | 45 | ||
| max | Ibin | 54 | ||
| Conductor section | ||||
| IEC min | mm² | 4 | ||
| IEC max | mm² | 70 | ||
| AWG/kcmil min | 12 | |||
| AWG/kcmil max | 1 | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Frontal IP degree | IP65 | |||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000216 - Switch disconnector | |||
