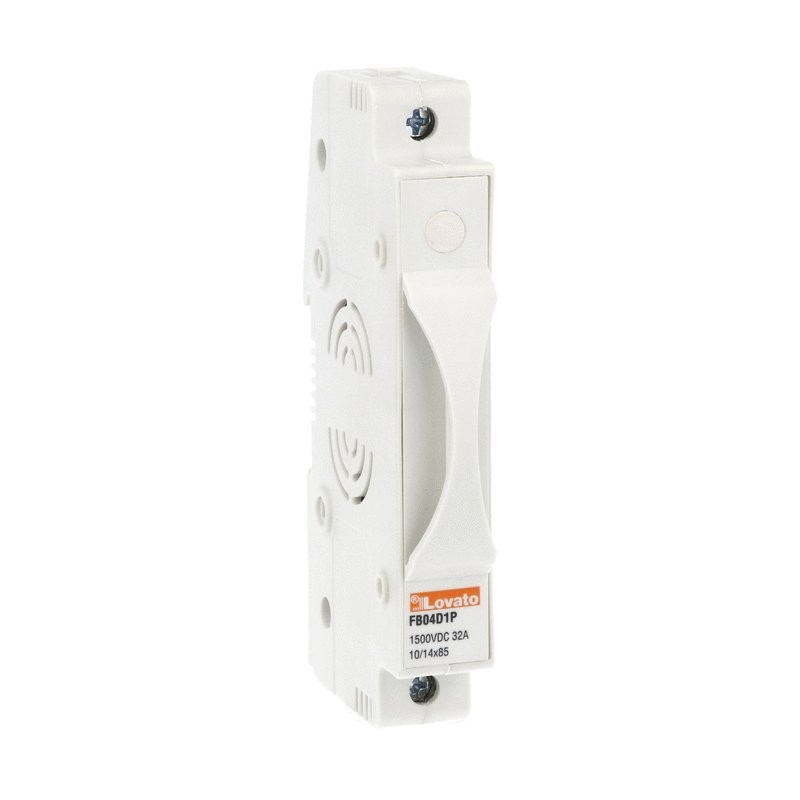

FB04D1P LOVATO FUSE HOLDER 1P 10-14X52 1500VDC
FB04D1P
LOVATO ELECTRIC
FUSE HOLDER 1P 10-14X52 1500VDC
Fuse holder for photovoltaic applications, for 10X85mm and 14X85mm fuses. 32A rated current at 1500VDC, 1P. Without status indicator. 1 module
Circuit breakers and fuses > Holder for cylindrical fuse
Fuse holders and fuses - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲FB04D1P
Fuse holder for photovoltaic applications, for 10X85mm and 14X85mm fuses. 32A rated current at 1500VDC, 1P. Without status indicator. 1 module
Technical specifications
- Type of product:
- Fuse holders - 10/14x85mm
- Number of poles:
- 1P
- Type of operating voltage:
- DC
- IEC maximum rated voltage Un [V]:
- 1500
- IEC maximum rated current In [A]:
- 32
- Light indicator:
- Yes
- Compliance:
- IEC
- For photovoltaic application:
- Yes
| Order code | FB04D1P |
|---|---|
| Weight [g] | 109 |
| Qty. per package | 6 |
| Multiple qty. of packs per order | 6 |
| Package dimensions [mm] | 140X080X135 |
| Volume [cm³] | 252 |
| Bar code [EAN13] | 8013975299739 |
| HS Code | 85389099 |
| Feature Name | Feature Value |
|---|---|
| For fuse size (EF008316) | 10x85 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Mounting method (EF000003) | DIN rail |
| With optical defect indication (EF008181) | No |
| Concurrently switching neutral conductor (EF005997) | No |
| Lockable (EF000113) | No |
| Width in number of modular spacings (EF002950) | 1 |
| Number of poles (EF001391) | 1 |
| Built-in depth (EF000218) | 69.5 mm |
| Nominal voltage (EF000002) | 1500 V |
Datasheet - PDF
