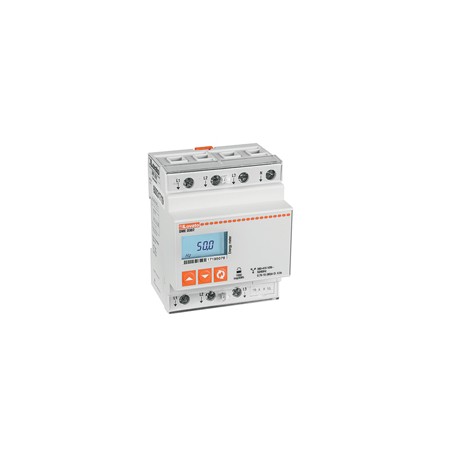

DMED302 LOVATO ENERGY METER, THREE PHASE WITH NEUTRAL, NON EXPANDABLE, 80A DIRECT CONNECTION, 4U, M-BUS INTE..
DMED302
LOVATO ELECTRIC
ENERGY METER, THREE PHASE WITH NEUTRAL, NON EXPANDABLE, 80A DIRECT CONNECTION, 4U, M-BUS INTERFACE, MULTI-MEASUREMENTS
MOD. (4U) 3-PH ENERGY METER, 80A , MBUS
Metering instruments and current transformers - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
More info
▲| Order code | DMED302 |
| Weight [g] | 374 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 153X117X092 |
| Volume [cm³] | 1647 |
| Bar code [EAN13] | 8013975230480 |
| HS Code | 90283019 |
EAC
RCM
IEC/EN 61010-1
IEC/EN 61010-2-030
IEC/EN 50470-1
| Product designation | Three-phase energy meters | |||
| Product type designation | DMED302 | |||
| Type | Three-phase + neutral | |||
| DIN rail module number | 4 | |||
| Auxiliary supply Us | ||||
| Operational frequency | ||||
| min | Hz | 50 | ||
| max | Hz | 60 | ||
| Power consumption | ||||
| Max | VA | 20 | ||
| Power dissipation Max | W | 1.35 | ||
| Measuring voltage inputs | ||||
| Rated voltage (Ue) | ||||
| phase-phase | VAC | 380…415 | ||
| phase-neutral | VAC | 220…240 | ||
| Operating voltage range | ||||
| phase-phase | VAC | 323…456 | ||
| phase-neutral | VAC | 187…264 | ||
| Connection method | Direct | |||
| Current | ||||
| IEC maximum (Imax) | A | 63 | ||
| IEC minimum (Imin) | A | 0.5 | ||
| IEC rated (Iref-lb) | A | 10 | ||
| IEC start (Ist) | mA | 40 | ||
| Transition (Itr) | A | 1 | ||
| Accuracy | ||||
| Measurement conditions (T +23°C ±1°C / Rel. Humidity 45 ±15% R.H.) | ||||
| active energy | Class 1 | |||
| Output characteristics | ||||
| LED Pulse rate | pulse/kWh | 1000 | ||
| LED Pulse duration | ms | 30 | ||
| Static output pulse rate | pulse/kWh | 1-10-100-1000 programmable | ||
| Static output pulse duration | ms | 100 for 1-10-10 pulse; 60 for 1000 pulse | ||
| Static output external voltage | VDC | 10…30 | ||
| Static outputs Maximum current | mA | 50 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 250 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Operating frequency withstand voltage | kV | 4 | ||
| Mechanical features | ||||
| Housing type | Polyamide | |||
| Terminals type | Fixed | |||
| Conductor cross section | ||||
| min | mm² | 2.5 | ||
| Max | mm² | 16 | ||
| min | AWG | 16 | ||
| Max | AWG | 6 | ||
| Tightening torque (Max) | ||||
| Nm | 2 | |||
| lbin | 14 | |||
| Fixing | DIN rail | |||
| Weight | g | 360 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -25 | ||
| max | °C | +70 | ||
| Relative humidity | % | <80 | ||
| Maximum Pollution degree | 2 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001506 - Kilowatt-hour meter | |||
