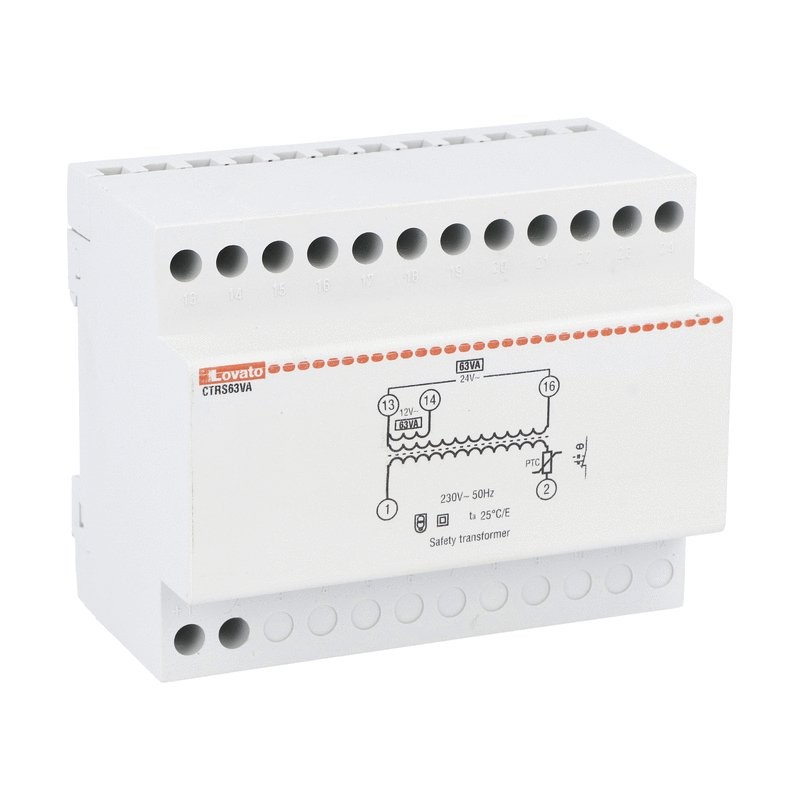

CTRS63VA LOVATO Modular safety transformer 63 VA Aliment voltage. AC 230V, AC Output Voltage 12 24V
CTRS63VA
LOVATO ELECTRIC
Modular safety transformer 63 VA Aliment voltage. AC 230V, AC Output Voltage 12 - 24V
Modular safety transformer, 63VA, 230VAC, 12...24VAC
Modular contactors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | CTRS63VA |
| Weight [g] | 1327.2 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 115X075X110 |
| Volume [cm³] | 948.75 |
| Bar code [EAN13] | 8013975244920 |
| HS Code | 85043180 |
Dimensions
Wiring diagram
Certifications:
Compliance:
IEC/EN 61558-2-8
IEC/EN 61558-2-8
| Product designation | Safety transformer | |||
| Product type designation | CTRS | |||
| Operating voltage type | AC | |||
| Number of DIN modules | 6 | |||
| Electrical features | ||||
| Output power | VA | 63 | ||
| Supply voltage | VAC | 230 | ||
| Rated output voltage | VAC | 12...24 | ||
| Control circuit | ||||
| Auxiliary rated supply voltage Us | 230VAC | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -10 | ||
| max | °C | +25 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Mechanical features | ||||
| Tightening torque for terminals | ||||
| max | Nm | 1 | ||
| Conductor section | ||||
| Power terminal | ||||
| min | mm² | 0.5 | ||
| max | mm² | 10 | ||
| Terminals tool | M4 | |||
| Weight | g | 1319 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002486 - One-phase control transformer | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
