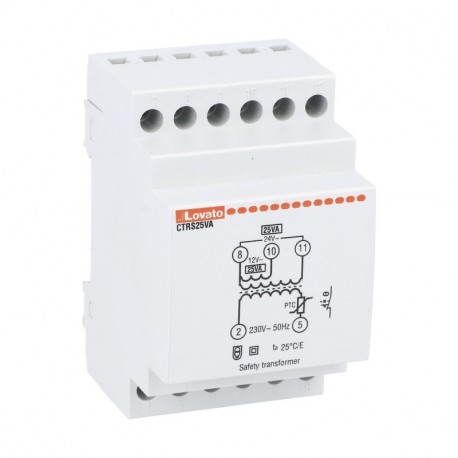

CTRS25VA LOVATO Modular safety transformer 25 VA Aliment voltage. AC 230V, AC Output Voltage 12 24V
CTRS25VA
LOVATO ELECTRIC
Modular safety transformer 25 VA Aliment voltage. AC 230V, AC Output Voltage 12 - 24V
Modular safety transformer, 25VA, 230VAC, 12...24VAC
Low-voltage industrial components > One-phase control transformer
Modular contactors - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲CTRS25VA
Modular safety transformer, 25VA, 230VAC, 12...24VAC
Technical specifications
- Type of product:
- Modular safety transformers
- Number of DIN modules:
- 3
- Rated supply voltage:
- 230VAC
| Order code | CTRS25VA |
|---|---|
| Weight [g] | 583.7 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 095X070X055 |
| Volume [cm³] | 365.75 |
| Bar code [EAN13] | 8013975244906 |
| HS Code | 85043180 |
59.06 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Conductor material (EF001622) | Other |
| Secondary voltage 2 (EF007474) | 24 V |
| Secondary voltage 1 (EF007472) | 12 V |
| Primary voltage 1 (EF006125) | 230 V |
| Short-circuit-proof (EF007332) | Yes |
| Built as isolating transformer (EF007238) | No |
| Built as safety transformer (EF007235) | Yes |
| Built as energy saving transformer (EF007005) | No |
| Ring core (EF006170) | No |
| Suitable for mounting on PCB (EF006157) | No |
| Modular version (EF001126) | Yes |
| Rated apparent power (EF008864) | 25 VA |
| Depth (EF000049) | 63 mm |
| Height (EF000040) | 85 mm |
| Width (EF000008) | 52.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
