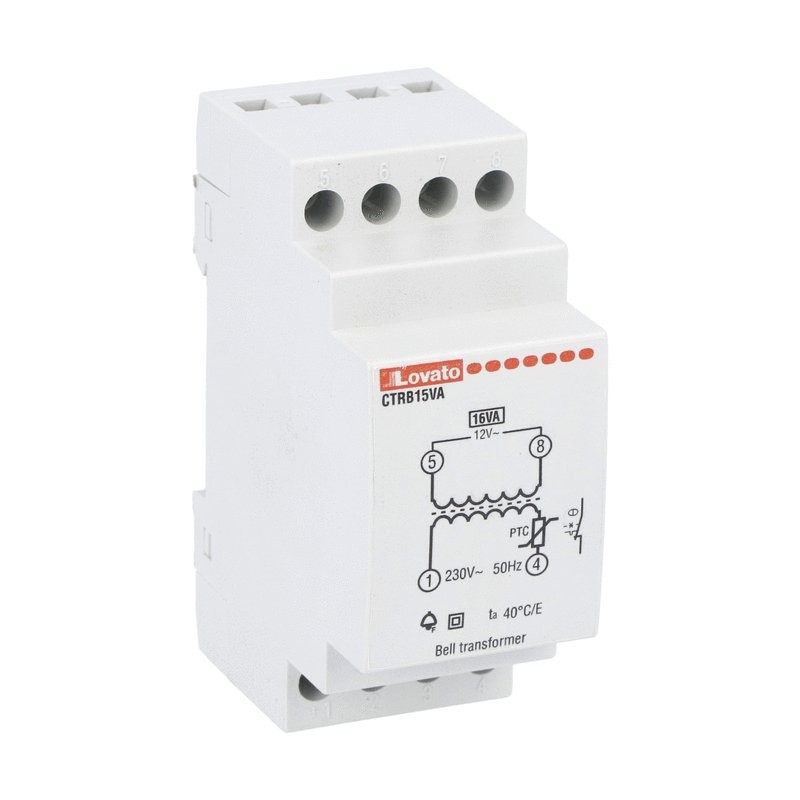

CTRB15VA LOVATO Transformer for 15V Aliment voltage hood. AC 230V, AC Output Voltage 12V
CTRB15VA
LOVATO ELECTRIC
Transformer for 15V Aliment voltage hood. AC 230V, AC Output Voltage 12V
Modular transformer for 15VA bell, 230VAC, 12VAC
Modular contactors - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲| Order code | CTRB15VA |
| Weight [g] | 340.4 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 095X070X040 |
| Volume [cm³] | 266 |
| Bar code [EAN13] | 8013975244883 |
| HS Code | 85043180 |
Dimensions
Wiring diagram
Certifications:
Compliance:
IEC/EN 62080
IEC/EN 62080
| Product designation | Bell/Buzzer transformer | |||
| Product type designation | CTRB | |||
| Operating voltage type | AC | |||
| Number of DIN modules | 2 | |||
| Electrical features | ||||
| Power consumption | VA | 10 | ||
| Supply voltage | VAC | 230 | ||
| Rated output voltage | VAC | 12 | ||
| Control circuit | ||||
| Auxiliary rated supply voltage Us | 230VAC | |||
| Ambient conditions | ||||
| Operating temperature | ||||
| min | °C | -10 | ||
| max | °C | +40 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Mechanical features | ||||
| Tightening torque for terminals | ||||
| max | Nm | 0.5 | ||
| Conductor section | ||||
| Power terminal | ||||
| min | mm² | 0.5 | ||
| max | mm² | 1.5 | ||
| Terminals tool | M3 | |||
| Weight | g | 339 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC001547 - Bell transformer | |||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 178 Mbytes |
|
