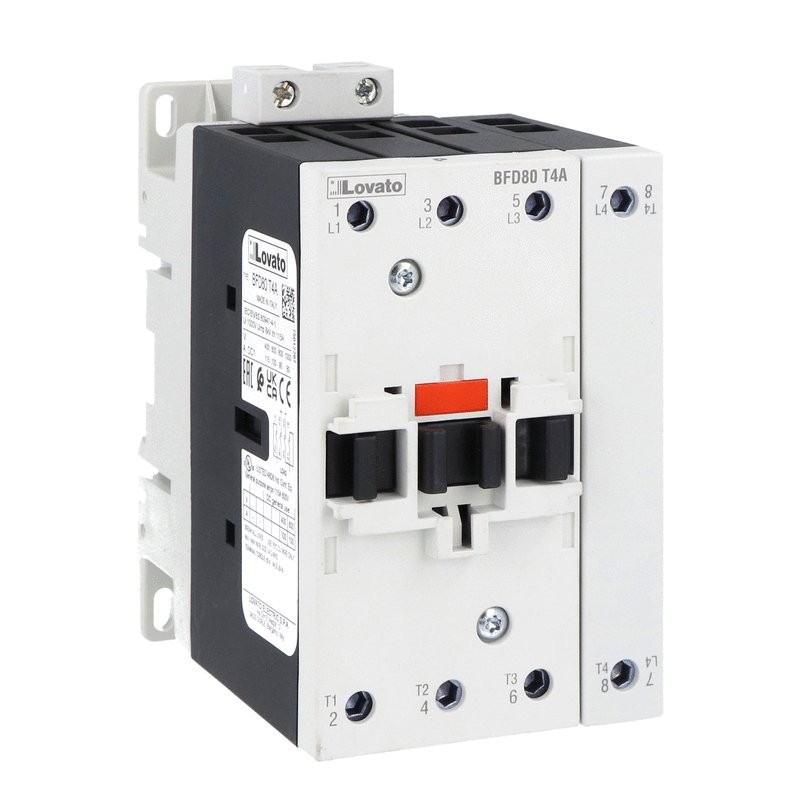

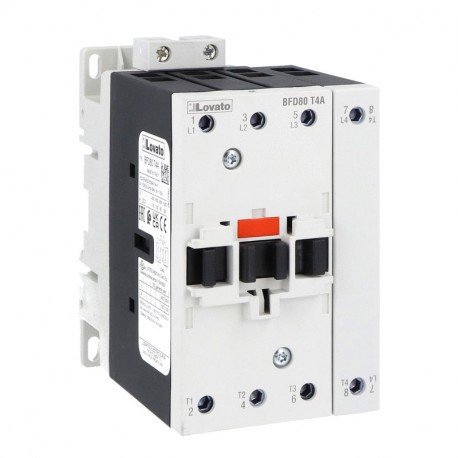

BFD80T4A02460 LOVATO 4P CONTACT. 90A/1000V DC1 24VAC 60HZ
BFD80T4A02460
LOVATO ELECTRIC
4P CONTACT. 90A/1000V DC1 24VAC 60HZ
Four-pole contactor, 80A/1000V DC1, AC coil, 24VAC 60Hz
Low-voltage industrial components > Power contactor, DC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BFD80T4A02460
Four-pole contactor, 80A/1000V DC1, AC coil, 24VAC 60Hz
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 4
- Type of coil:
- AC coil 60Hz
- Rated coil voltage [V]:
- 24
- IEC operating current Ith (AC1) [A]:
- 160
- Type of mounting:
- Screw / DIN rail 35mm
| Order code | BFD80T4A02460 |
|---|---|
| Weight [g] | 1240 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 141X080X120 |
| Volume [cm³] | 1354 |
| Bar code [EAN13] | 8013975224274 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Modular version (EF001126) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 4 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
