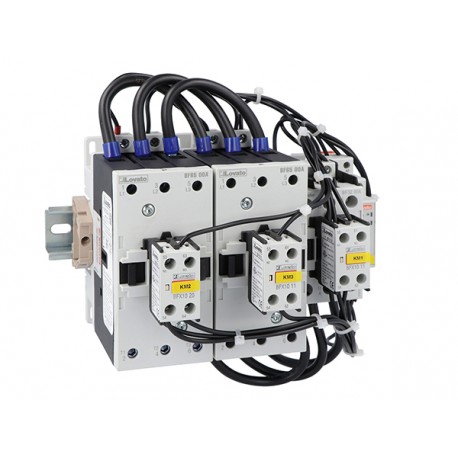

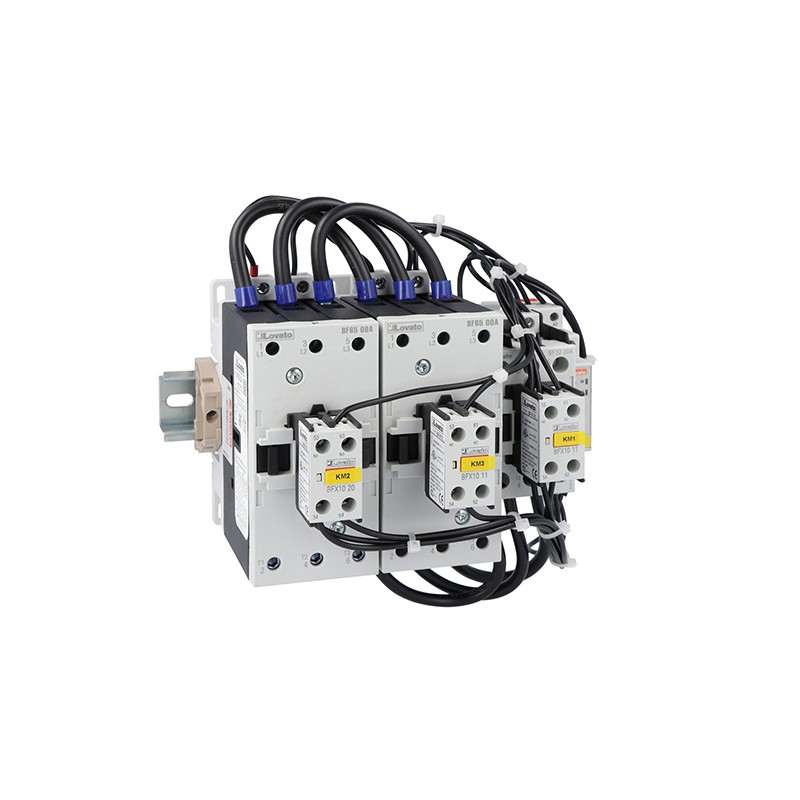

BFA0657012060 LOVATO S-D STARTER 110A 120 60HZ W/O RELAY
BFA0657012060
LOVATO ELECTRIC
S-D STARTER 110A 120 60HZ W/O RELAY
Completa star-delta starter, open frame, for starting time up to 12 seconds and a maximum of 30 operations/hour, max IEC operating current 110A. Coil voltage 120VAC 60Hz
COMPLETE STAR-DELTA STARTER, OPEN FRAME, FOR STARTING TIME UP TO 12 SECONDS AND A MAXIMUM OF 30 OPERATIONS/HOUR, MAX IEC OPERATING CURRENT 110A. COIL VOLTAGE 120VAC 60HZ
Low-voltage industrial components > Motor starter/Motor starter combination
Electromechanical starters - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲BFA0657012060
Completa star-delta starter, open frame, for starting time up to 12 seconds and a maximum of 30 operations/hour, max IEC operating current 110A. Coil voltage 120VAC 60Hz
Technical specifications
- Type of product:
- Star-delta starters
- UL/CSA horsepower ratings 480V [HP]:
- 60
- Type:
- Open frame
- Type of coil:
- AC coil
- Contactor coil voltage:
- 120VAC 60HZ
| Order code | BFA0657012060 |
|---|---|
| Weight [g] | 3167.5 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 245X227X200 |
| Volume [cm³] | 11123 |
| Bar code [EAN13] | 8013975231678 |
| HS Code | 85371098 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Type of motor starter (EF009598) | Star-delta starter |
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated control supply voltage AC 60 Hz (EF003979) | 120 V |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| With fuse (EF006693) | No |
| With short-circuit release (EF006691) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Suitable for rail mounting (EF003972) | Yes |
| External reset possible (EF003426) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for LON (EF003017) | No |
| Suitable for emergency stop (EF001433) | No |
| With transformer (EF000278) | No |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | 50000 A |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | 50000 A |
| Ambient temperature, upper operating limit (EF009603) | 70 °C |
| Rated operation current at AC-3, 400 V (EF009602) | 110 A |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | 30 kW |
| Number of indicator lights (EF001965) | 0 |
| Rated operation current Ie (EF001443) | 110 A |
| Rated operation power at AC-3, 400 V (EF001364) | 55 kW |
| Depth (EF000049) | 152 mm |
| Height (EF000040) | 159 mm |
| Width (EF000008) | 220 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
