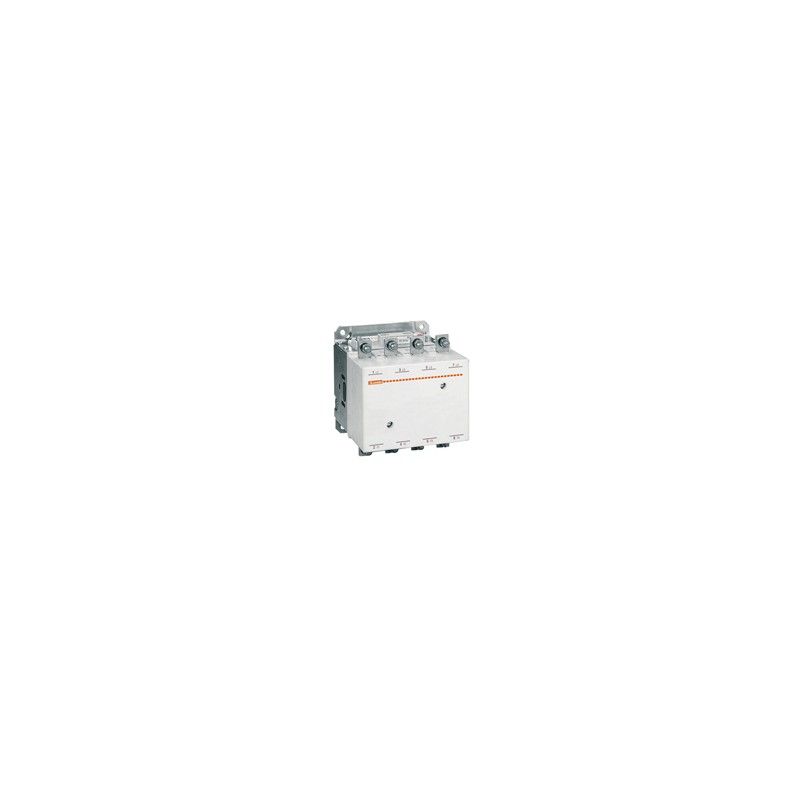

FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 350A, AC/DC COIL, 60VAC/DC
Tetrapolar Contactor 350A AC1 Coil 60V AC/DC
Industrial Contactors and Accessories - LOVATO ELECTRIC
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Order code | 11B25040060 |
Weight [g] | 10800 |
Qty. per package | 1 |
Multiple qty. of packs per order | 1 |
Package dimensions [mm] | 208X196X227 |
Volume [cm³] | 9254.336 |
Bar code [EAN13] | 8013975048030 |
HS Code | 85365080 |
Product designation | Power contactor | |||
Product type designation | B250 | |||
Contact characteristics | ||||
Number of poles | nr. | 4 | ||
Rated insulation voltage Ui IEC/EN | V | 1000 | ||
Rated impulse withstand voltage Uimp | kV | 8 | ||
Operational frequency | ||||
min | Hz | 25 | ||
max | Hz | 400 | ||
IEC Conventional free air thermal current Ith | A | 350 | ||
Operational current Ie | ||||
AC-1 (≤40°C) | A | 350 | ||
AC-1 (≤55°C) | A | 300 | ||
AC-1 (≤70°C) | A | 250 | ||
AC-3 (≤440V ≤55°C) | A | 265 | ||
AC-4 (400V) | A | 92 | ||
Rated operational power AC-1 (T≤40°C) | ||||
230V | kW | 124 | ||
400V | kW | 214 | ||
500V | kW | 282 | ||
690V | kW | 380 | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series | ||||
75V | A | 350 | ||
110V | A | 160 | ||
220V | A | -- | ||
330V | A | -- | ||
460V | A | -- | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series | ||||
75V | A | 350 | ||
110V | A | 300 | ||
220V | A | 250 | ||
330V | A | -- | ||
460V | A | -- | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series | ||||
75V | A | 350 | ||
110V | A | 300 | ||
220V | A | 300 | ||
330V | A | 250 | ||
460V | A | -- | ||
IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
75V | A | 350 | ||
110V | A | 300 | ||
220V | A | 300 | ||
330V | A | 300 | ||
460V | A | 250 | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series | ||||
75V | A | 280 | ||
110V | A | 150 | ||
220V | A | -- | ||
330V | A | -- | ||
460V | A | -- | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series | ||||
75V | A | 280 | ||
110V | A | 250 | ||
220V | A | 200 | ||
330V | A | -- | ||
460V | A | -- | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series | ||||
75V | A | 280 | ||
110V | A | 280 | ||
220V | A | 250 | ||
330V | A | 200 | ||
460V | A | -- | ||
IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series | ||||
75V | A | 280 | ||
110V | A | 280 | ||
220V | A | 280 | ||
330V | A | 200 | ||
460V | A | 200 | ||
Short-time allowable current for 10s (IEC/EN60947-1) | A | 2200 | ||
Protection fuse | ||||
gG (IEC) | A | 400 | ||
aM (IEC) | A | 250 | ||
Making capacity (RMS value) | A | 2750 | ||
Breaking capacity at voltage | ||||
440V | A | 2500 | ||
500V | A | 2250 | ||
690V | A | 2200 | ||
Resistance per pole (average value) | mΩ | 0.2 | ||
Power dissipation per pole (average value) | ||||
Ith | W | 24.5 | ||
AC3 | W | 12.5 | ||
Tightening torque for terminals | ||||
min | Nm | 35 | ||
max | Nm | 35 | ||
min | Ibin | 25.8 | ||
max | Ibin | 25.8 | ||
Tightening torque for coil terminal | ||||
min | Nm | 1 | ||
max | Nm | 1 | ||
min | Ibft | 0.74 | ||
max | Ibft | 0.74 | ||
Max number of wires simultaneously connectable | nr. | 2 | ||
Power terminal protection according to IEC/EN 60529 | IP00 | |||
Mechanical features | ||||
Operating position | ||||
normal | Vertical plan | |||
allowable | ±30° | |||
Fixing | Screw | |||
Weight | g | 1080 | ||
Operations | ||||
Mechanical life | cycles | 10000000 | ||
Electrical life | cycles | 1000000 | ||
Safety related data | ||||
Performance level B10d according to EN/ISO 13489-1 | ||||
rated load | cycles | 1000000 | ||
mechanical load | cycles | 10000000 | ||
Mirror contats according to IEC/EN 609474-4-1 | yes | |||
EMC compatibility | yes | |||
AC coil operating | ||||
Rated AC voltage at 50/60Hz | V | 60 | ||
AC operating voltage | ||||
of 50/60Hz coil powered at 50Hz | ||||
pick-up | ||||
min | %Us | 80 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 20 | ||
max | %Us | 60 | ||
of 50/60Hz coil powered at 60Hz | ||||
pick-up | ||||
min | %Us | 80 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 20 | ||
max | %Us | 60 | ||
of 60Hz coil powered at 60Hz | ||||
pick-up | ||||
min | %Us | 80 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 20 | ||
max | %Us | 60 | ||
AC average coil consumption at 20°C | ||||
of 50/60Hz coil powered at 50Hz | ||||
in-rush | VA | 300 | ||
holding | VA | 10 | ||
of 50/60Hz coil powered at 60Hz | ||||
in-rush | VA | 300 | ||
holding | VA | 10 | ||
Dissipation at holding ≤20°C 50Hz | W | 10 | ||
DC coil operating | ||||
DC rated control voltage | V | 60 | ||
DC operating voltage | ||||
pick-up | ||||
min | %Us | 80 | ||
max | %Us | 110 | ||
drop-out | ||||
min | %Us | 20 | ||
max | %Us | 60 | ||
Average coil consumption ≤20°C | ||||
in-rush | W | 300 | ||
holding | W | 10 | ||
Max cycles frequency | ||||
Mechanical operation | cycles/h | 2400 | ||
Operating times | ||||
Average time for Us control | ||||
in AC | ||||
Closing NO | ||||
min | ms | 80 | ||
max | ms | 120 | ||
Opening NO | ||||
min | ms | 30 | ||
max | ms | 75 | ||
in DC | ||||
Closing NO | ||||
min | ms | 80 | ||
max | ms | 120 | ||
Opening NO | ||||
min | ms | 30 | ||
max | ms | 75 | ||
UL technical data | ||||
Full-load current (FLA) for three-phase AC motor | ||||
at 480V | A | 240 | ||
at 600V | A | 242 | ||
Yielded mechanical performance | ||||
for three-phase AC motor | ||||
200/208V | HP | 75 | ||
220/230V | HP | 100 | ||
460/480V | HP | 20 | ||
575/600V | HP | 250 | ||
General USE | ||||
Contactor | ||||
AC current | A | 350 | ||
Short-circuit protection fuse, 600V | ||||
Standard fault | ||||
Short circuit current | kA | 18 | ||
Fuse rating | A | 800 | ||
Fuse class | L | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -50 | ||
max | °C | 70 | ||
Storage temperature | ||||
min | °C | -60 | ||
max | °C | 80 | ||
Max altitude | m | 3000 | ||
Resistance & Protection | ||||
Pollution degree | 3 | |||
ETIM classification | ||||
ETIM 8.0 | EC000066 - Power contactor, AC switching |
