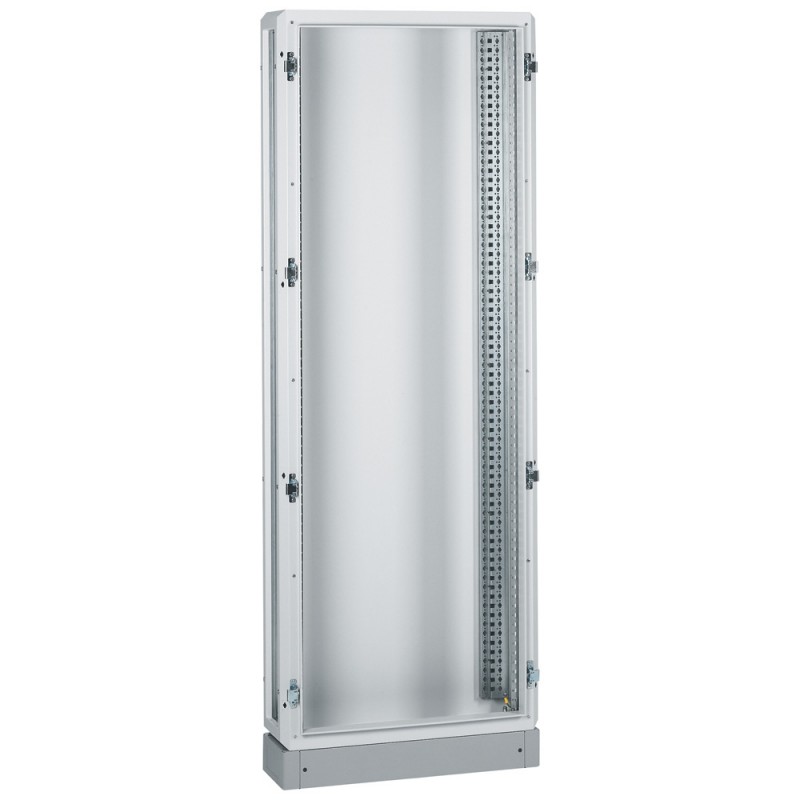

020454 LEGRAND XL3 800 IP 55 METAL L700 H1950
020454
LEGRAND
XL3 800 IP 55 METAL L700 H1950
Distribution cabinet XL3 800 - IP55 - 1995x700x225 mm
Star-delta switches, T3, 32 A, flush mounting, 4 contact unit(s), Contacts: 7, 60 °, maintained, With 0 (Off) position, 0-Y-D, SOND 27, Design number
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Cabinets can be equipped - Include socket, height 100 mm Supplied without side panel Width 700 mm 24 modules per row - total Height: 1995 mm - Height to caps cubrebornas: 1800 mm - external Width: 700 mm - useful Width: 600 mm - depth: 225 mmGeneral characteristics
XL3 800 - cabinets IP 55 - IP 55 with door IK 08 - Cell metal - Suitable for devices up to 630 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 sec - Capacity 24 and 36 modules per row - RAL 7035 (socket RAL 7004) - Coupling horizontal - To outside industrial and urban sheltered| Feature Name | Feature Value |
|---|---|
| Suitable for wall built-in (EF007536) | No |
| Height (EF000040) | 1995 mm |
| Degree of protection (IP) (EF005474) | IP55 |
| Number of doors (EF000122) | 1 |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Material quality (EF001257) | Other |
| Number of locks (EF000123) | 1 |
| Pitched roof (EF009278) | No |
| Degree of protection (NEMA) (EF011959) | Other |
| RAL-number (EF000116) | 7035 |
| With mounting plate (EF000118) | No |
| With ventilation door (EF006279) | No |
| With glazed door (EF001089) | Yes |
| With rear door (EF007381) | No |
| EMC-version (EF001062) | No |
| Mounting plate depth-adjustable (EF006054) | No |
| Impact strength (EF004293) | IK08 |
| Pole fastening (EF009582) | No |
| Depth (EF000049) | 225 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 705 mm |
