LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020424 LEGRAND XL3 EXTERNAL SIDE CELL H1950

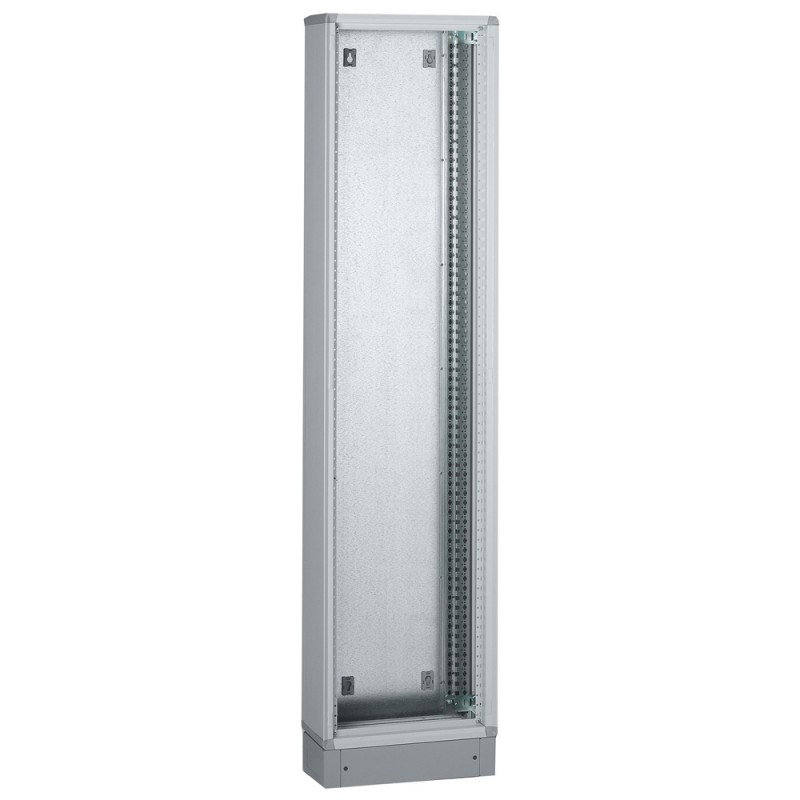

LEGRAND 020424 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020424 LEGRAND XL3 EXTERNAL SIDE CELL H1950

Code: 020424

Manufacturer: LEGRAND

Description:

XL3 EXTERNAL SIDE CELL H1950
XL3 CELL LATERAL EXTERN H1950
Cell external side XL3 800 - for wardrobe ref. 204 09
XL³ 800 external side cell for cabinet ref. 0 204 09

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 401,50 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Cells external lateral Cell side - Are associated with right or left - Are delivered with a plinth of 100 mm height and accessories association - total Height: 1950 mm - Height to caps cubrebornas: 1800 mm - outer Width: 460 mm - Width: 400 mm - depth: 230 mm

General characteristics

XL3 800 - cabinets - IP 43 - IK 08 with kit sealing IP43 and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - Facing metal. Suitable for appliances up to 800 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 s - To install in the ERP - Capacity 24 and 36 modules per row - RAL 7035 - Supplied flat with studs functional fixed on the bottom plate cable entry cut-out accessories and of association (horizontal and vertical)

ETIM for 020424 Cabinets and enclosures (EC002620)

Feature nameHeight (EF000040)
Feature value1950 mm
Feature nameModel (EF000010)
Feature valueCable trough
Feature nameMaterial (EF002169)
Feature valueMetal
Feature nameDepth (EF000049)
Feature value230 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameSuitable for enclosure building width (EF000326)
Feature value460 mm
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameWidth (EF000008)
Feature value460 mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature value230 mm
Feature nameSuitable for enclosure building height (EF009583)
Feature value1950 mm

DATASHEET - PDF

Title
Size
Type
020424 EN_020401.pdf
499 Kbytes
