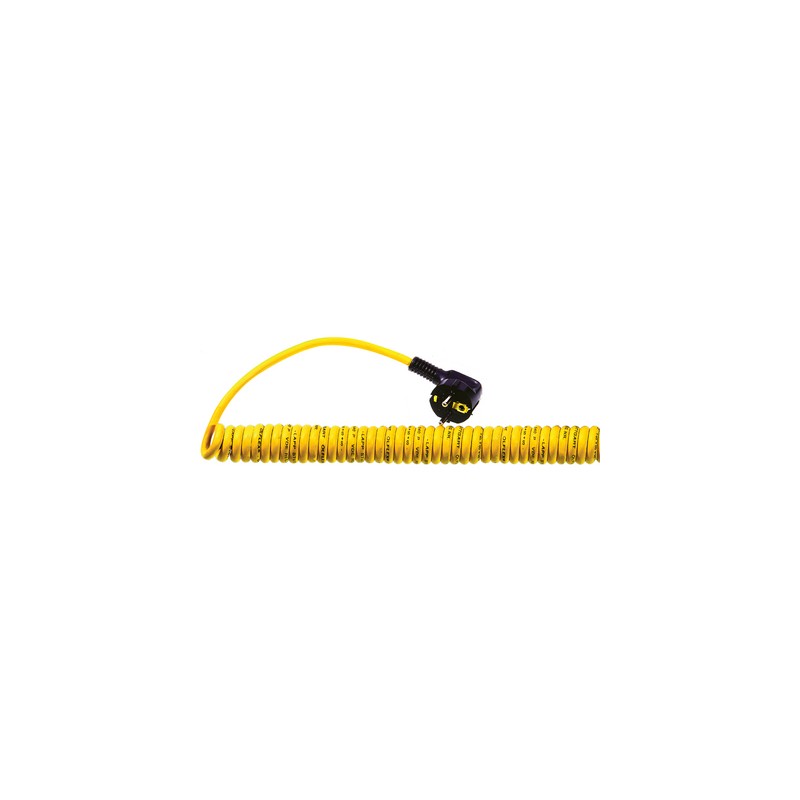

73220855 ÖLFLEX SPIRAL 540 P 3G1/300 SHOCKPLG LAPP ÖLFLEX SPIRAL 540 P 3G1/300 SHOCKPLG

Benefits

• Extension lengths of up to 3.5 times the unextended spiral length, high recoiling forces
• The signal colour of the outer sheath increases safety and visual perception
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Sheath is resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments

Application range

• Mobile electrical devices and apparatus
• Medical equipment

Product features

• Good resistance of the outer sheath to cutting and abrasion
• Outer sheath has high resistance to oil, low temperatures, microbes and hydrolysis
• Flexible down to -30°C
• 16-A connector with protection rating IP 20

Norm references / Approvals

• Plug: DIN VDE 620-1/standard sheet DIN 49441 R2

Product Make-up

• Cable: ÖLFLEX® SPIRAL 540 P based on ÖLFLEX® 540 P
• Strands of tinned-copper wires
• Core insulation: TPE
• Outer sheath made of special polyurethane
• Length of straight ends: 1st end = 200 mm with moulded angular earthing-type plug, 2nd end = 600 mm with 30 mm stripping
• Other solid lengths, end lengths and end forms available on request
• 2-pin, angular plug with twin earthed contact system, extruded

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000247
• ETIM 5.0 Class-Description: Spiralized cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000247
• ETIM 6.0 Class-Description: Spiralized cable

Core identification code

• HD 308/VDE 0293-308: 3-core with protective conductor

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Nominal voltage

• U0: 250 V AC

Test voltage

• 2000 V

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Flexible use: -30°C to +50°C
