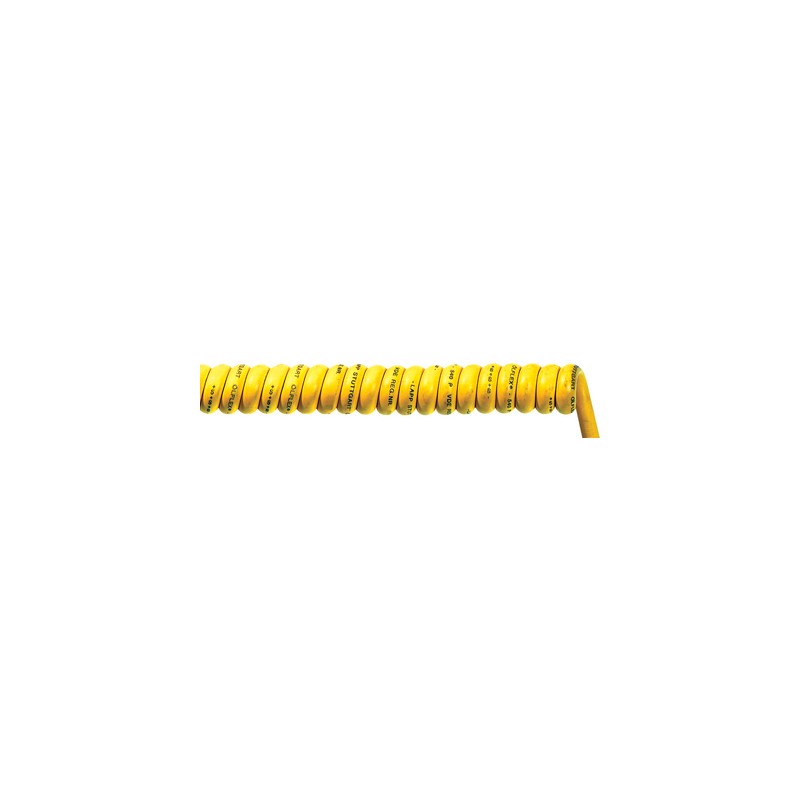

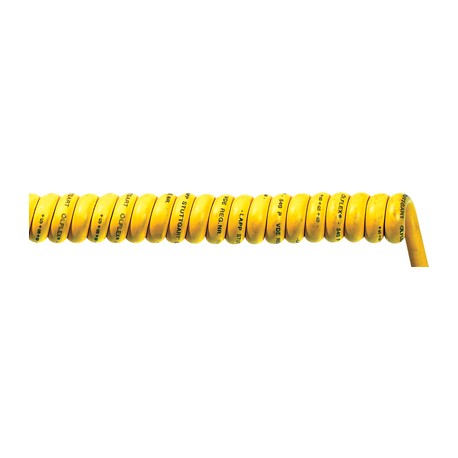

73220146 ÖLFLEX SPIRAL 540 P 2X1,5/1500 LAPP ÖLFLEX SPIRAL 540 P 2X1,5/1500

Benefits

• Extension lengths of up to 3.5 times the unextended spiral length, high recoiling forces
• The signal colour of the outer sheath increases safety and visual perception
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments

Application range

• Harsh conditions
• Mechanical engineering
• Construction industry
• Medical equipment
• In damp interiors or outdoors

Product features

• UV-resistant (but colour may change after some time)
• Halogen-free
• Good resistance of the outer sheath to cutting and abrasion
• High resistance to oil, low temperatures, microbes and hydrolysis
• Flexible down to -30°C

Product Make-up

• Strands of tinned-copper wires
• Core insulation: TPE
• Outer sheath made of special polyurethane
• Length of straight ends: 1st end = 200 mm, 2nd end = 600 mm
• Versions without the mandatory LAPP designation, but with other solid lengths, end lengths and end forms available on request

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000247
• ETIM 5.0 Class-Description: Spiralized cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000247
• ETIM 6.0 Class-Description: Spiralized cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Nominal voltage

• 0.75 - 1 mm²: U0/U: 300/500 Vac
• As from 1.5 mm²: U0/U = 450/750 Vac

Test voltage

• 3000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Flexible use: -30°C to +50°C
