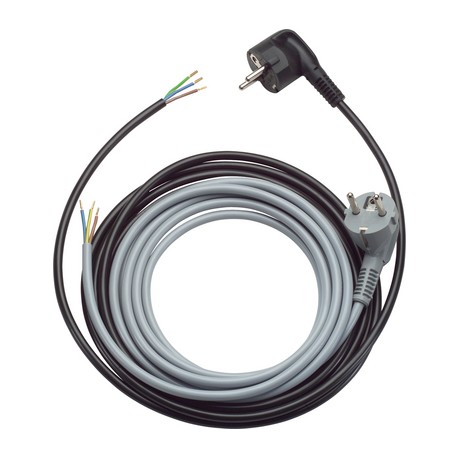

70261140 ÖLFLEX PLUG H05VV-F 3G1/2000 BK LAPP ÖLFLEX PLUG H05VV-F 3G1/2000 BK
70261140
ÖLFLEX PLUG H05VV-F 3G1/2000 BK
LAPP
ÖLFLEX PLUG H05VV-F 3G1/2000 BK
ÖLFLEX® PLUG H05VV-F Net Connection Cable*
Batteries, chargers and power cords > Power cord
Spiral cables
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

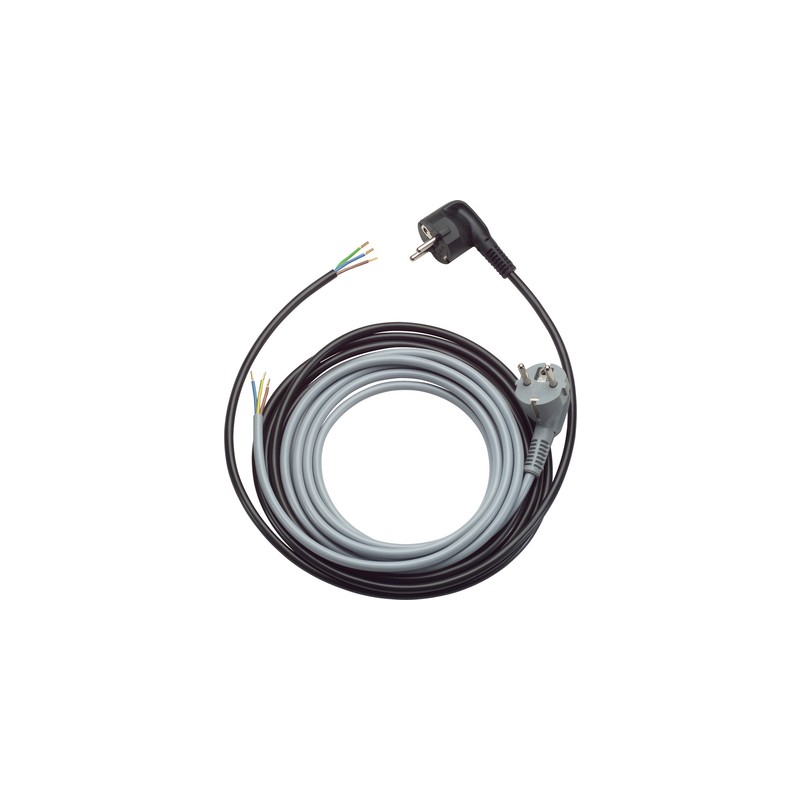

▲ÖLFLEX® PLUG H05VV-F Net connecting cable, PVC, 1-2,5mm², 1.end angular earthing-type plug with double earthed contact/2.end IEC coupling or dismantled
Other colours and designs are available upon request
Application range
- Electrical devices
Product features
- For additional information regarding international plugs, please refer to our cable configurator at www.lappkabel.de
- Apart from the cable related application restrictions to be paid attention to according to the application standard EN 50565-2 for this PVC cable H05VV-F, the fact that brighter outer sheath colours deviating from black significantly reduce the UV resistance of the outer sheath and, thus, the outdoor usability of the entire, finished cable at direct sun irradiation has to be respected, too
Product Make-up
- 1st end: Gated, rectangular earthing-type plug with double earthing contact
- 2nd end: straight, 3-pin IEC coupling, moulded
- Alternative to Insulating tapes and shrink tubings
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001576
- ETIM 5.0 Class-Description: Power cord
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001576
- ETIM 6.0 Class-Description: Power cord
Core identification code
- According to VDE 0293-308 (table T9)
Conductor stranding
- Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Nominal voltage
- U0: 250 V AC
Test voltage
- 2000 V
Protective conductor
- G = with GN-YE protective conductor
Temperature range
- 5°C to 60°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 70261140 ÖLFLEX PLUG H05VV-F 3G1/2000 BK 70261140 EN_70261146.pdf | 495 Kbytes |
|
