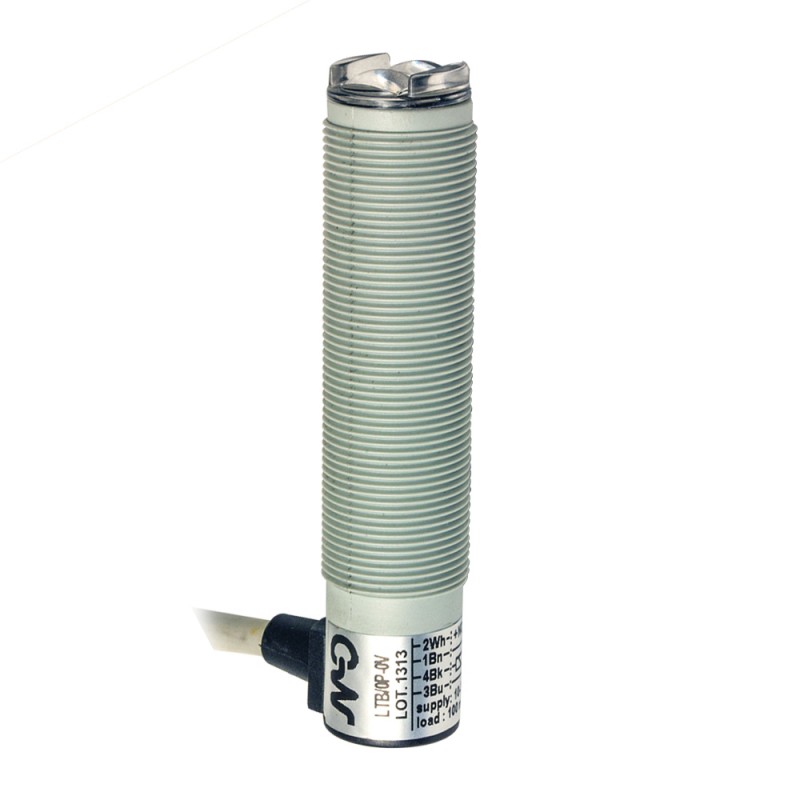

LDLU/0P-0V MICRO DETECTORS Photoelectric sensor Luminescent scanner M18 PNP plug M12 pig-tail
LDLU/0P-0V
MICRO DETECTORS
Photoelectric sensor Luminescent scanner M18 PNP plug M12 pig-tail
LDLU/0P-0V Photoelectric sensor Luminescent scanner M18 PNP conn. M12 pig-tail
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 12mm (con STF-12)25mm (con SFT-25) | |
| Thermal drift of Sr | ≤ 10% | |
| Spot dimension | Ø 1mm (with STF-12)Ø 0,8mm (with SFT-25) | |
Outputs
| Output type | PNP | |
| Output Function | LO/DO | |
| Switching frequency | 10 kHz | |
| Response time | 50 µs | |
Electrical data
| Operating Voltage | 10 … 30Vdc | |
| No-Load supply current | 40mA | |
| Load current | 100mA | |
| Leakage current | ≤ 10µA | |
| Output voltage drop | ≤ 1,2V @ Iload=100mA | |
| Max ripple content | < 10% | |
| LED indicators | yellow (output state)green (supply) | |
| Time delay before availability | < 200ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Emission | UV | |
| Interference to external light | 3000 lux (incandescent lamp)10000 lux (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M18 | |
| Housing Material | PBT | |
| Connections | pigtail 200mm + M12 plug | |
| Active Head Material | PMMA | |
| Tightening torque | 1 Nm | |
| Operating temperature | -5°C … +55°C (without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | Conforming with EMC directive according with EN60947-5-2 | |
| Degree of protection | IP65 | |
Accessories
| Supplied Accessories | 2 x nuts | |
| Accessories to be ordered separately | Focalizer STF-12Focalizer STF-25 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
