63107020 PIN CABLE LUGS L-RAP LAPP PIN CABLE LUGS L-RAP

Benefits

• EASY-ENTRY funnel shape of the plastic sleeve enables simple, fast and safe insertion of the conductor
• No risk of bent and crushed cables
• For good strength and improved current conduction

Application range

• Manufacturing of control cabinets and equipment

Product features

• Hard-soldered cable lug that can be pressed in any position
• For first-class connection with simple operating principle
• Electrolytic tinning for max. corrosion protection
• Flat receptacle material in contact pressing is double-folded and hard-soldered
• Metal sleeves with internal corrugation

Norm references / Approvals

• File Number E334109, see table

Note

• Butt connector: Solid conductors and fine stranded wires and diverse cross-sections can be crimped together

Design

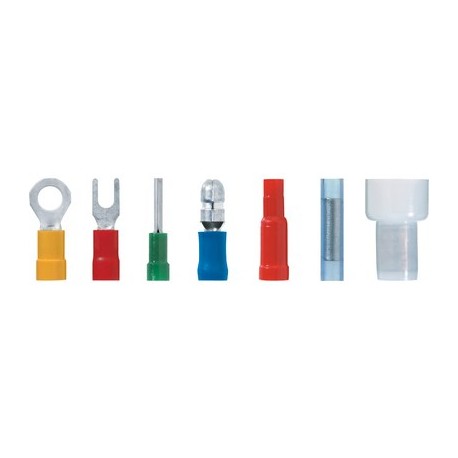

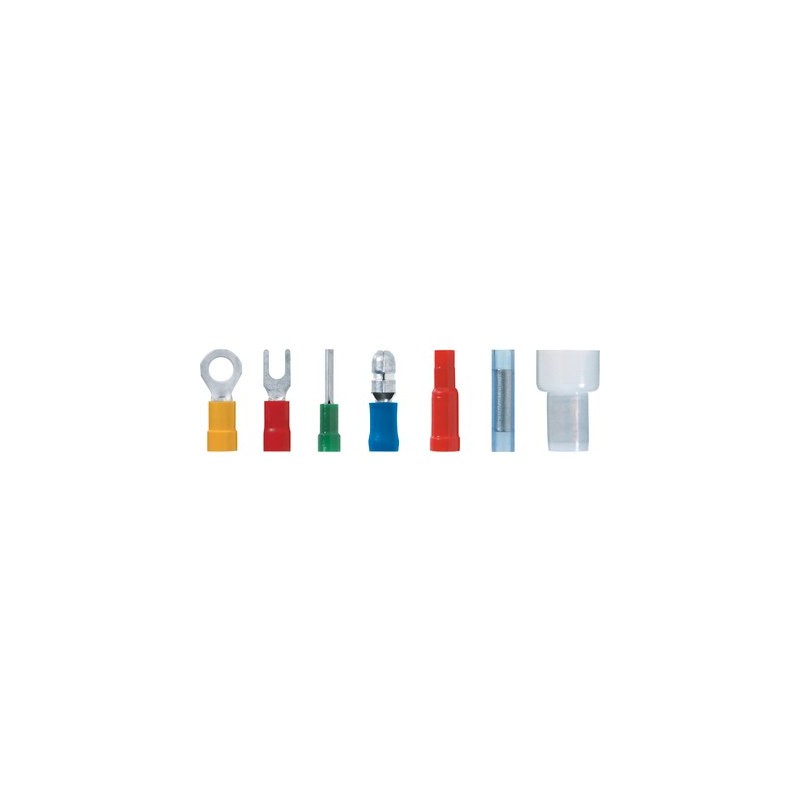

• 1 = ring cable lugs2 = forked cable lugs3 = pin cable lugs4 = circular connector5 = connector sleeve6 = butt connector7 = end connector(see pictures- from left to right)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001052
• ETIM 5.0 Class-Description: Solderless copper terminals for copper conductors

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001052
• ETIM 6.0 Class-Description: Solderless copper terminals for copper conductors

General

• Other sizes and colours (also DIN) are available upon request
• Halogen-free

Material

• High-quality electrolytic copper for good conductivity
• PA (UL 94 V0)
  PC (UL 94 V2)
  see datasheet

Temperature range

• PA: -20°C up to +105°C
  PC: -20°C up to +100°C
