61803873 SILVYN UI COMPACT M20x1,5/2 NPB LAPP SILVYN UI COMPACT M20x1,5/2 NPB
61803873
SILVYN UI COMPACT M20x1,5/2 NPB
LAPP
SILVYN UI COMPACT M20x1,5/2 NPB
SILVYN
Protective hose systems > Screw connection for protective metallic hose
SILVYN cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

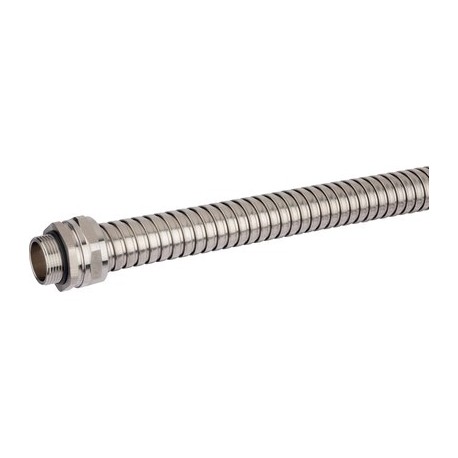

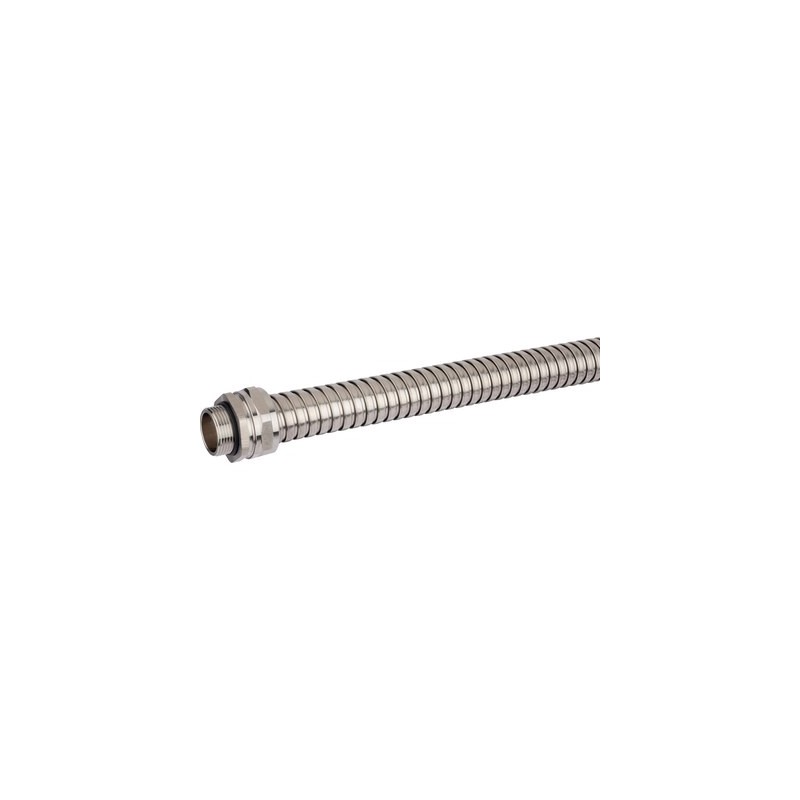

▲SILVYN® UI COMPACT M - nickel-plated brass conduit fitting for use with SILVYN® UI 511
Space-saving due to compact dimensions
Benefits
- High chemical-resistance
- For high mechanical stress
- High tensile strength
- Corrosion-resistant
Application range
- In combination with protective conduit:
- SILVYN® UI 511
Product Make-up
- Metric connection thread
- Hexagonal collar
- Threaded sleeve
- Cap nut
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001180
- ETIM 5.0 Class-Description: Screw connection for protective metallic hose
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001180
- ETIM 6.0 Class-Description: Screw connection for protective metallic hose
Material
- Stainless steel AISI 304
DW no. 1.4301 - Nickel-plated brass
Protection rating
- IP 40
Temperature range
- -45°C to +105°C (with O-Ring)
-55°C to +260°C (without O-Ring)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 61803873 SILVYN UI COMPACT M20x1,5/2 NPB 61803873 EN_61803878.pdf | 448 Kbytes |
|
