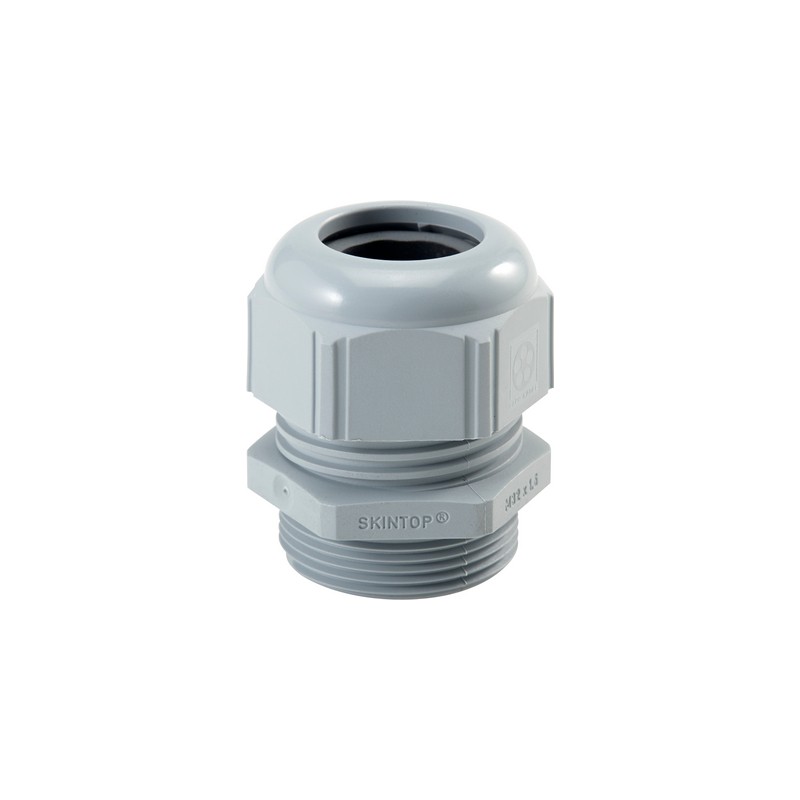

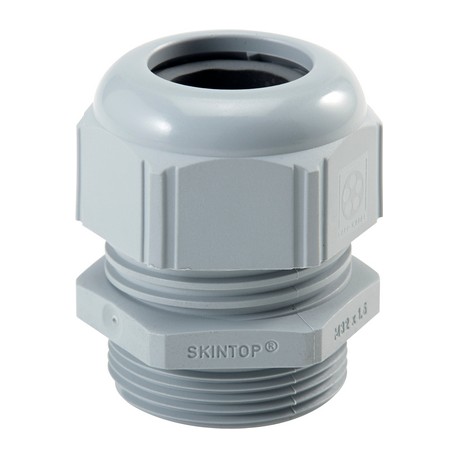

53017240 SKINTOP ST ISO M 25x1,5 XL BK LAPP SKINTOP ST ISO M 25x1,5 XL BK

Benefits

• High oil-resistance for maximum reliability
• Permanent vibration protection
• Wide, variable clamping ranges
• Optimum strain relief
• Various accessories (e.g. multiple sealing inserts)

Application range

• Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
• Machine and equipment manufacturing
• Photovoltaic
• Automation technology
• Offshore platforms, equipment and shipyards

Norm references / Approvals

• UL File Nr. E79903
• GGVS: TÜ.EGG.020-95

Product Make-up

• Metric connection thread acc. to DIN EN 60423
• Basis for technical information DIN IEC 62444

Note

• SKINTOP® ST(R) M ISO types have an extra-long connection thread
• SKINTOP® ST(R) M ISO versions with extra-long connection thread, see table, no DNV approval

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000441
• ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000441
• ETIM 6.0 Class-Description: Cable screw gland

Caution

• Refer to Appendix T21 for the installation dimensions and torques
• Size M 40 x 1,5 up tp M 63 x 1,5 with O-ring

Colour delivered

• Silver grey (RAL 7001)
  Light grey (RAL 7035)
  Black (RAL 9005), UV-resistant

Material

• Body: Polyamide
  Seal: CR

Tests

• GGVS: TÜ.EGG.020-95

Protection rating

• IP 66
  IP 68 - 5 bar
  IP 69
• NEMA Type 1, 12

Temperature range

• Fixed: -40°C to +100°C
• Dynamic: -20°C to +100°C
