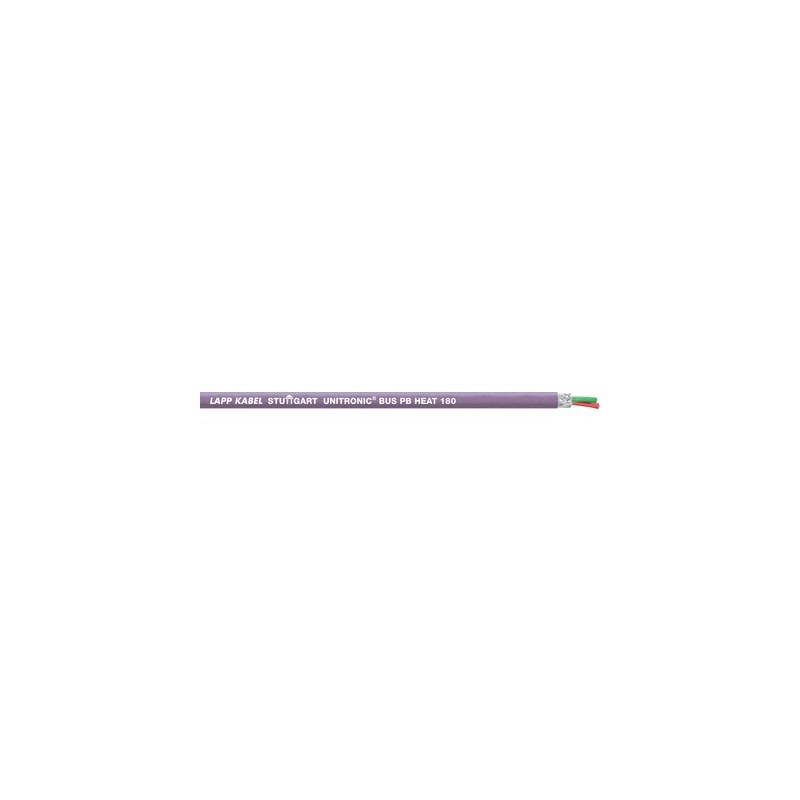

3031981 UNITRONIC BUS PB HEAT 180 1X(2X0,64) LAPP UNITRONIC BUS PB HEAT 180 1X(2X0,64)
3031981
UNITRONIC BUS PB HEAT 180 1X(2X0,64)
LAPP
UNITRONIC BUS PB HEAT 180 1X(2X0,64)
UNITRONIC® BUS PB HEAT 180
Cables > Data and communication cable
UNITRONIC BUS cabling
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- no need for additional cable protection against high temperatures
- High temperature resistance
Application range
- Fixed Installation
- For use in high temperature areas with up to 180 °C
Product features
- High oil-resistance
Product Make-up
- Solid and bare copper conductor
- Wire insulation Fluorethylen
- Overall screening with copper braid and plastic-laminated aluminium foil
- Outer sheath: FEP, violet (RAL 4001)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000830
- ETIM 5.0 Class-Description: Data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000830
- ETIM 6.0 Class-Description: Data cable
Mutual capacitance
- approx. 28 nF / km
Peak operating voltage
- (not for power applications) 250 V
Minimum bending radius
- Repeated: 7 x Outer Diameter
Single: 5 x Outer Diameter
Test voltage
- 3600 V DC (3 sec.)
Characteristic impedance
- (3 - 20 MHz): 150 ± 15 Ohm
Temperature range
- -50 to +180°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 3031981 UNITRONIC BUS PB HEAT 180 1X(2X0,64) 3031981 EN_3031981.pdf | 310 Kbytes |
|
