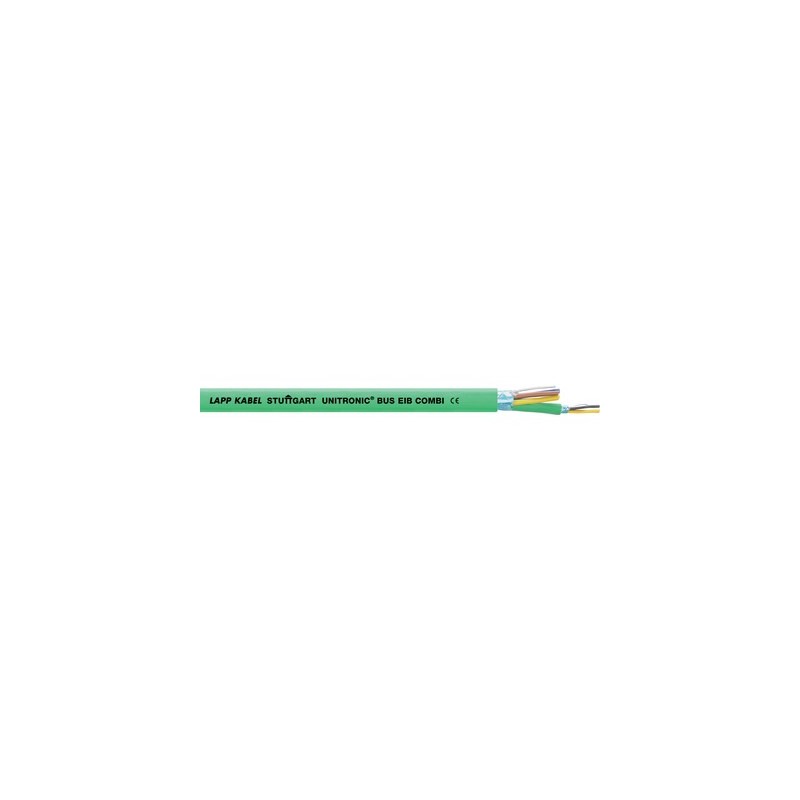

2170242 UNITRONIC BUS EIB COMBI 2X2X0,8+3X1,5 LAPP UNITRONIC BUS EIB COMBI 2X2X0,8+3X1,5

Application range

• The product is designed for use in building management, e.g. for decentralised control of lighting, heating, air-conditioning, ventilation, energy management, blinds, time management, locking systems etc.
• The cable can be laid on or under plaster; in pipes, cable ducts; in dry, damp or wet environments.
• EIB installation mainly consists of sensors/command-transmitters (e.g. light barriers, switches, thermostats, infrared, wind meters, timers), and actuators (e.g. engines, heaters, ventilators, lights, blinds).
• KNX technology was formed from the merging of three established European bus standards: EIP, EHS (household appliances and consumer electronics) and Batibus (heating/ventilation/air conditioning)

Product features

• Serial data transmission
• EIB cable has been tested at 4 kV (1 min.) in a water bath

Product Make-up

• Screened installation cable based on type J-Y(ST)Y according to DIN VDE 0815
• UNITRONIC® BUS EIB
  Bare solid copper wire
  2x2x0,8: red and black, white and yellow
  Core insulation: PVC
  Overall aluminum foil
  Outer sheath: PVC, green (RAL 6017)
• UNITRONIC® BUS EIBCOMBI
  Bare solid copper wire
  Core insulation: PVC
  2x2x0,8: red und black, white and yellow
  3x1,5: brown, blue, green/yellow
  Overall aluminum foil
  Outer sheath: PVC, green (RAL 6017)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Mutual capacitance

• (800 Hz) max. 100 nF/km

Peak operating voltage

• (not for power applications) 250 V

Conductor resistance

• (loop): max. 73.2 ohm/km

Minimum bending radius

• Fixed installation:
  5 x outer diameter

Test voltage

• Core/core: 4000 V

Temperature range

• Fixed installation: -30°C to +70°C
